Ovulation ultrasound in mares and camels

• The veterinary practitioner and lay ultrasonographer are often faced with ovarian images which have the potential to perplex, as they fall outside what the imagination has created to be a “normal” appearance for the stage being evaluated. Go through the pre-ovulatory stages of a follicle, ovulation itself and the development of the corpus haemorrhagic (“CH”) and/or corpus luteum (“CL). In addition, abnormal ovulations are imaged and reviewed, including Haemorrhagic Anovulatory Follicles (“HAF” - also known as “Anovulatory Haemorrhagic Follicles” or “AHF”) and Luteinized Unruptured Follicles (“LUF”) as well as an evaluation of a large variety of different appearances of the normal, along with explanations.

•

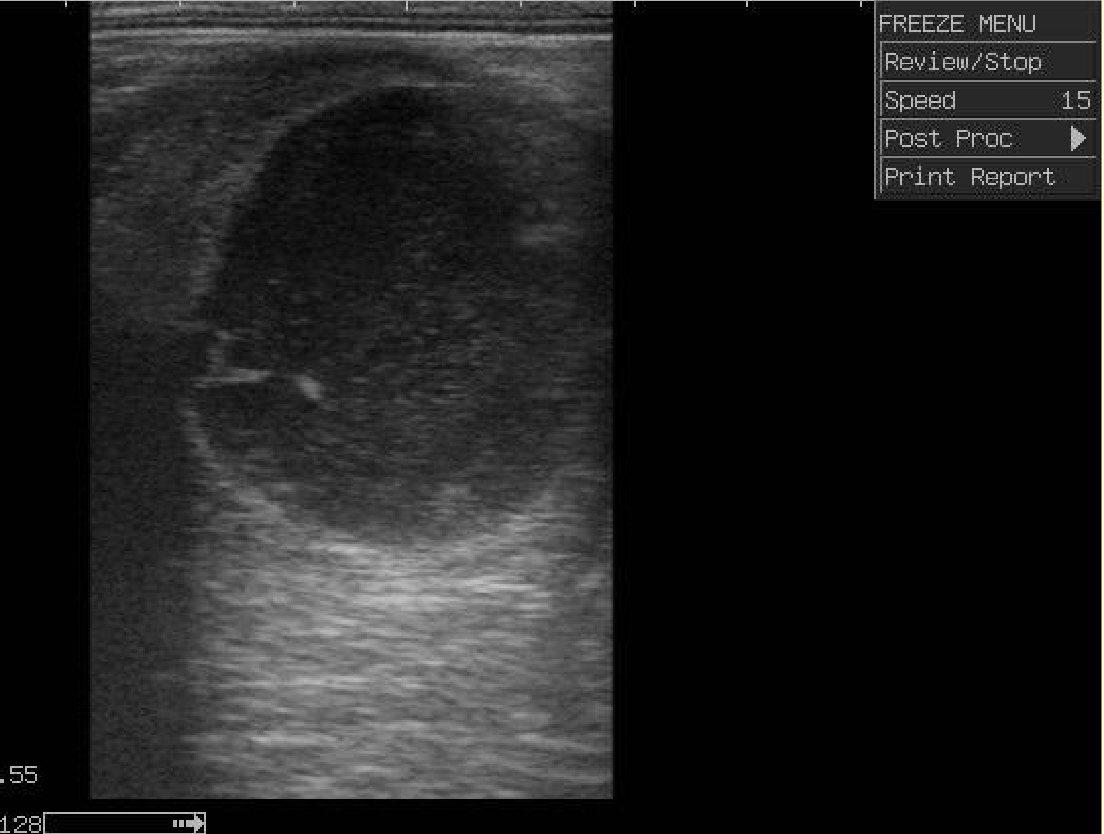

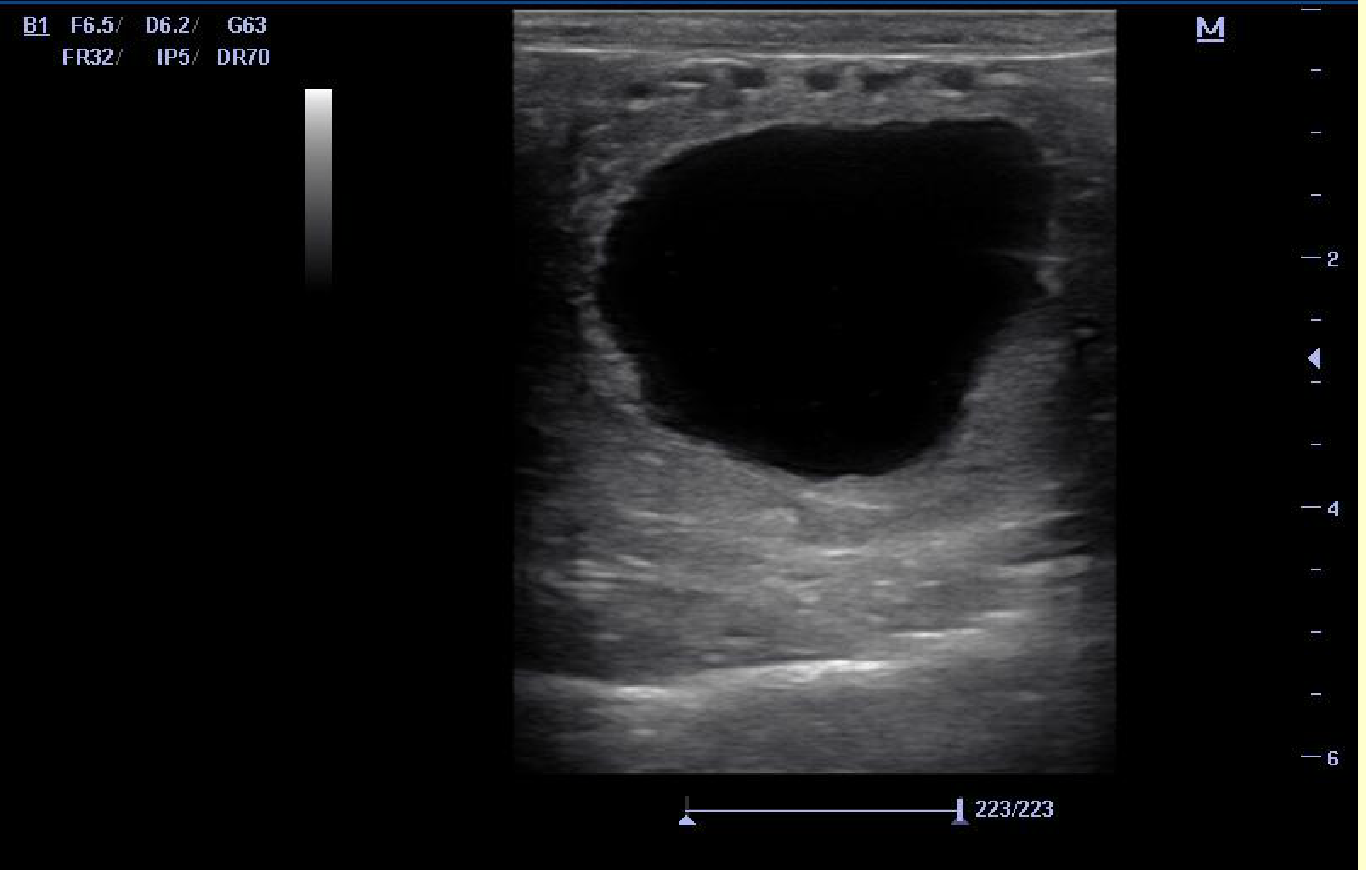

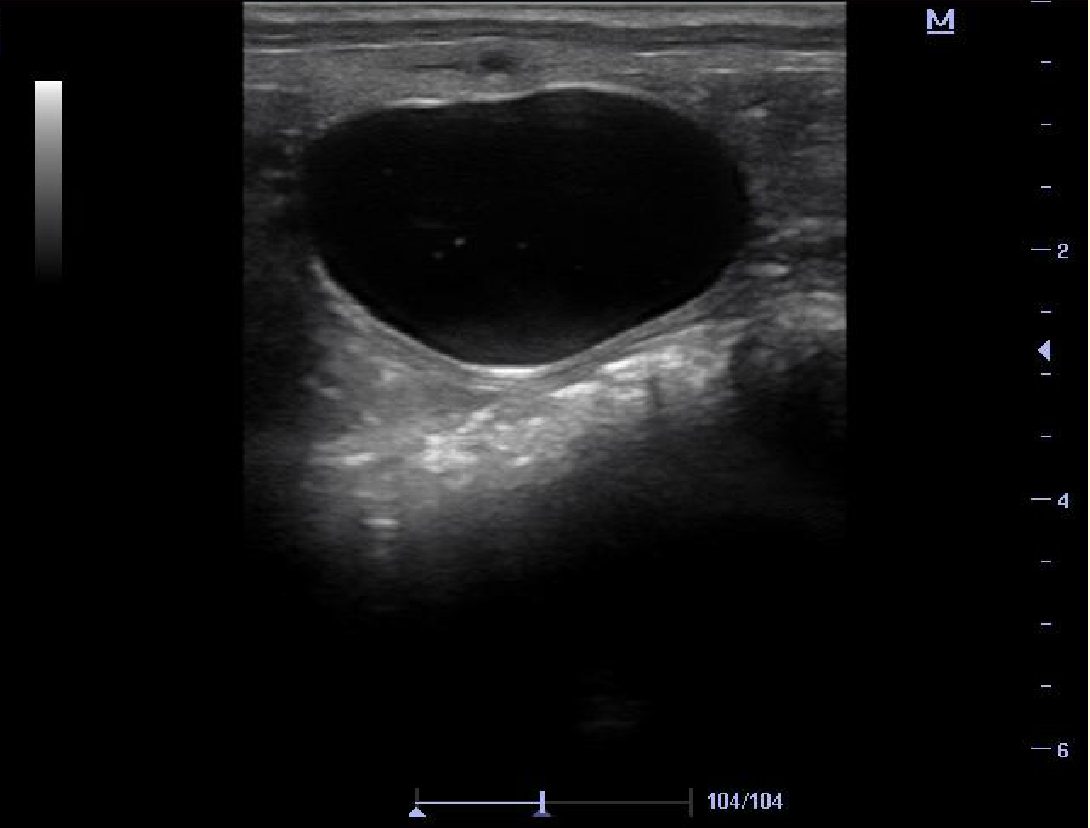

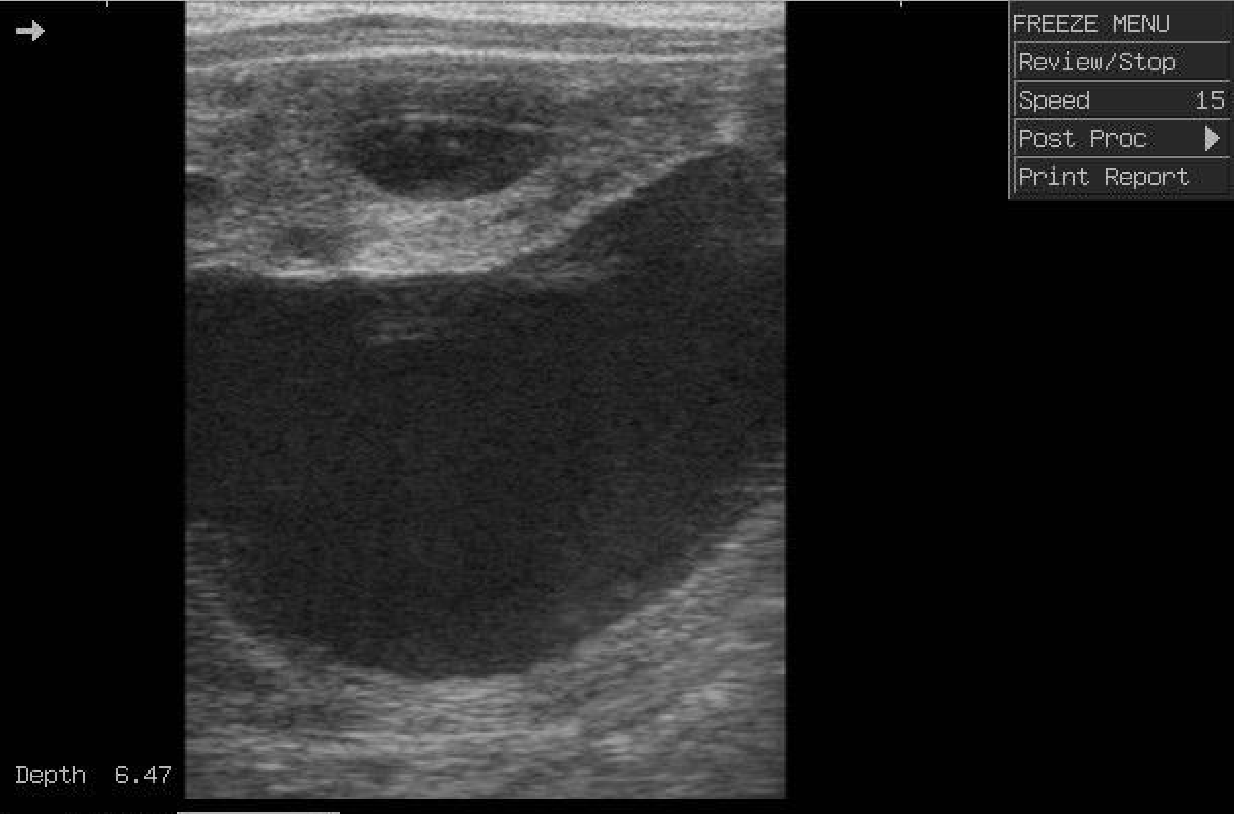

• Preovulatory follicle

  •
  •
  •
  •

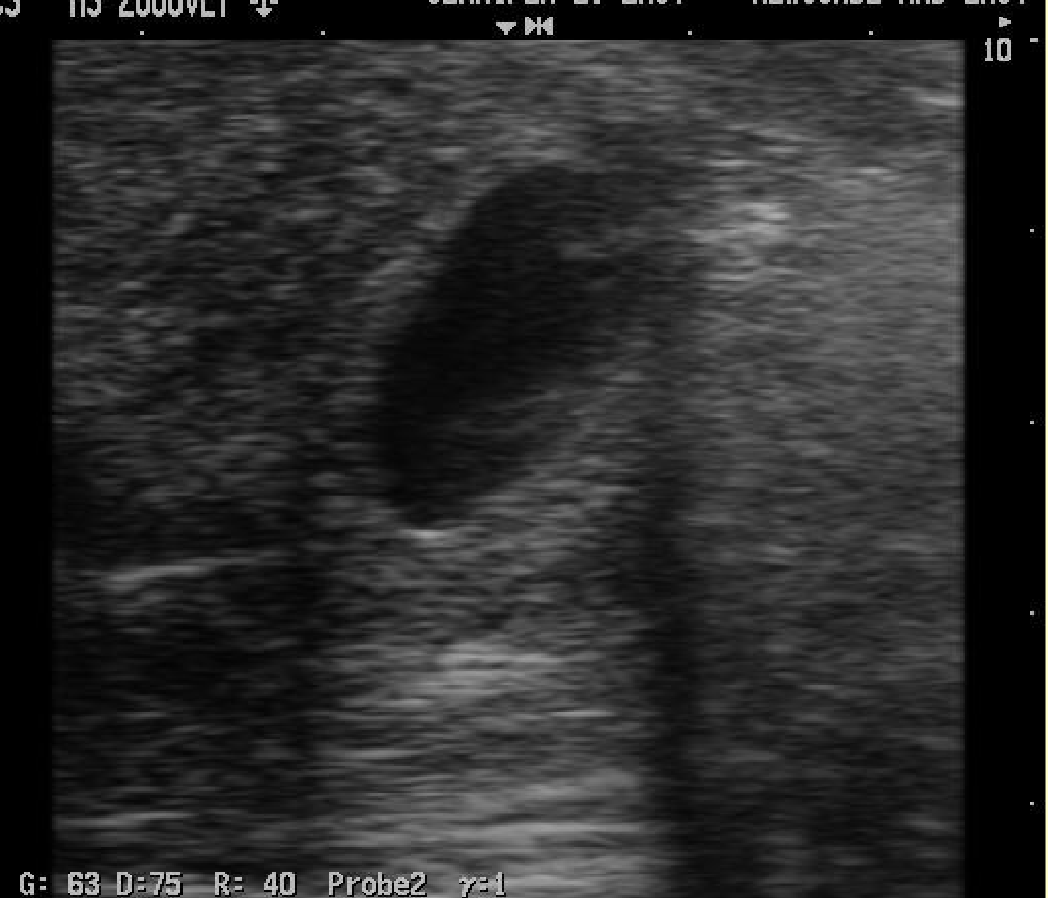

  • Beginning of collapse

  • 7 seconds later
    •

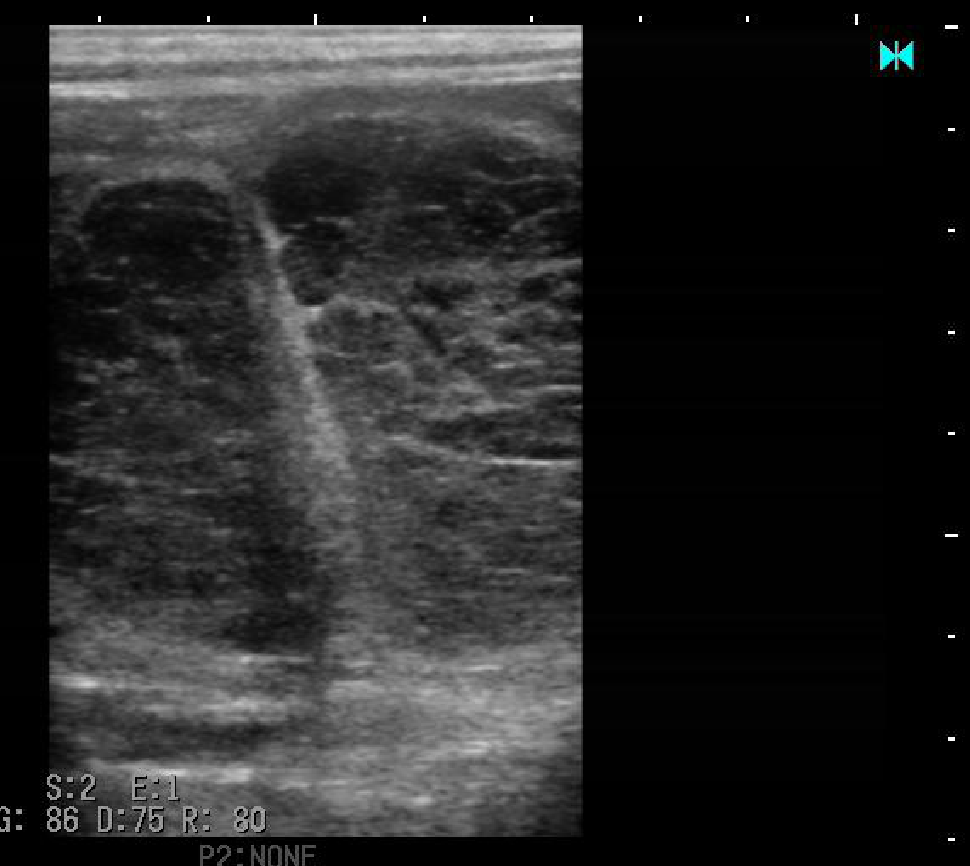

• Rent in follicle wall

  •

•

• Ovulated 3 hours

  •

• Ovulated 3.5 hours

•

• Ovulated 4 hours





•

• Ovulated 10 hours earlier


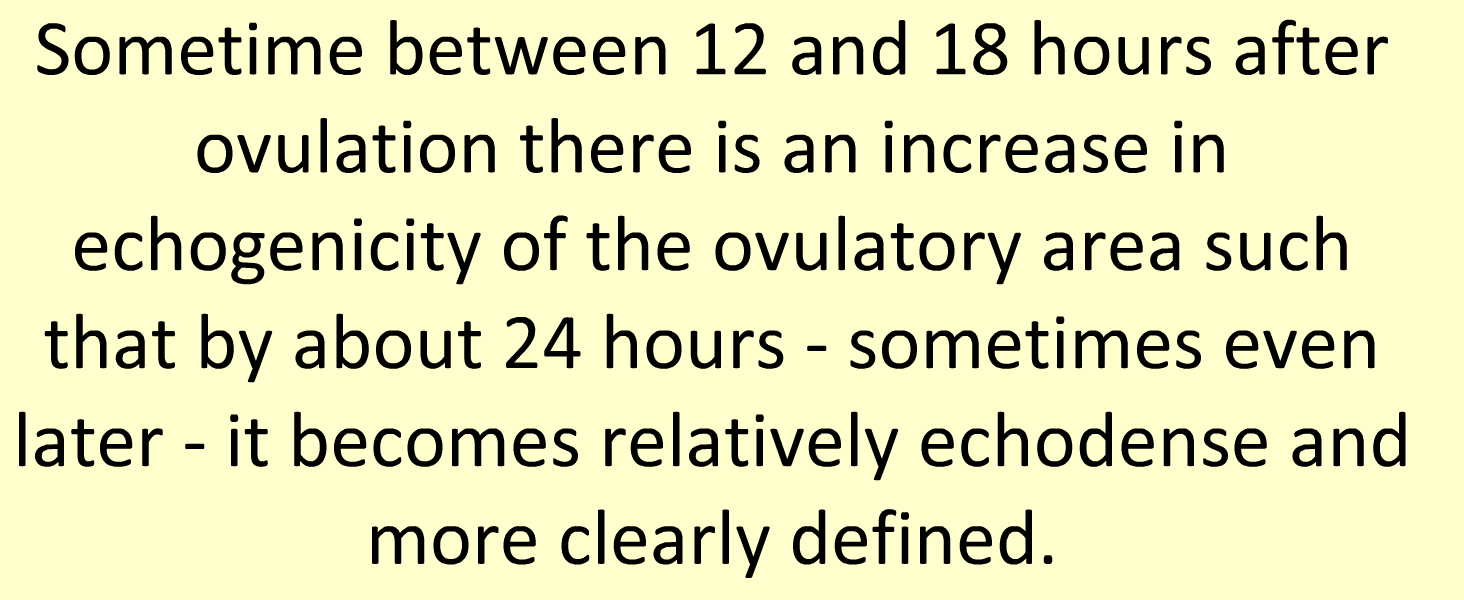

• Ovulated 12h




• Twin Follicles ovulated 12h and 4 hours


• Ovulated 13h


•

• Ovulated 14h


• Ovulated 18 hours, still similar to fresh ovulation


•

• Ovulated 20h







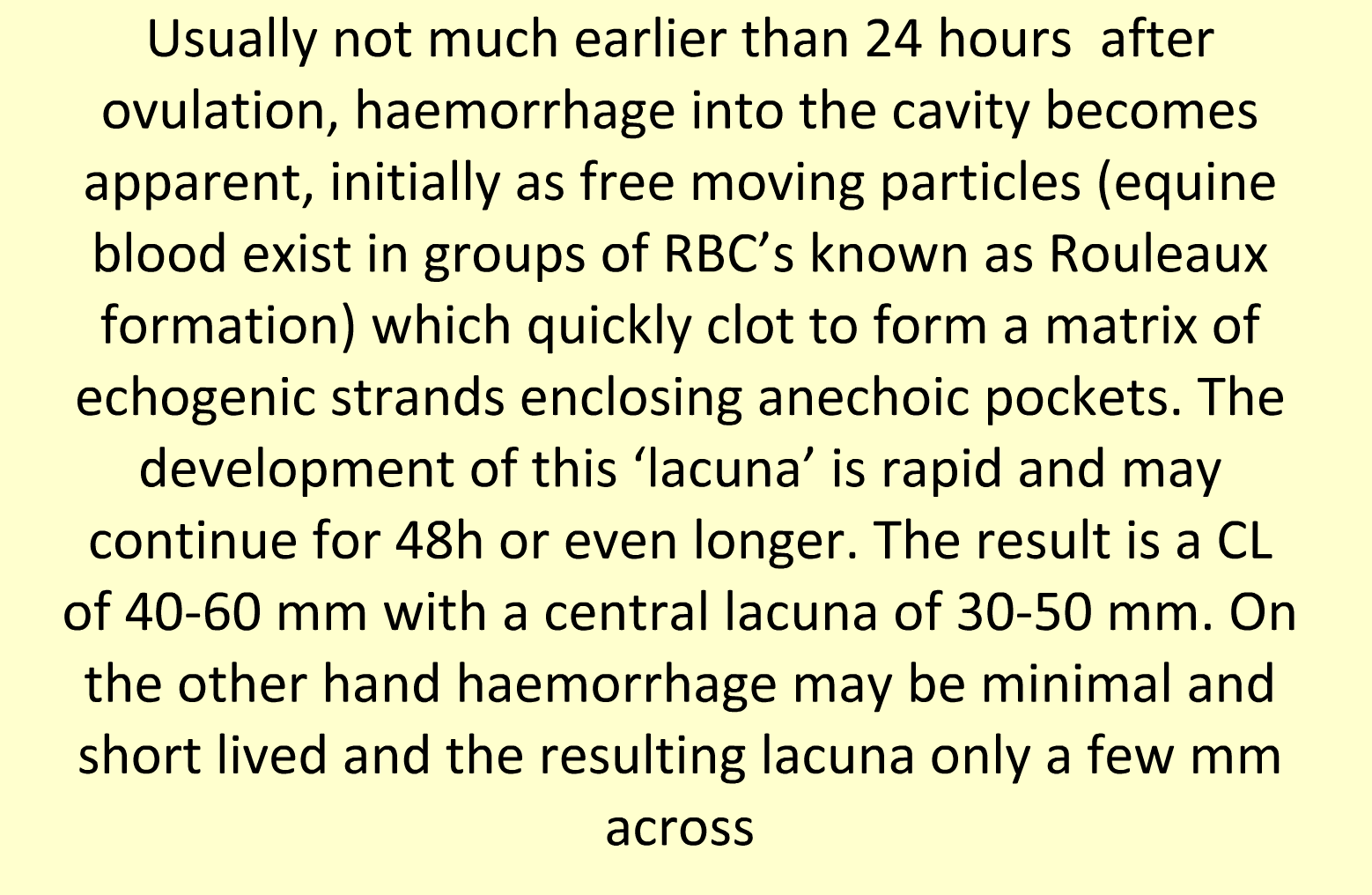

• Ovulated 24h


•

• Ovulated 28h






• ovulated 29h







  Ovulated 30h


• Ovulated 32h


• Ovulated 36h


• Ovulated 38h


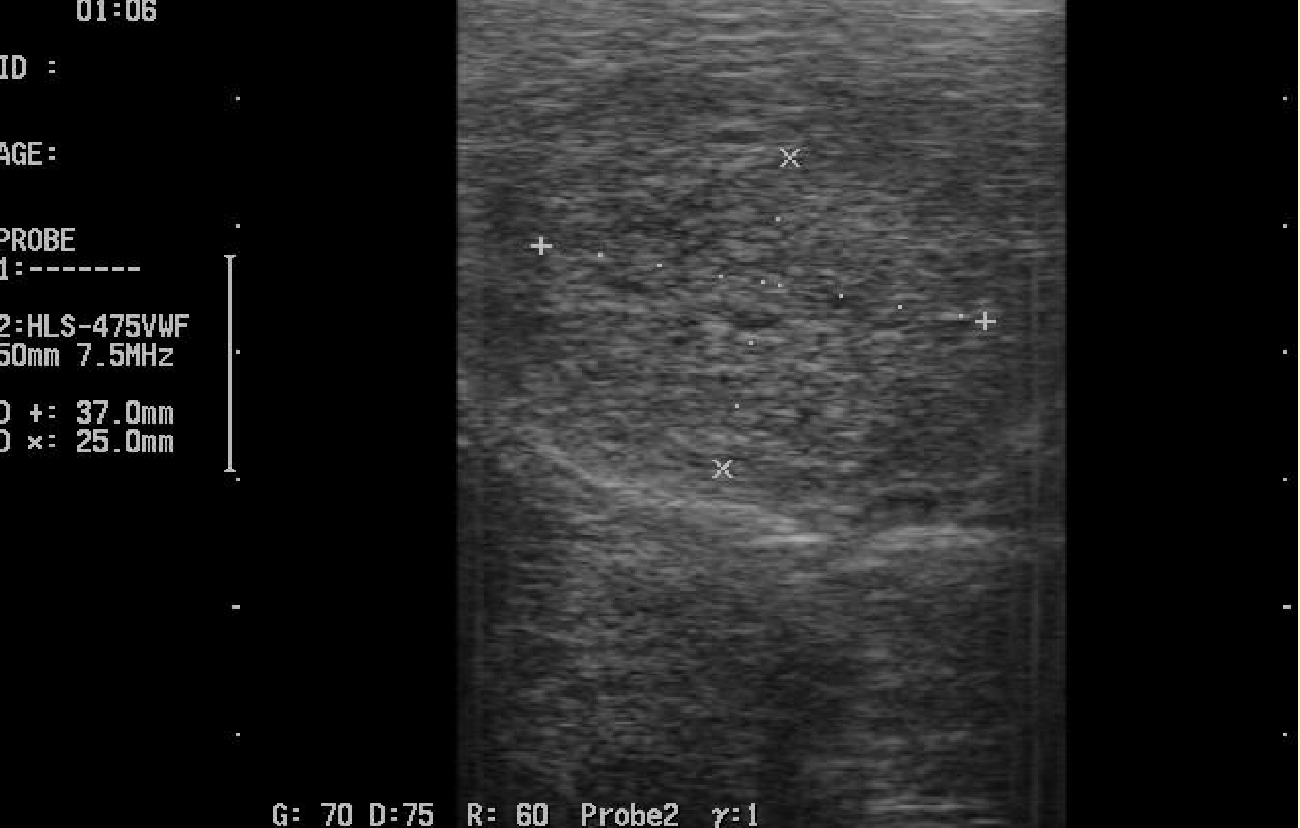

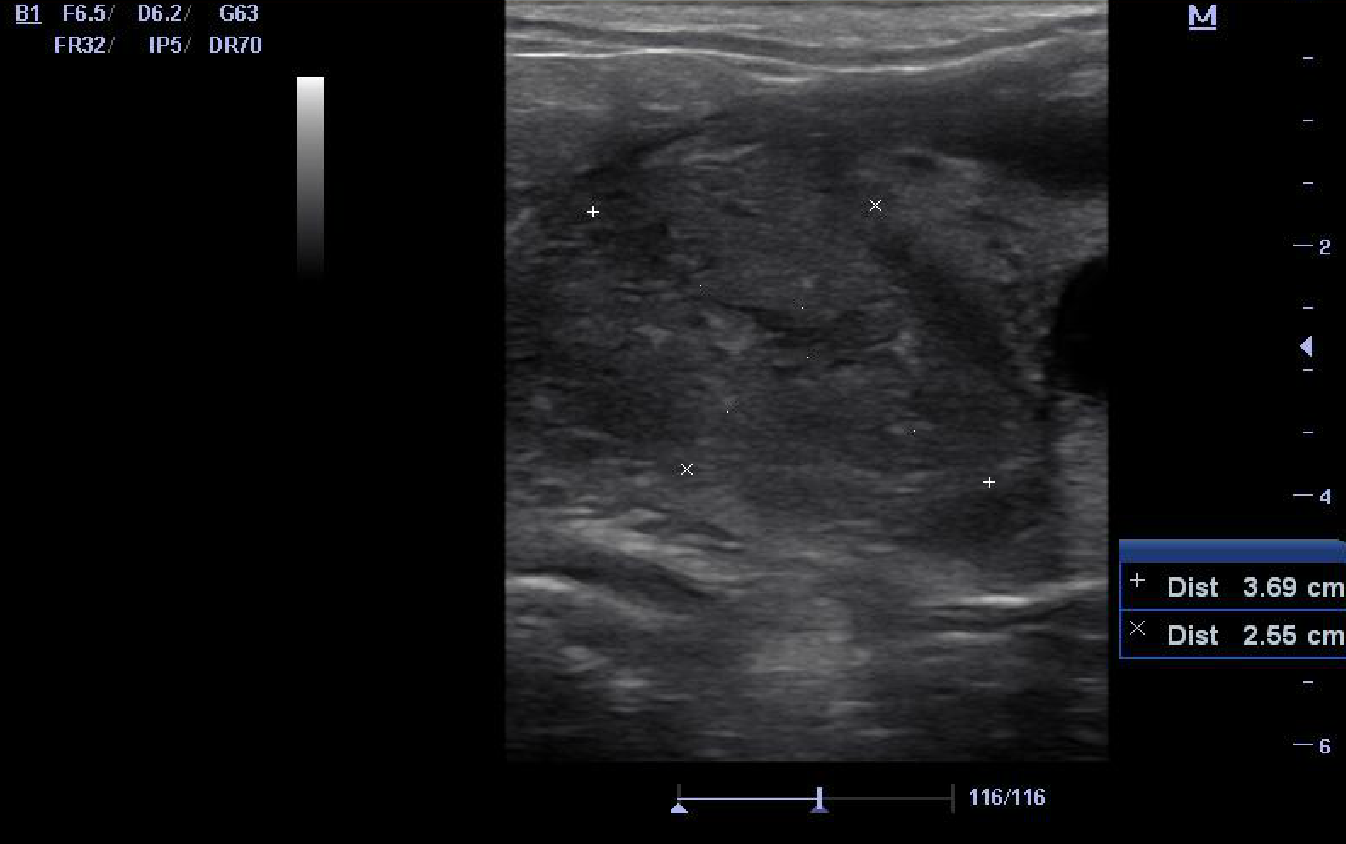

• 45h CL


• Ovulated 46h


•

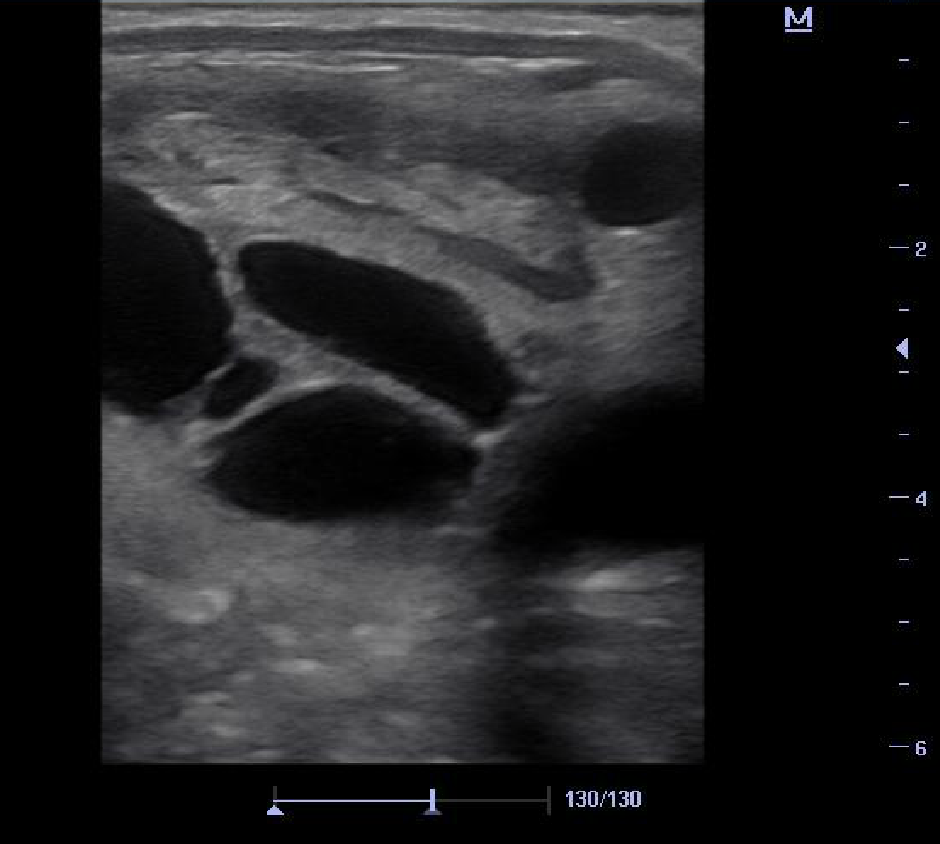

• Normal Follicle in early collapse


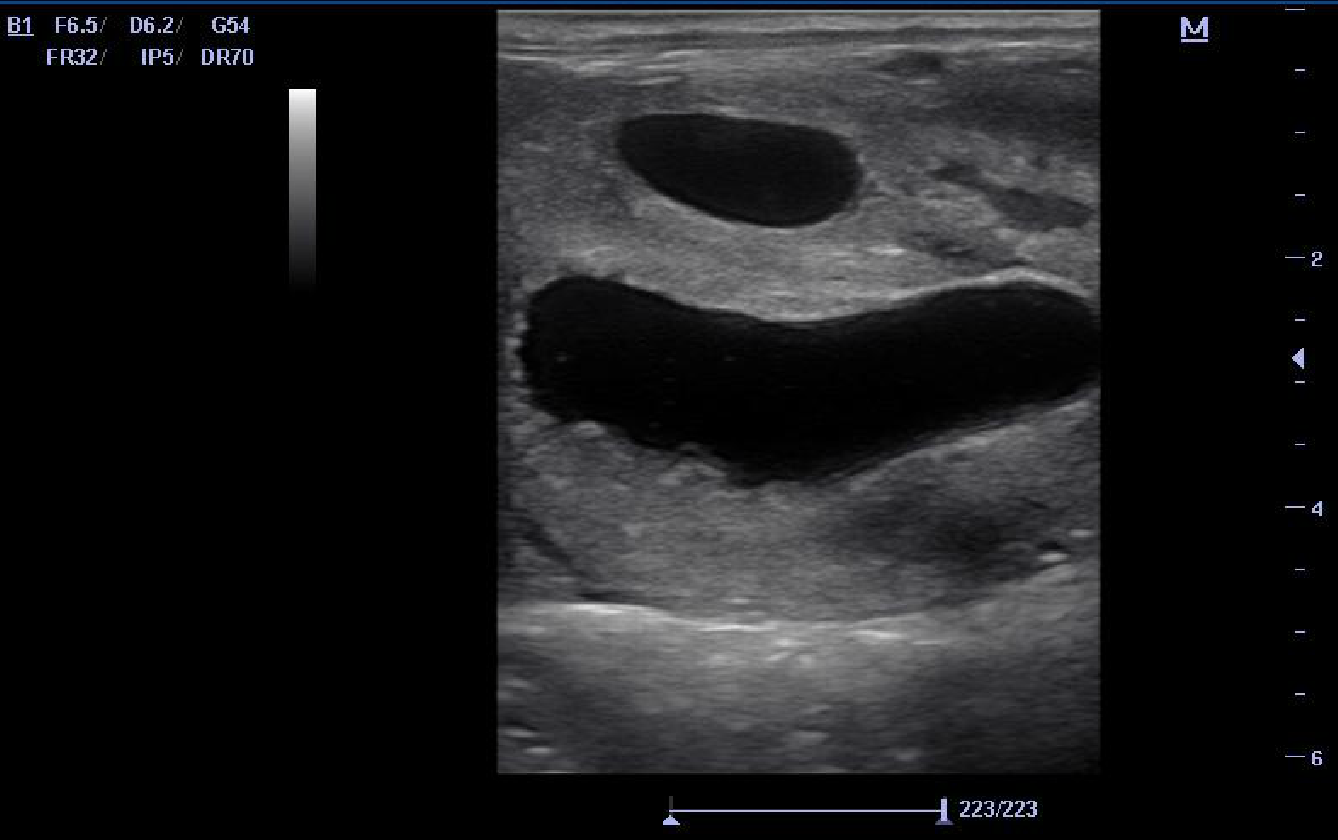

• Partially collapsed adjacent to another follicle


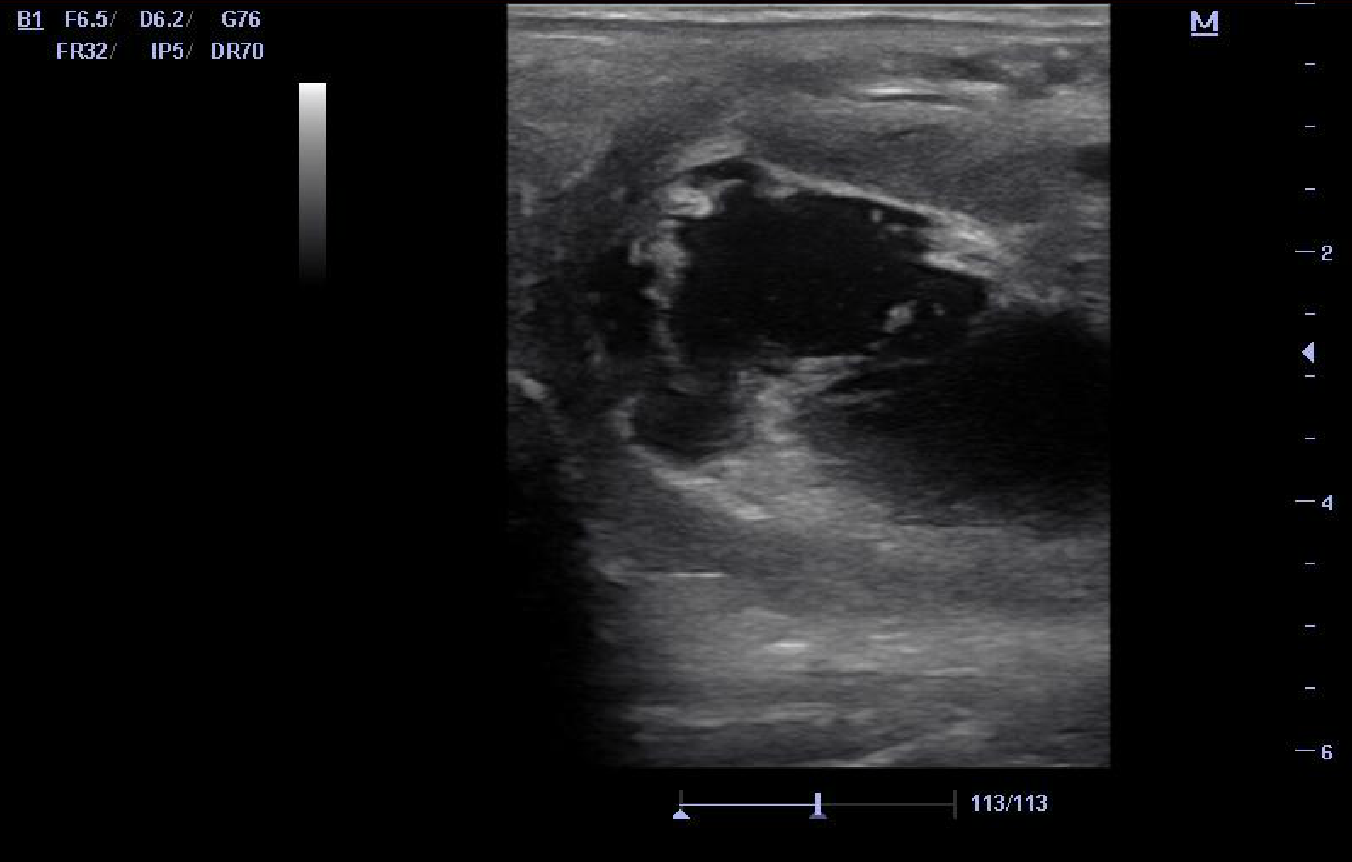

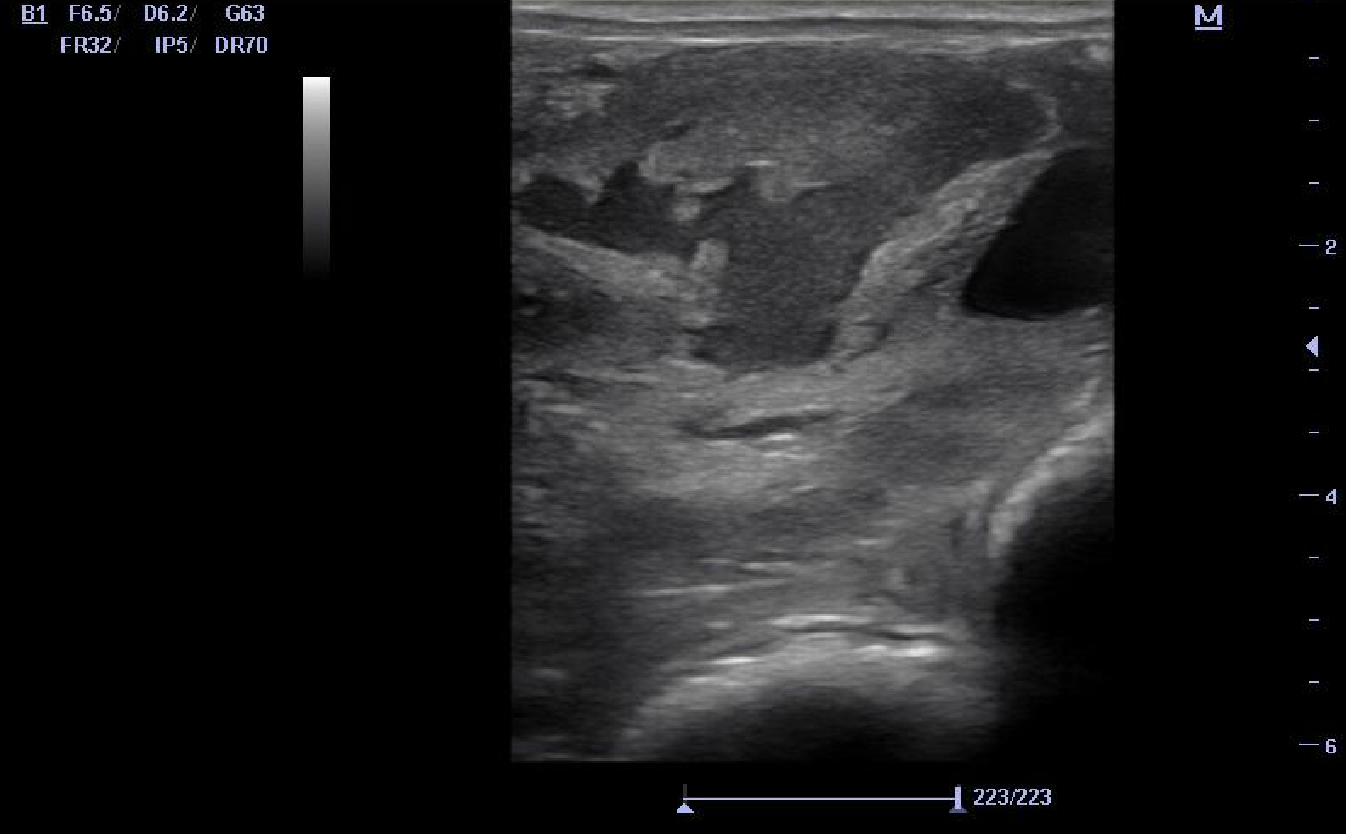

• Ovulating: fluid outside rent in wall

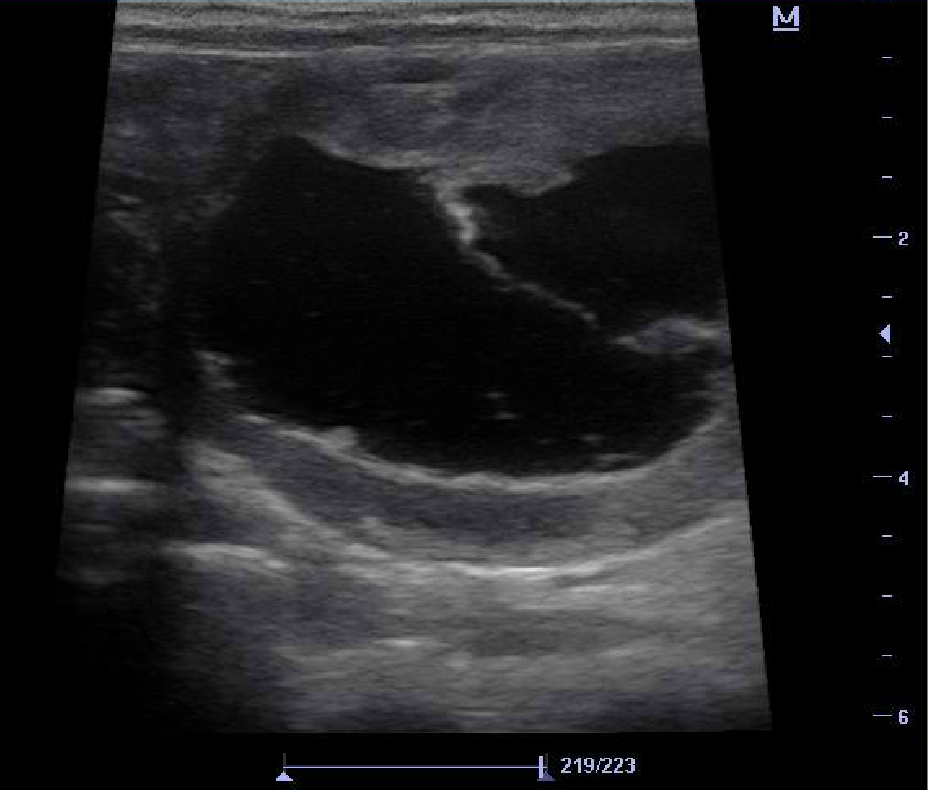

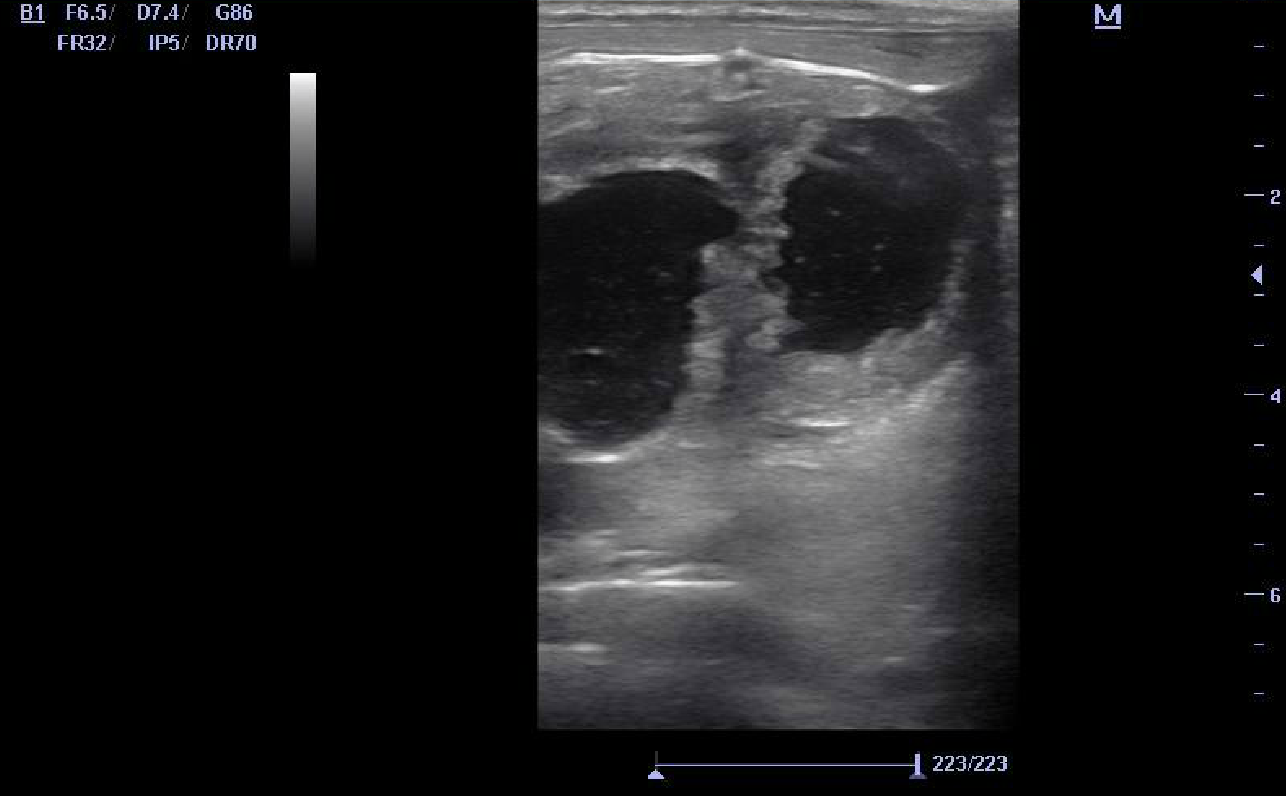

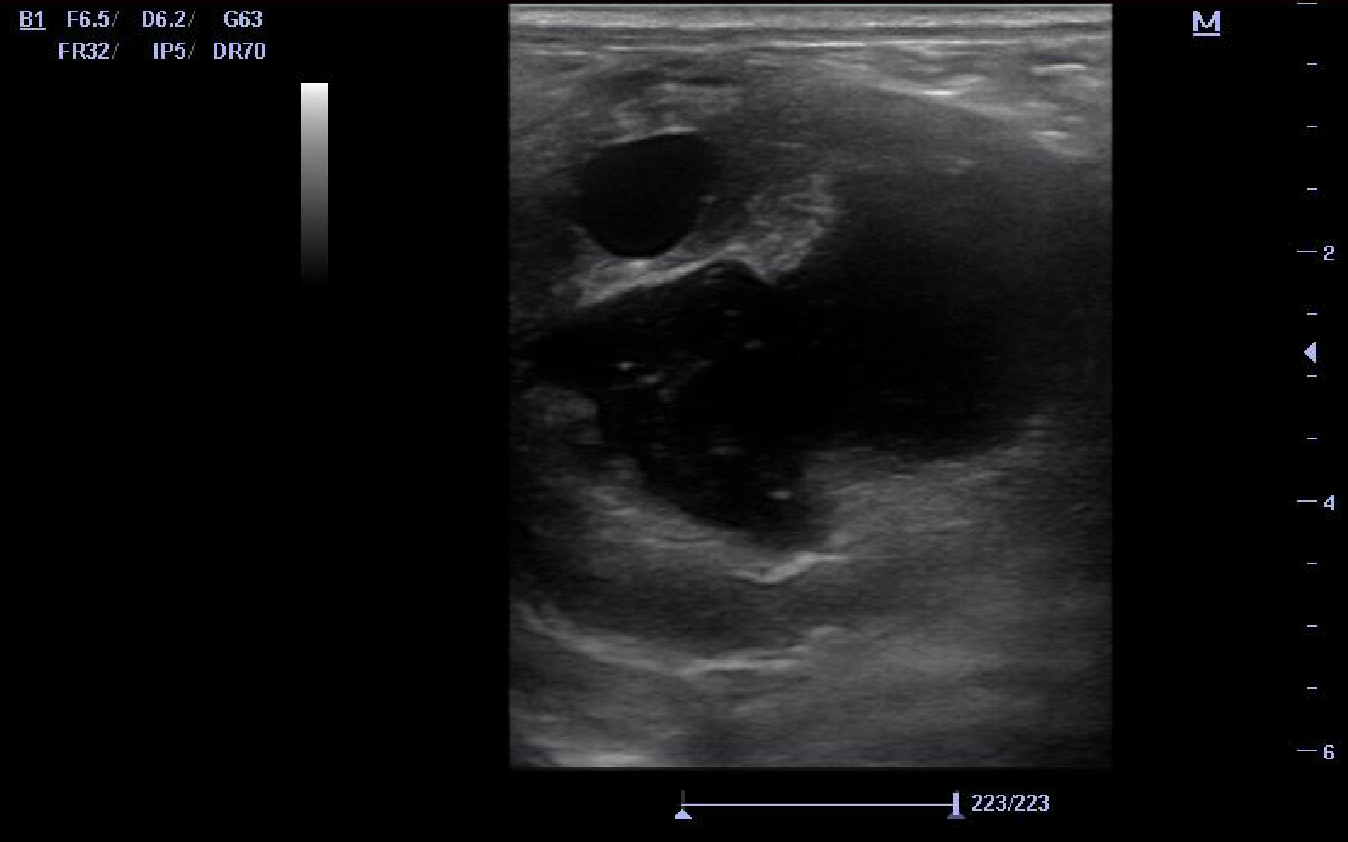

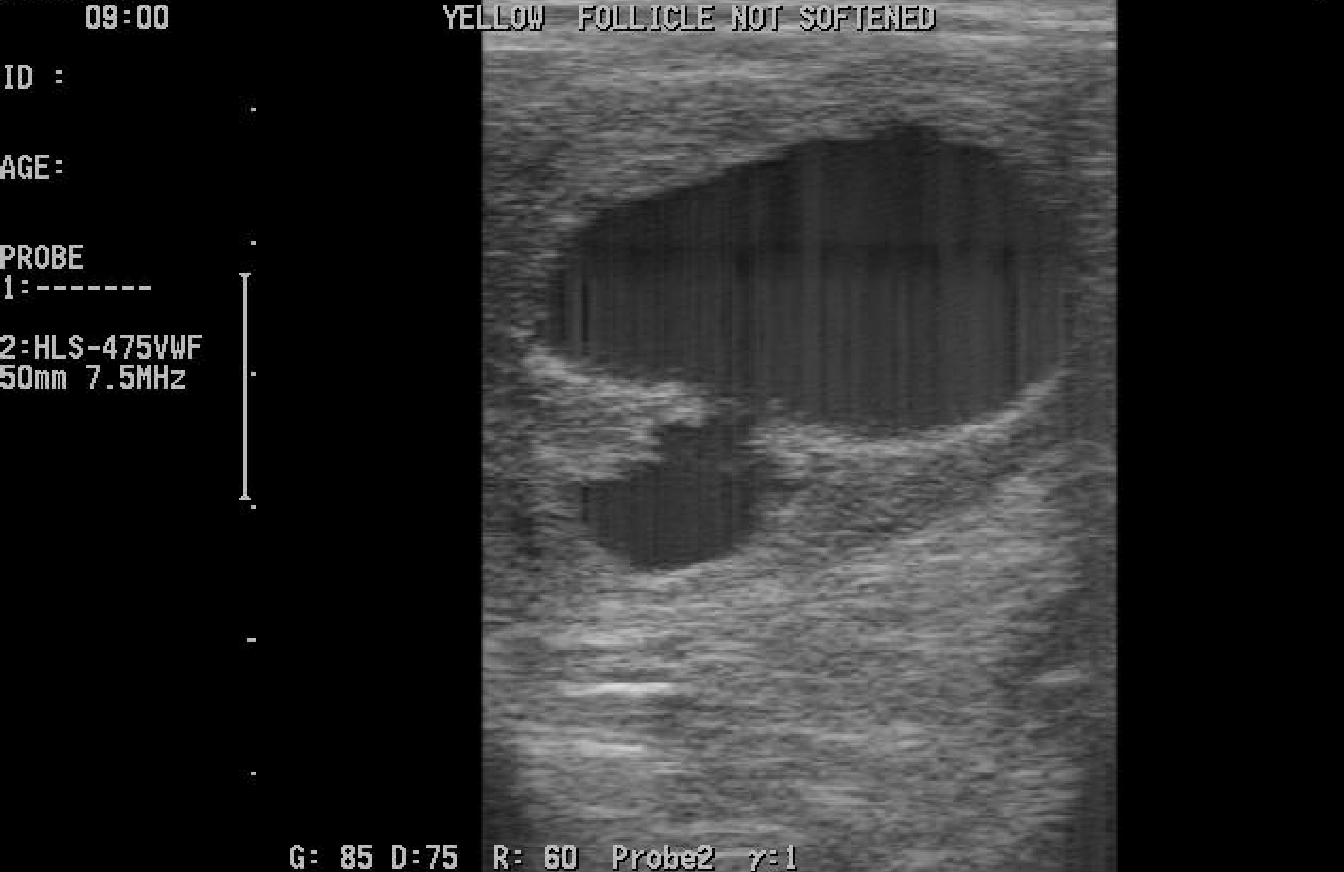

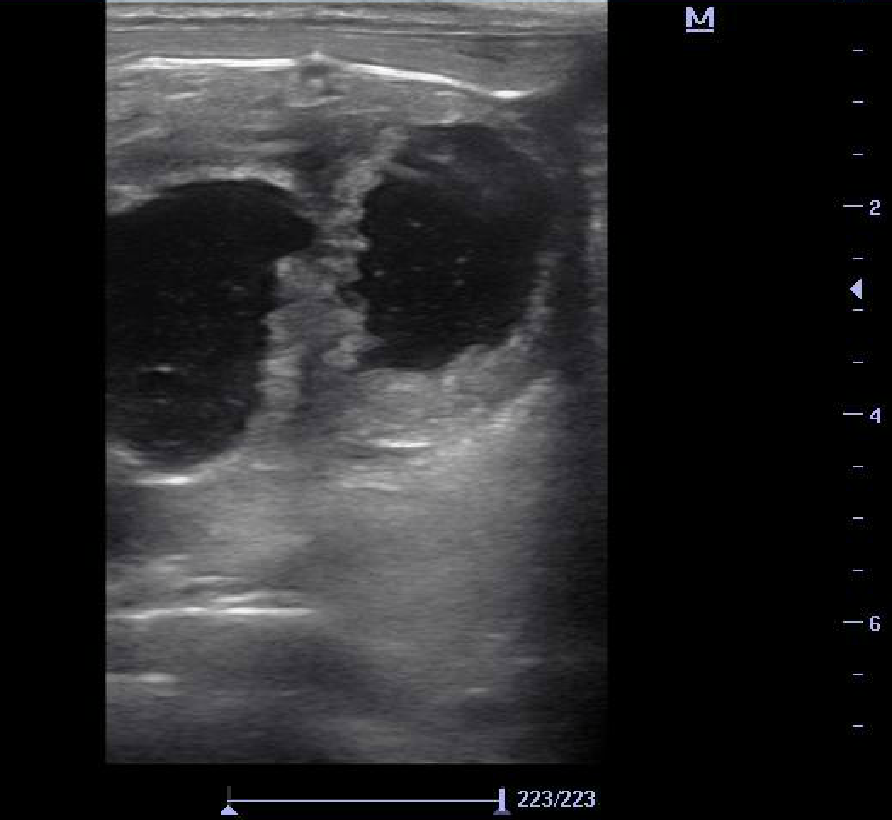

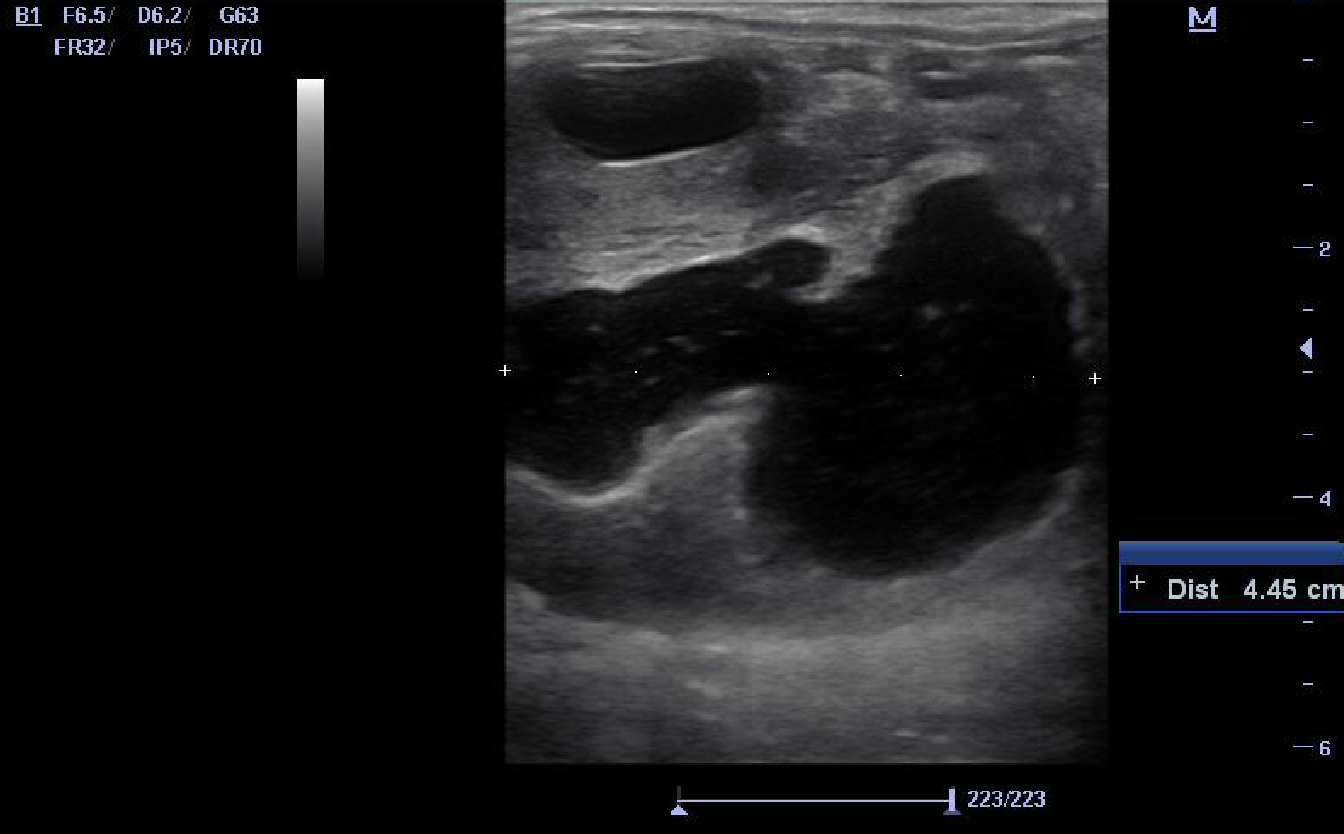

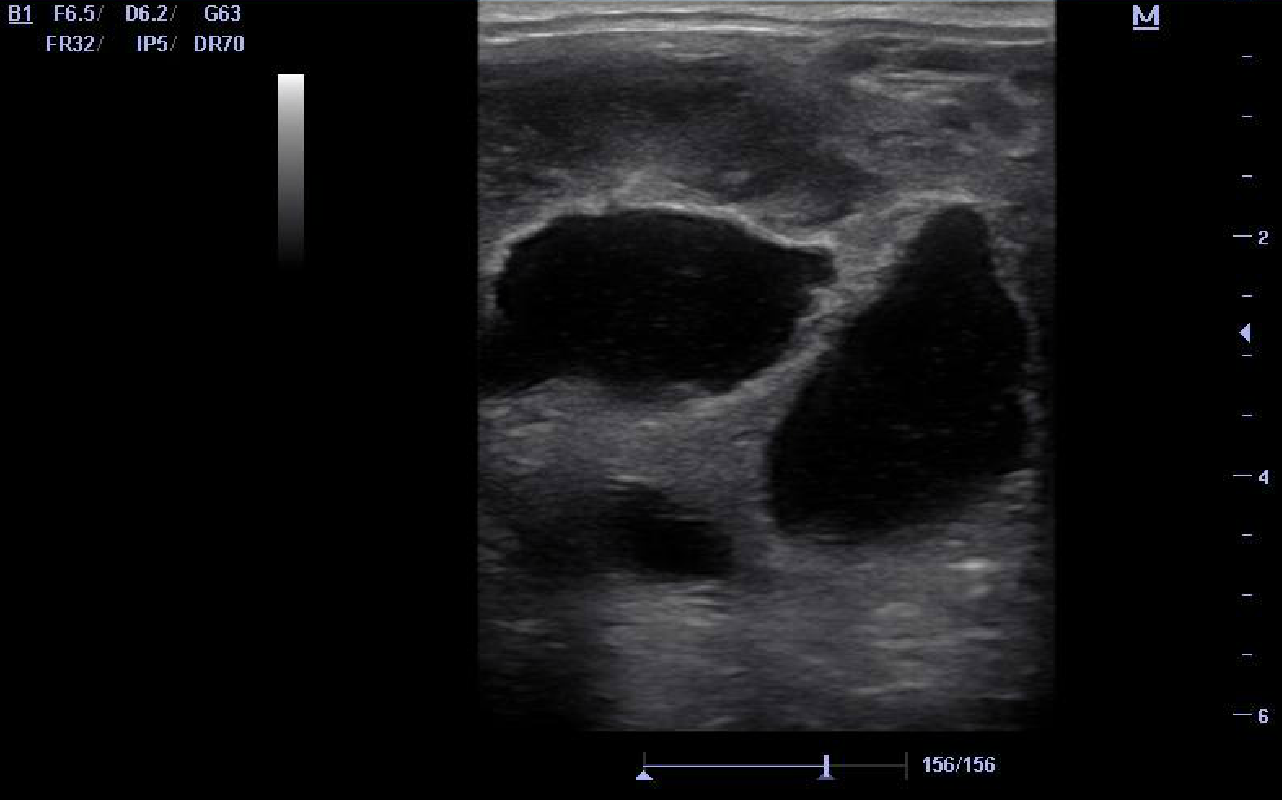

• Partial collapse: appears like two follicles

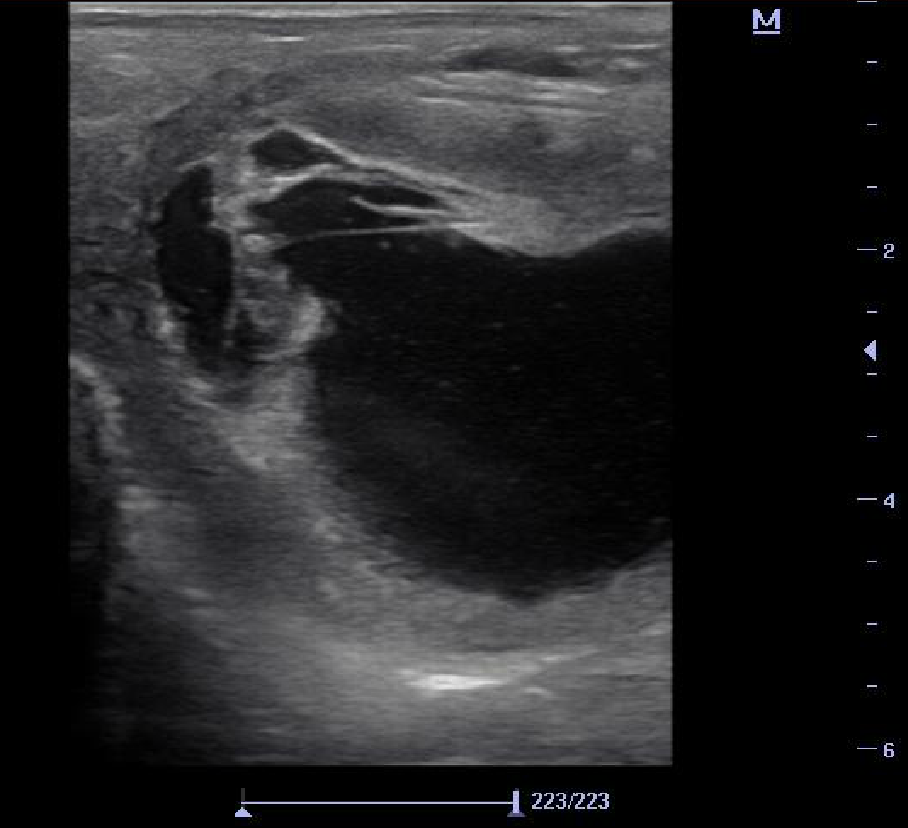

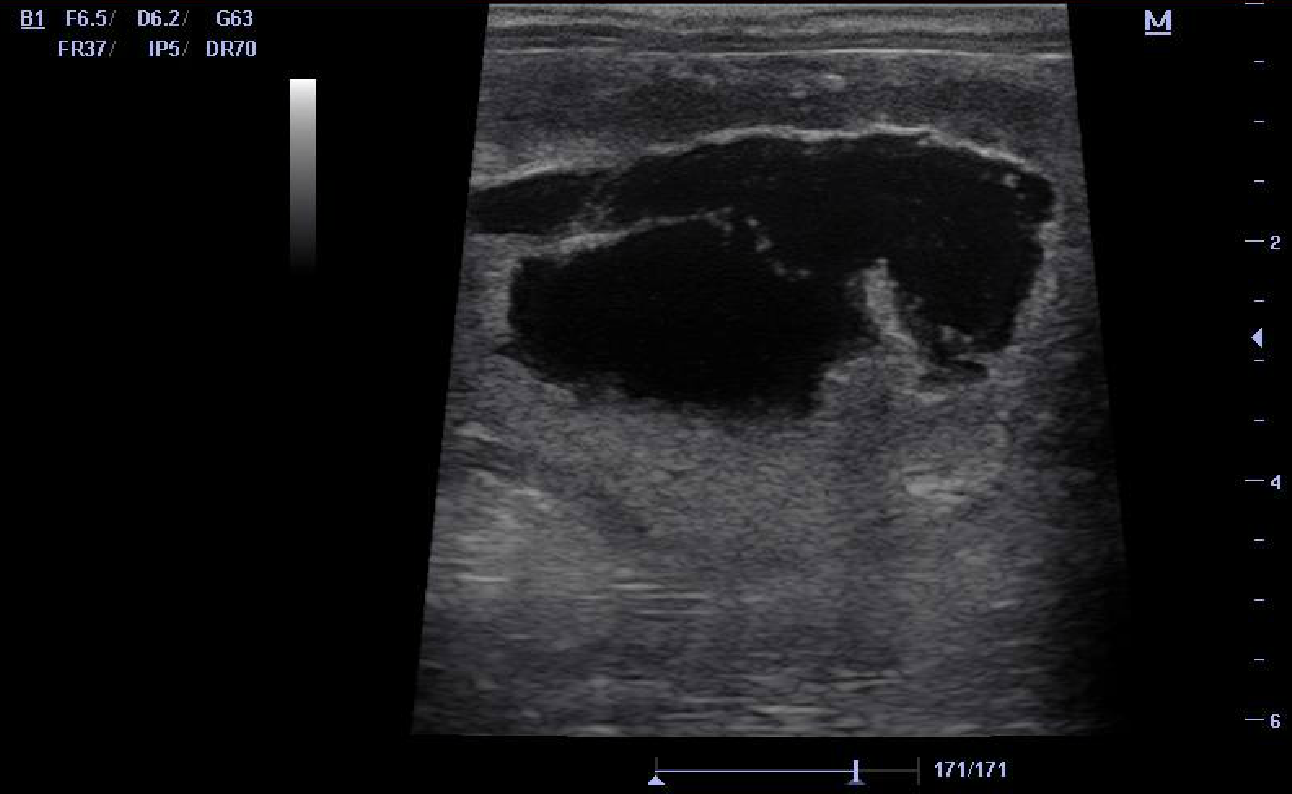

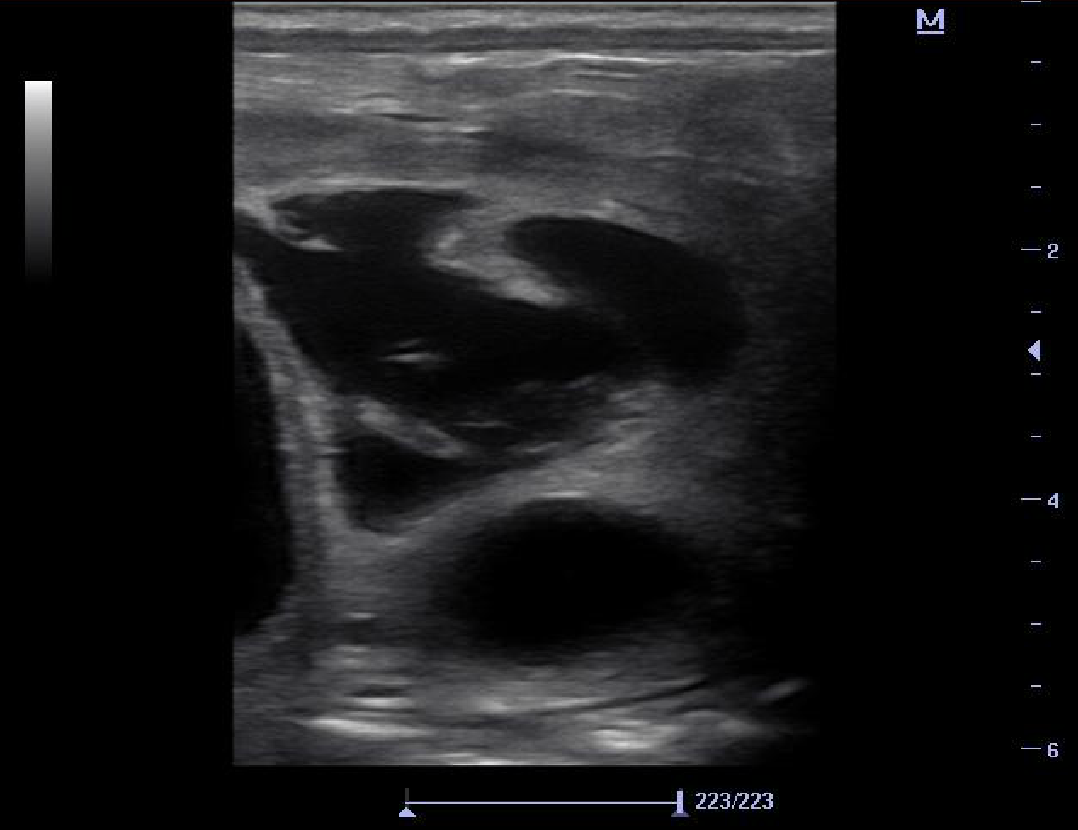

• Partial collapse into two adjoining cavities


• Partial collapse: only narrow communication visible between two cavities
  post here?

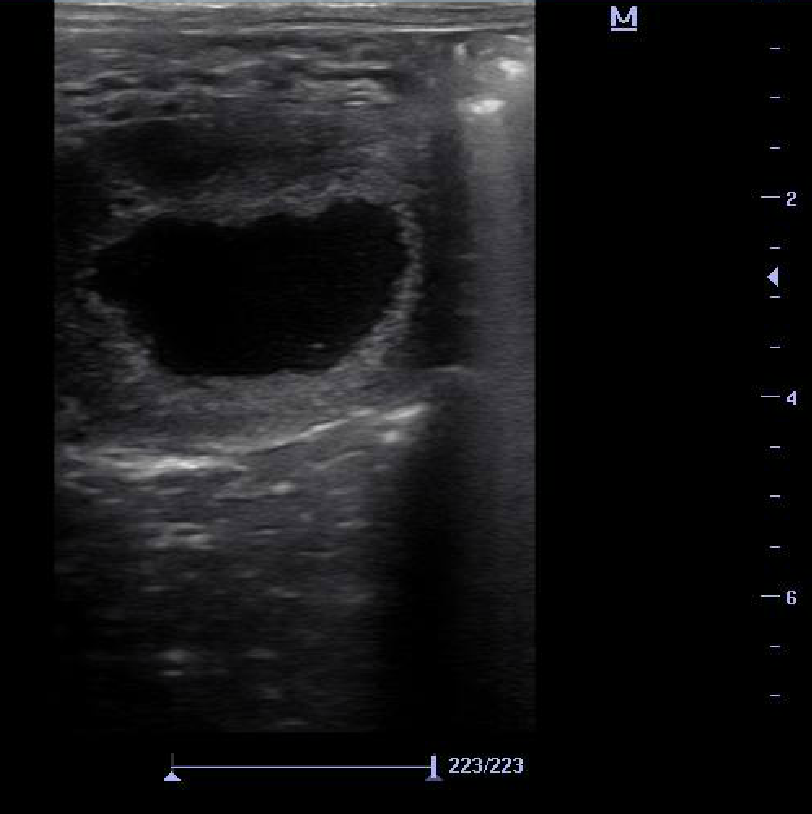

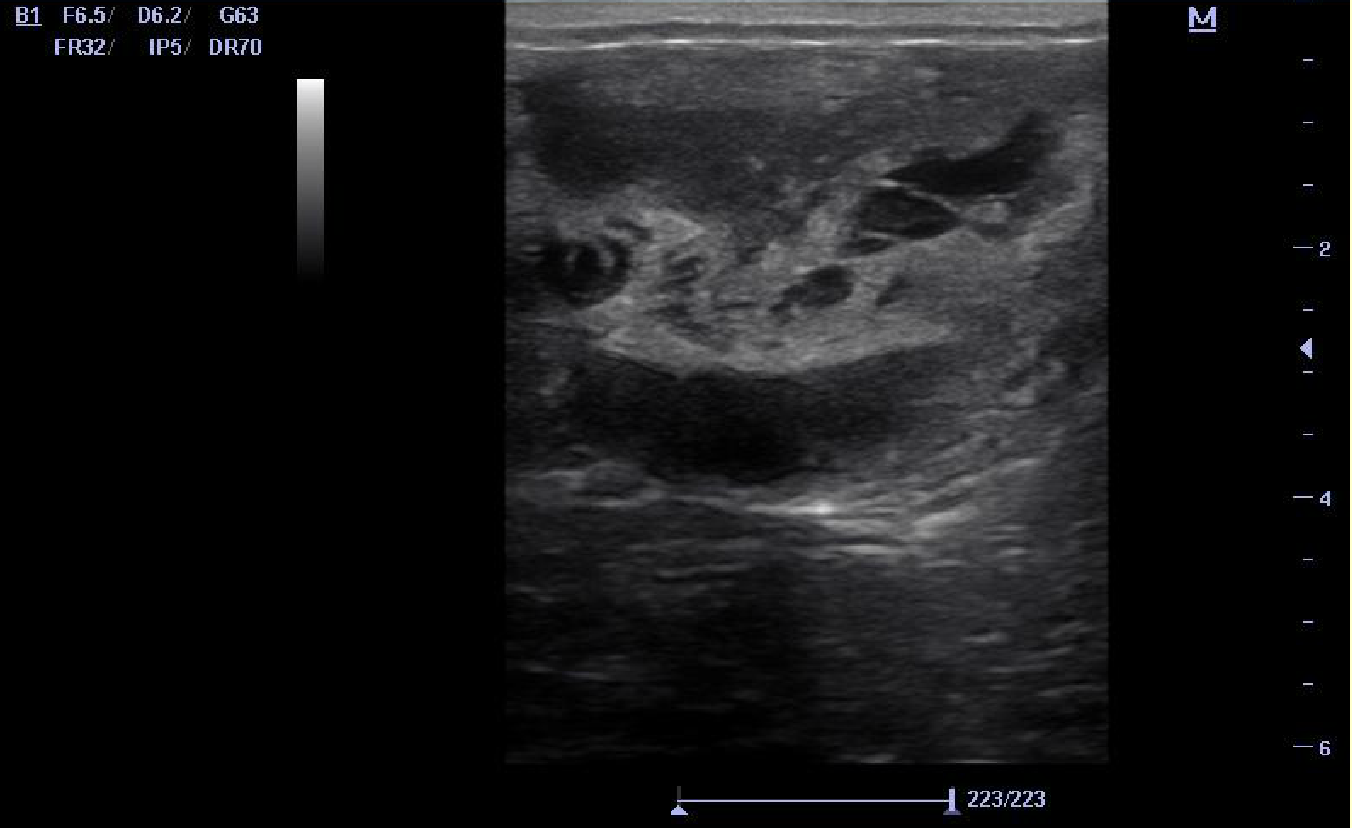

• Partial collapse

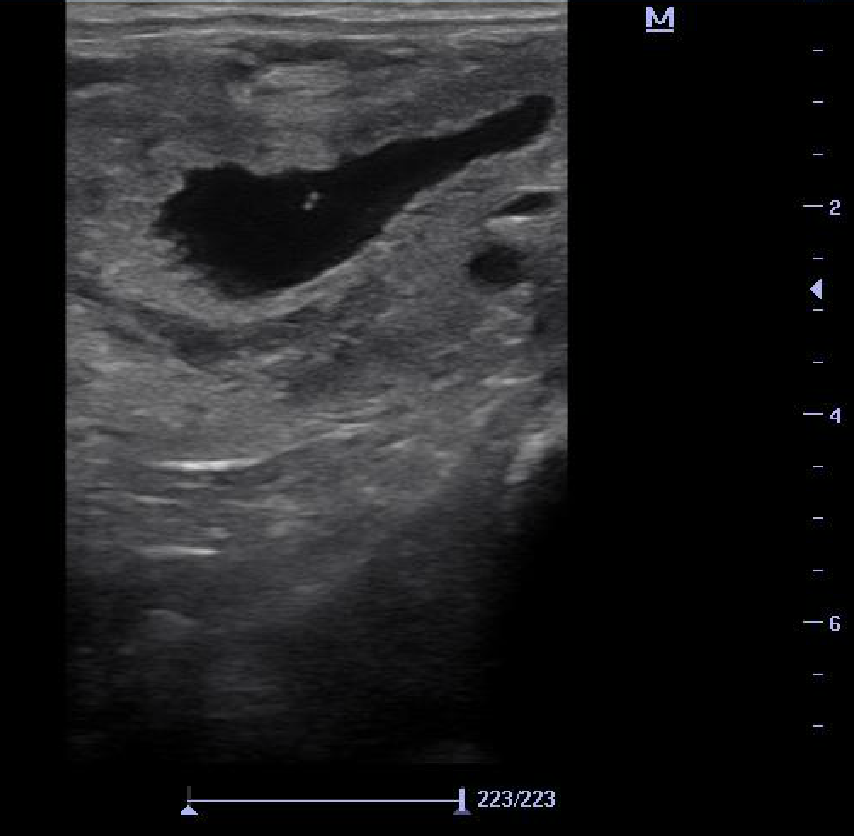

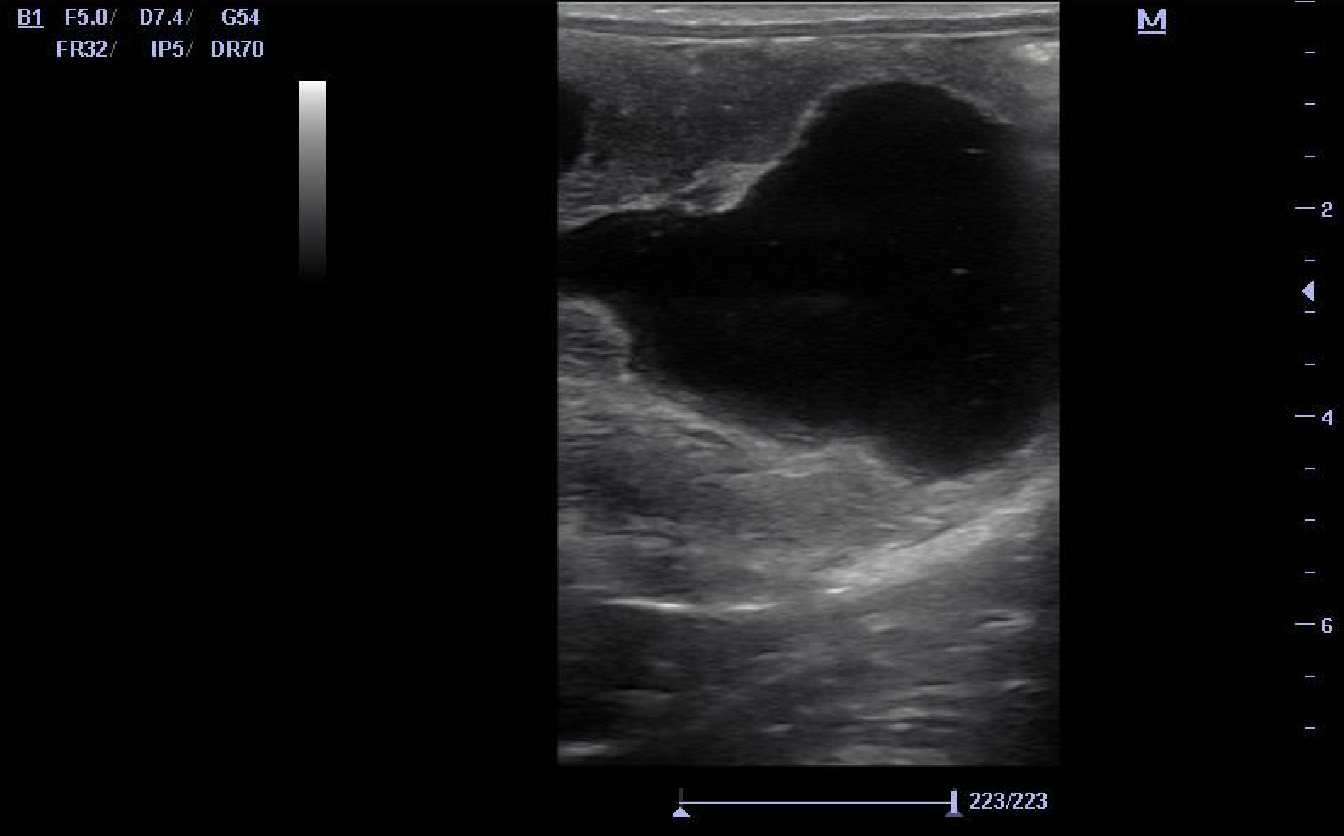

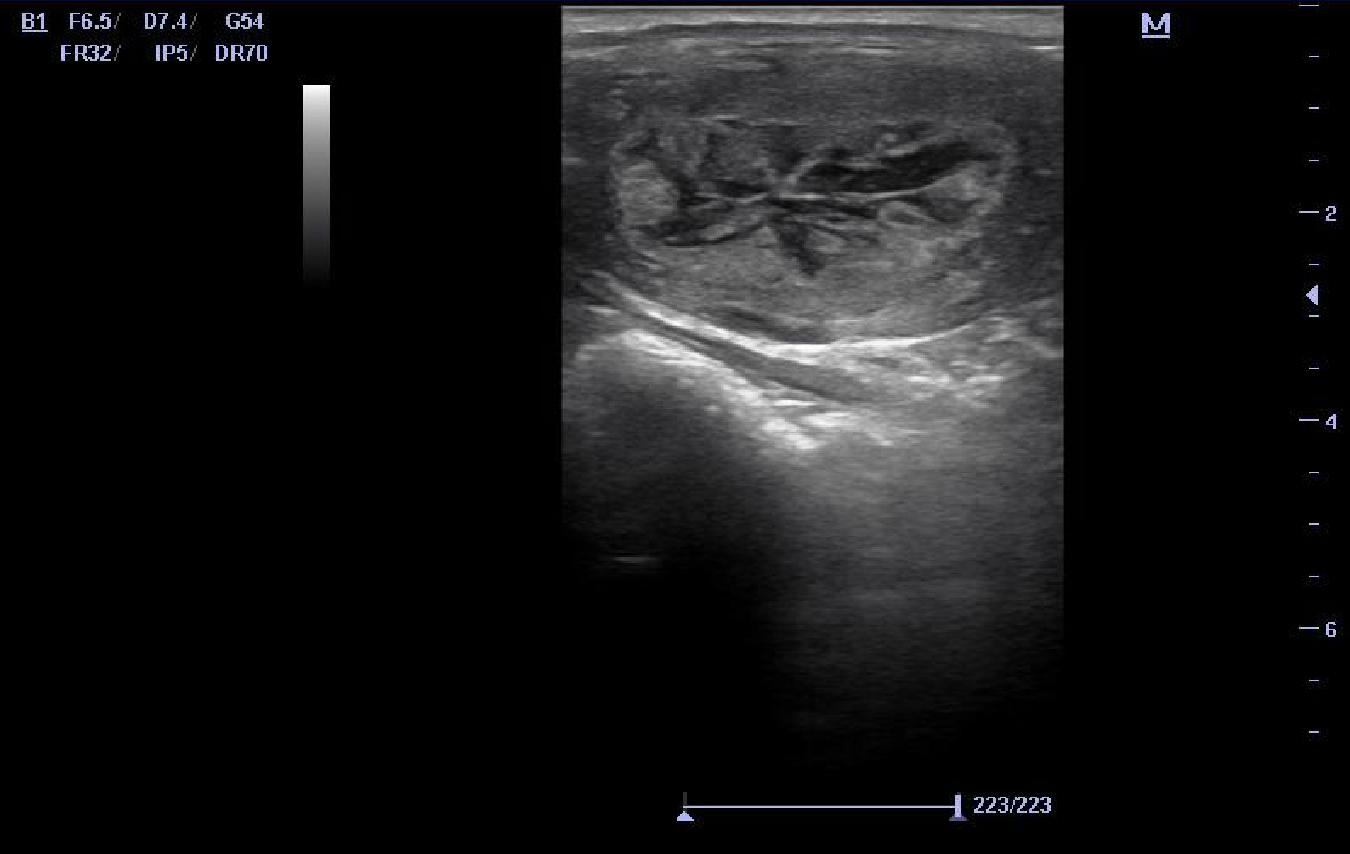

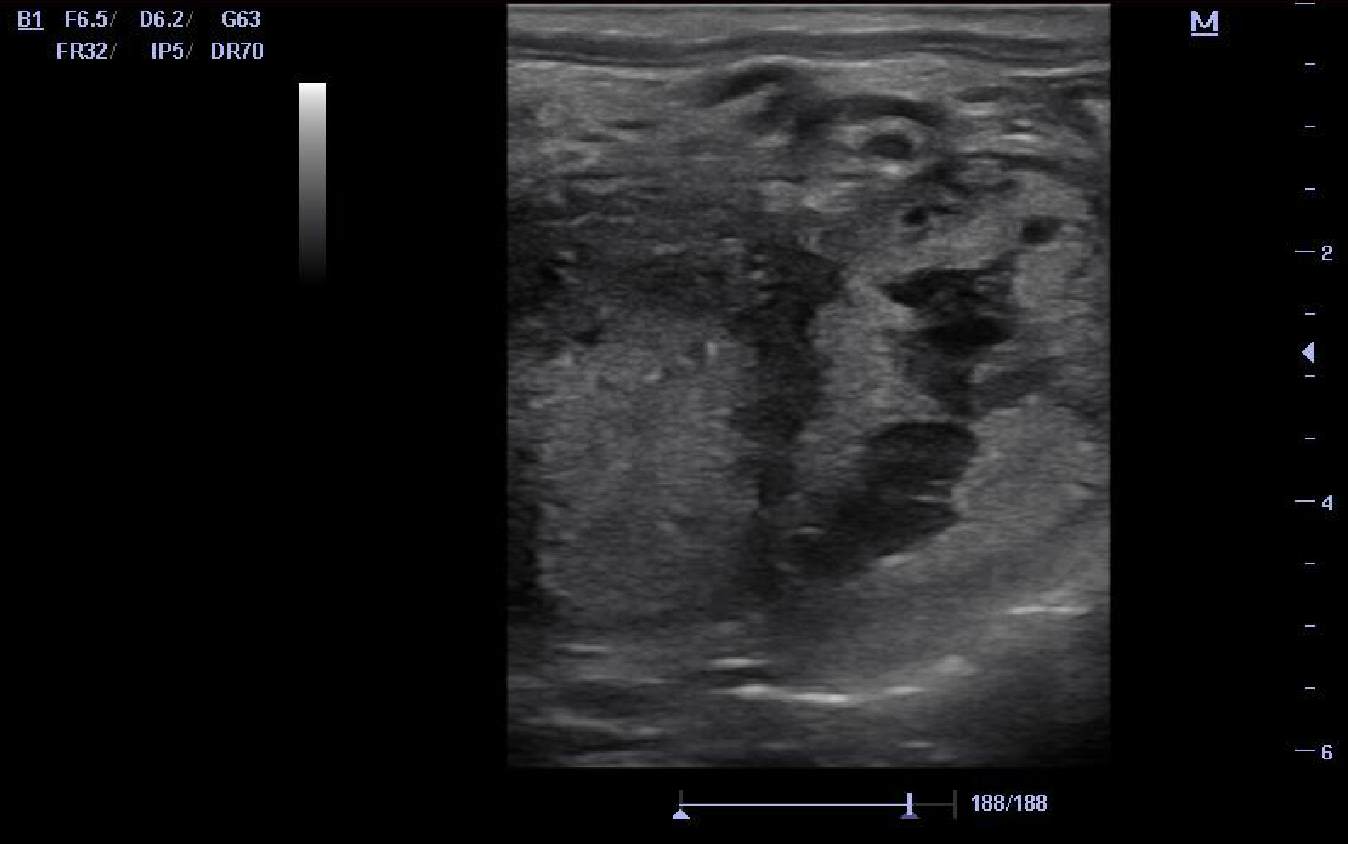

• Almost total collapse


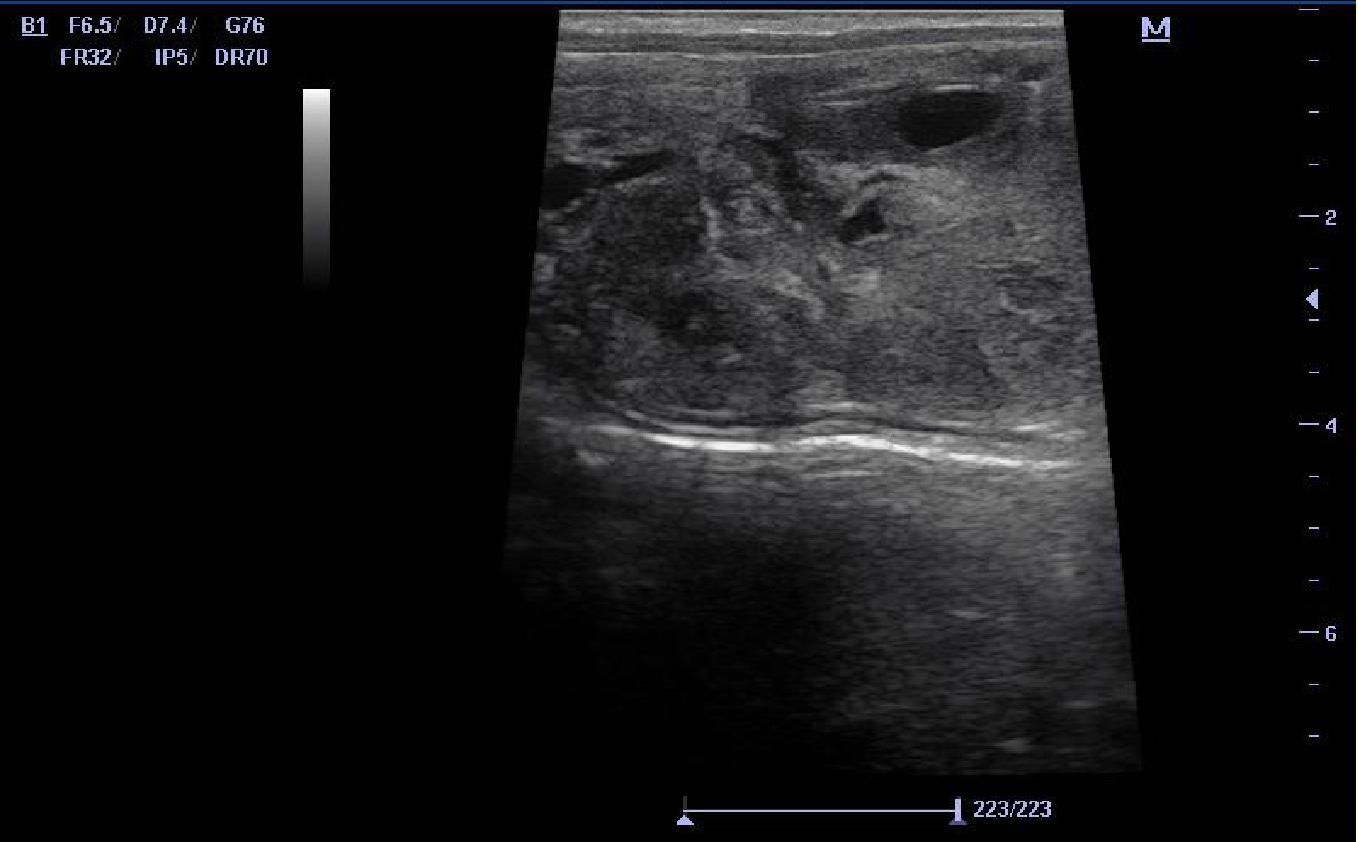

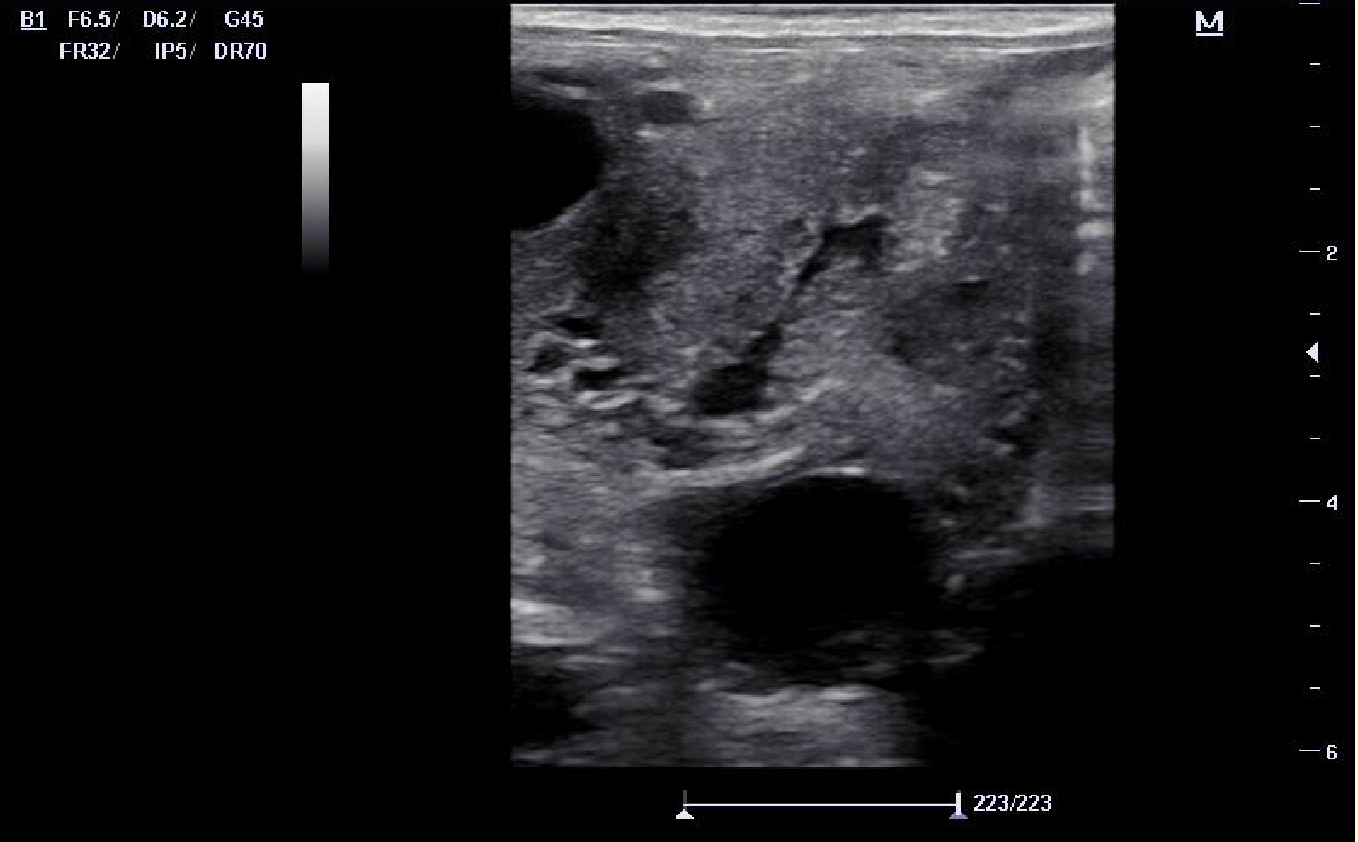

• Very recent ovulation still some fluid retained


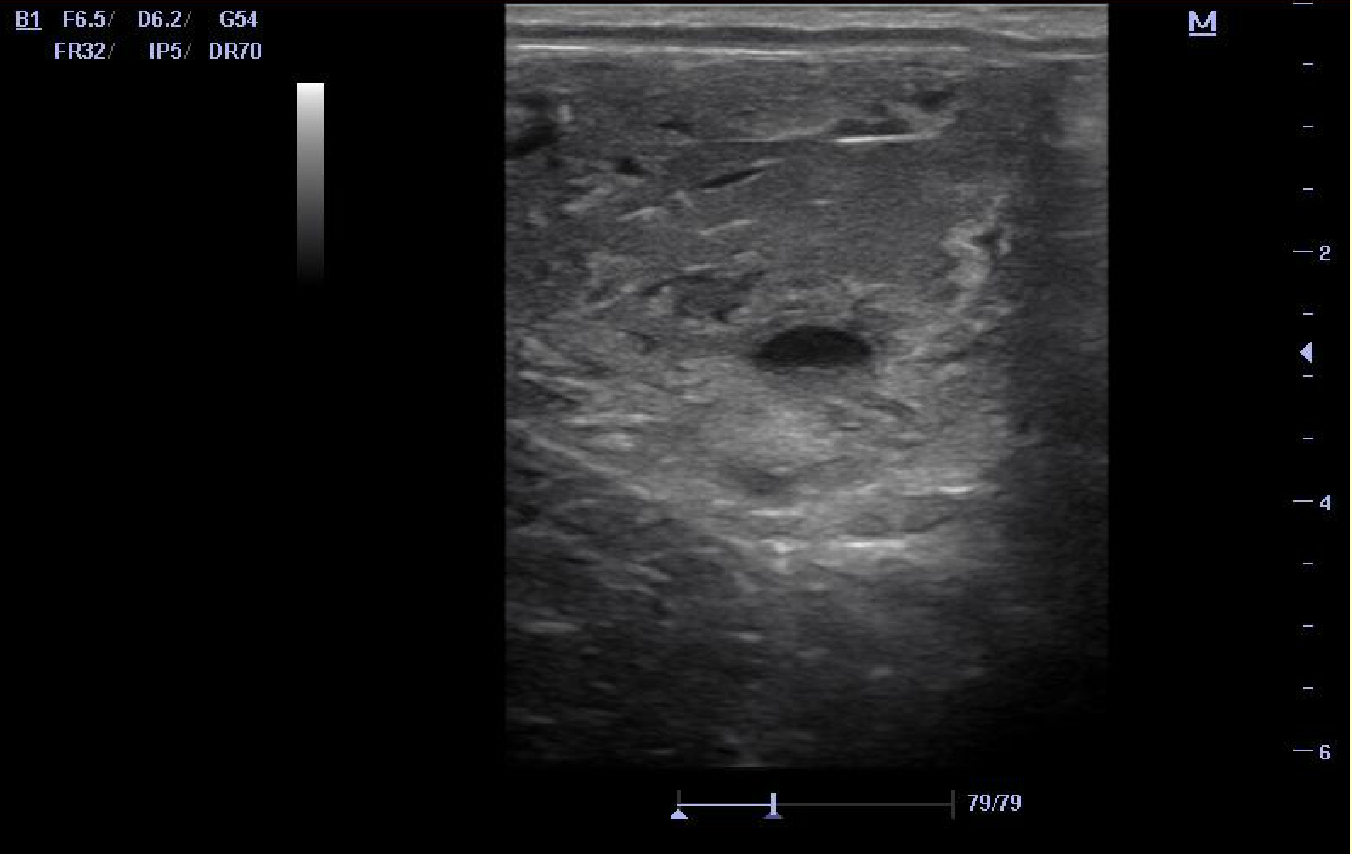

• Ovulated 13h with residual fluid


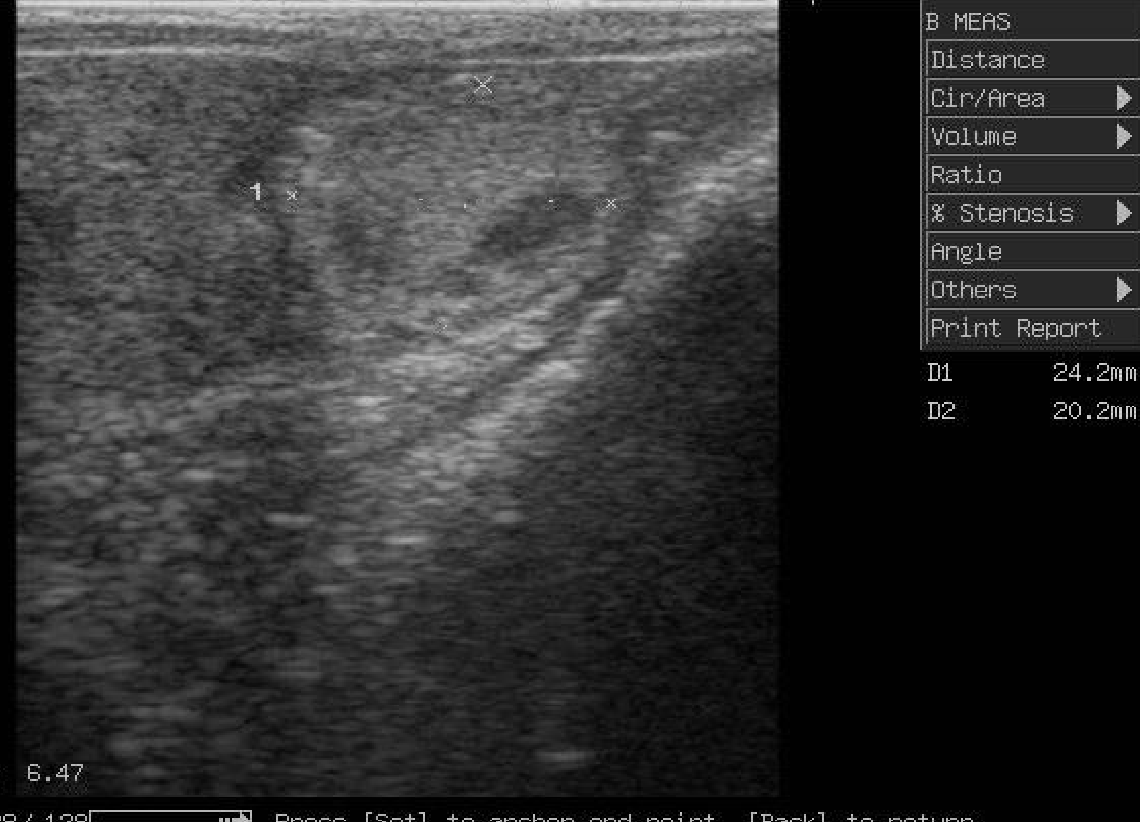

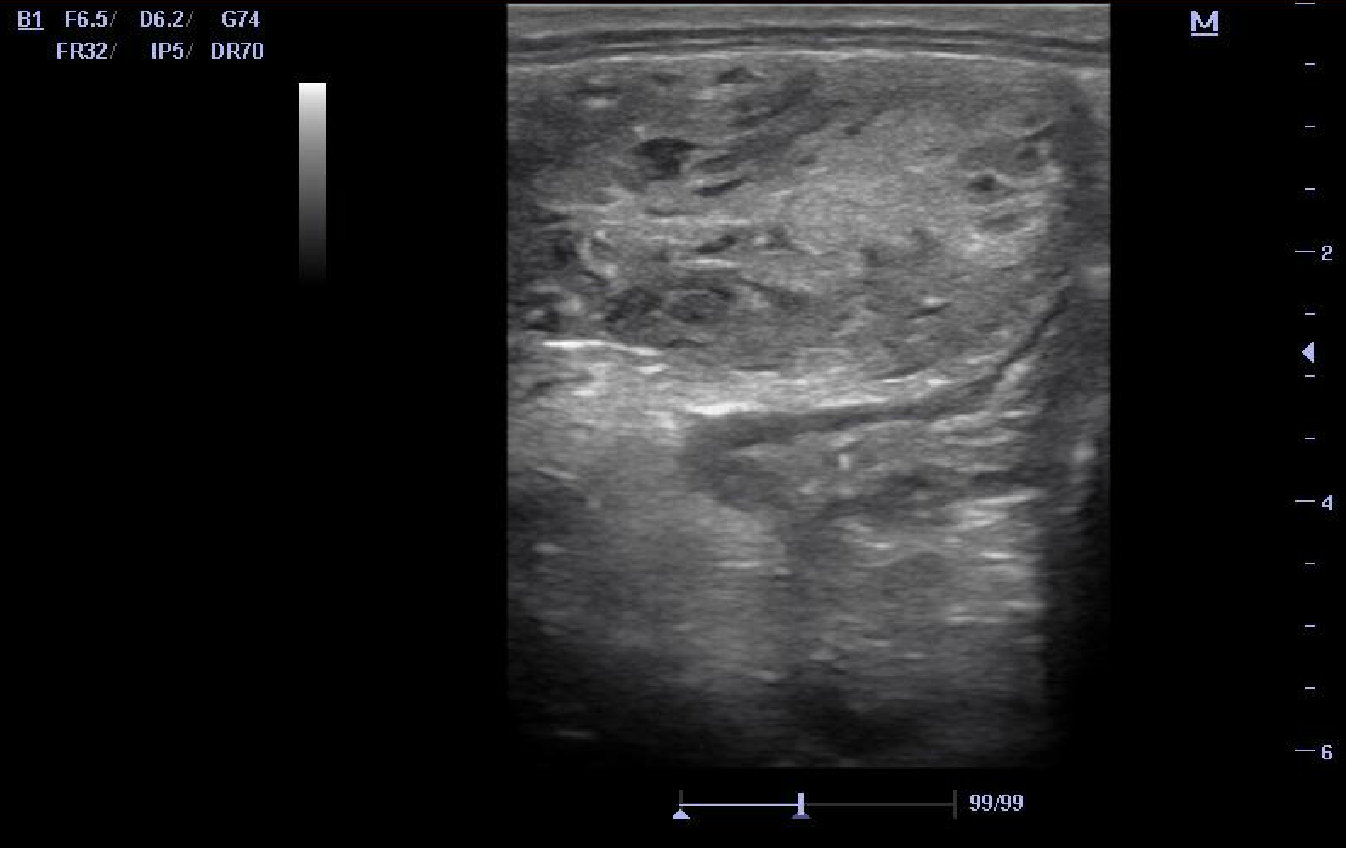

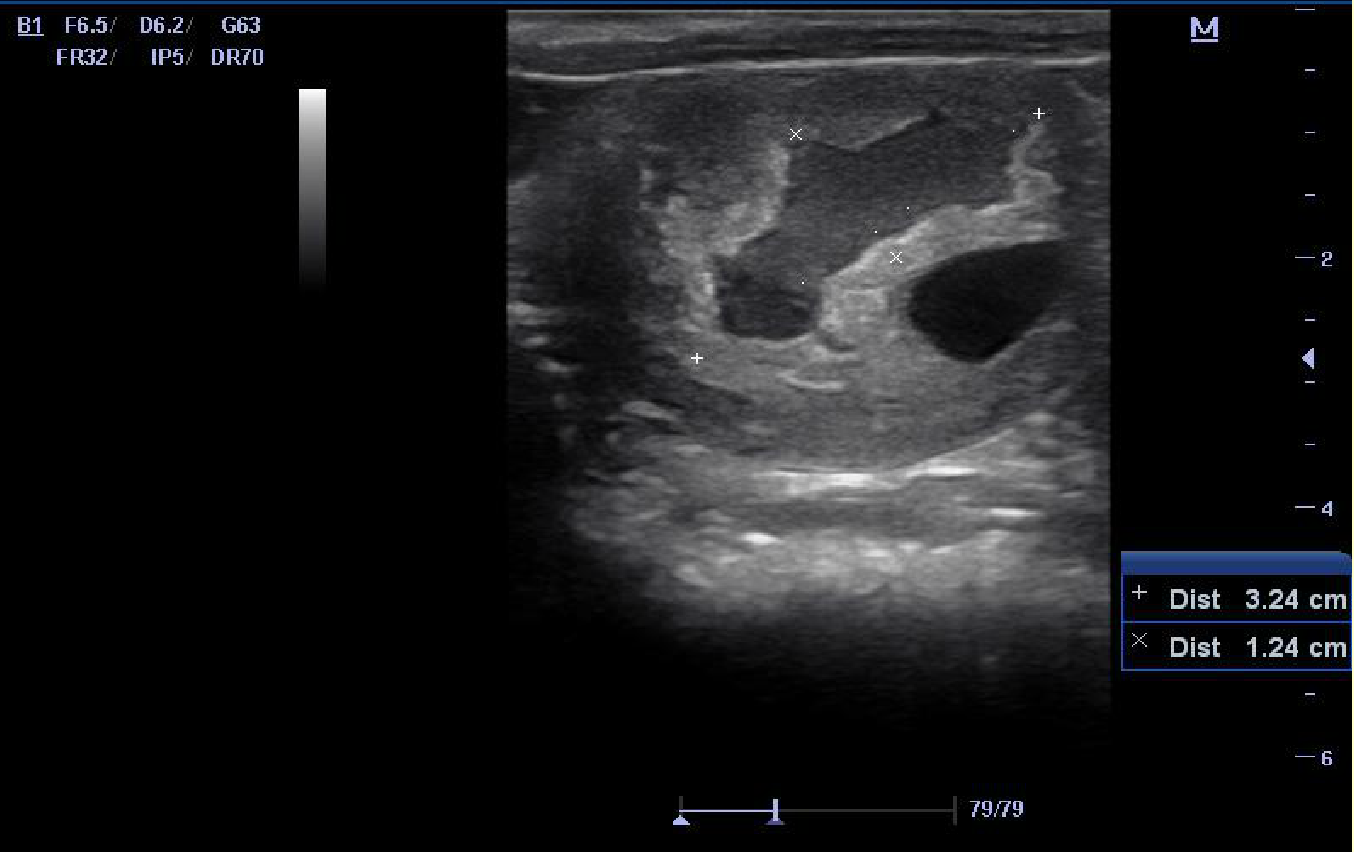

• Two mature CLs


•

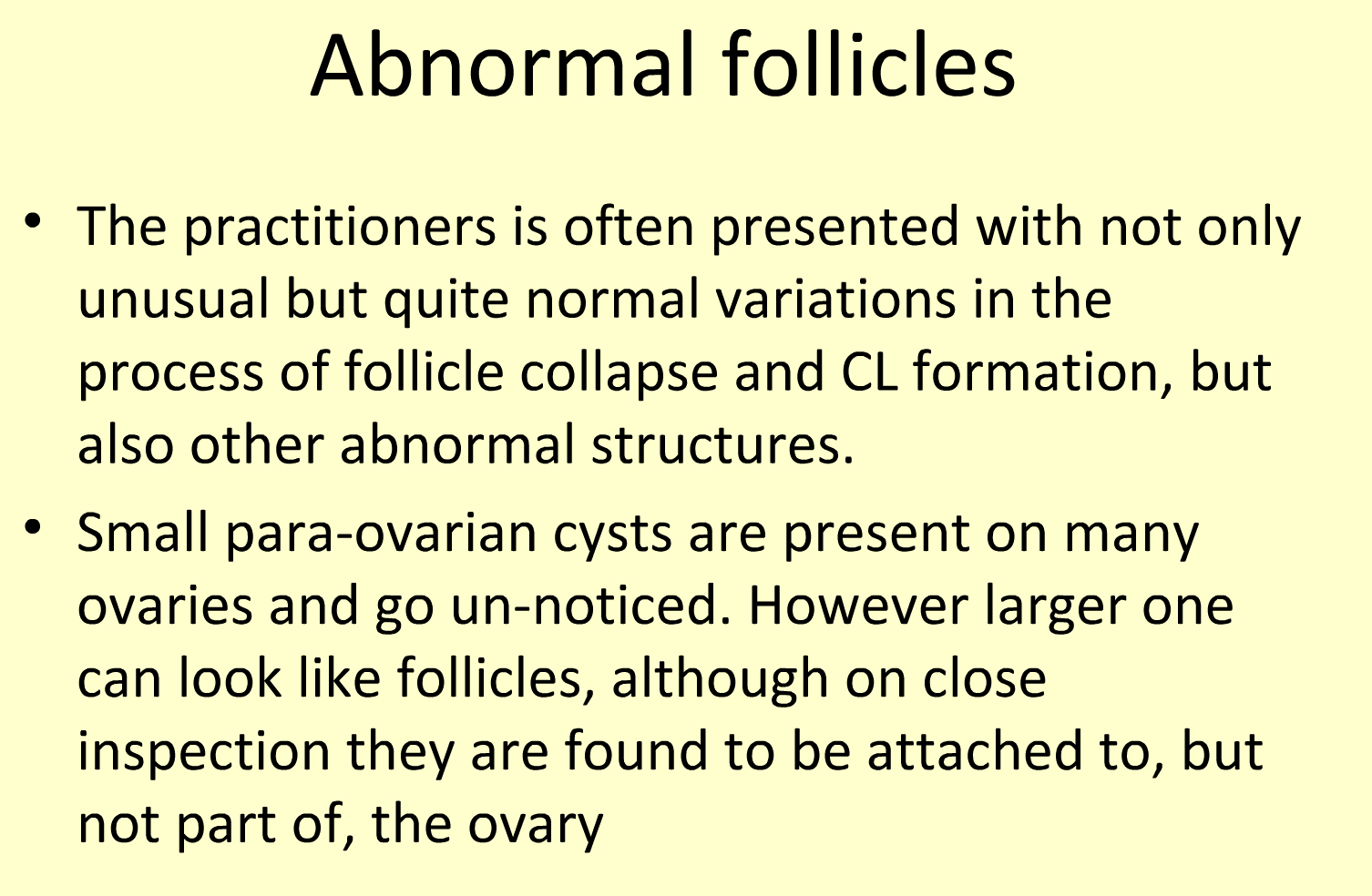

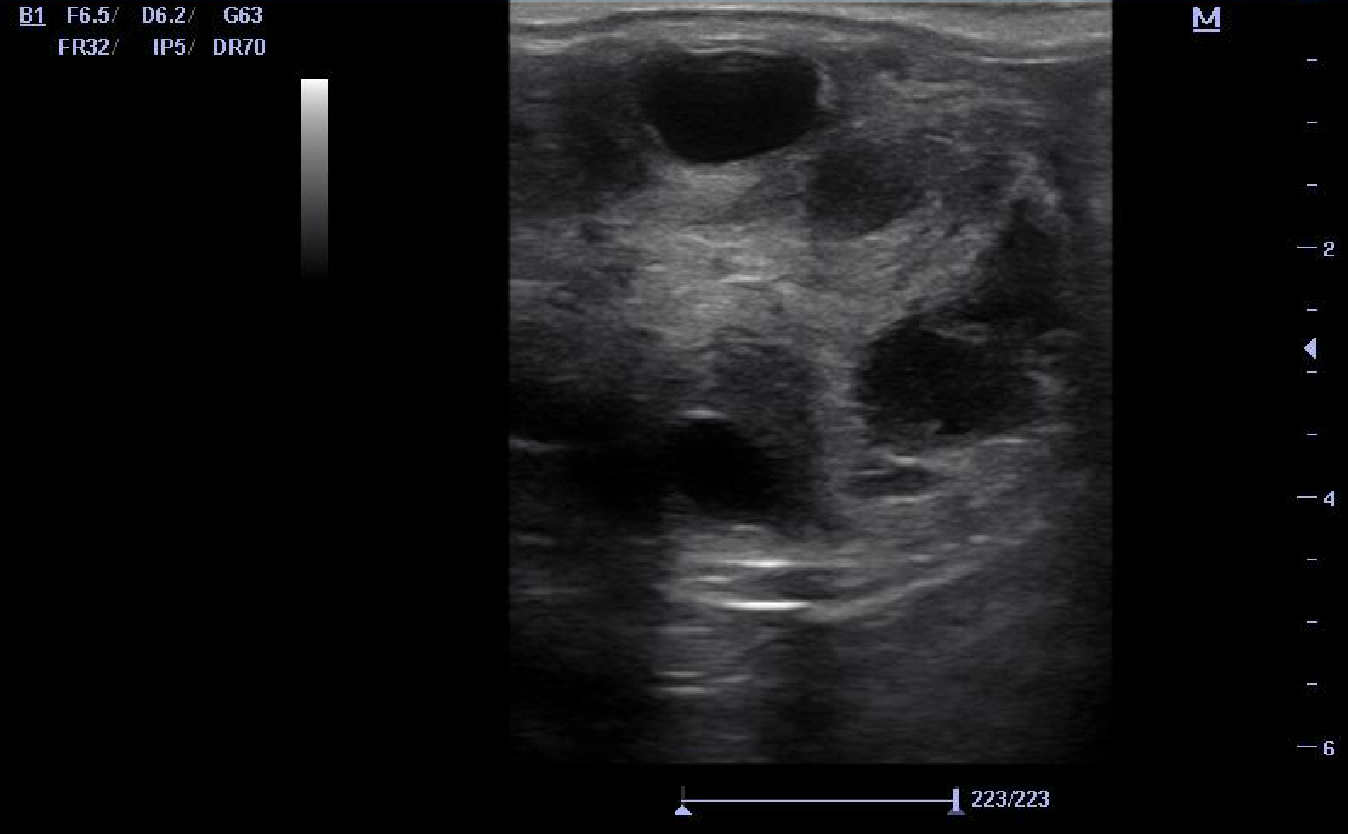

• Paraovarion cysts




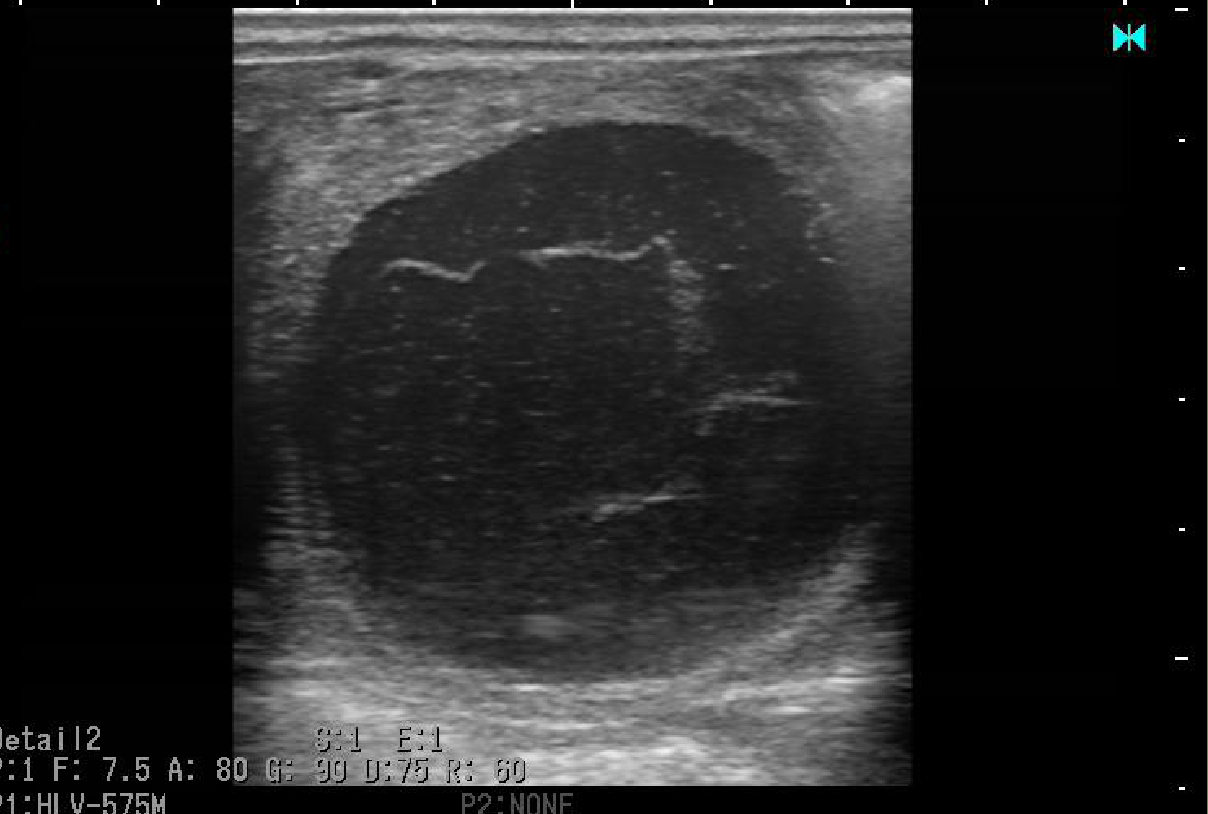

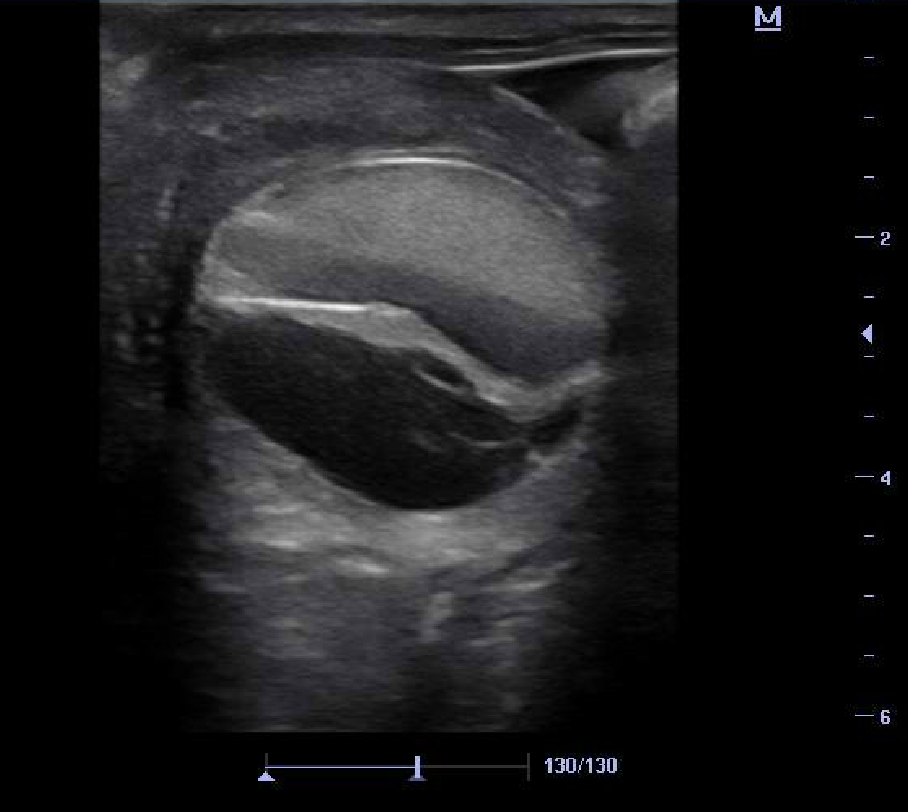

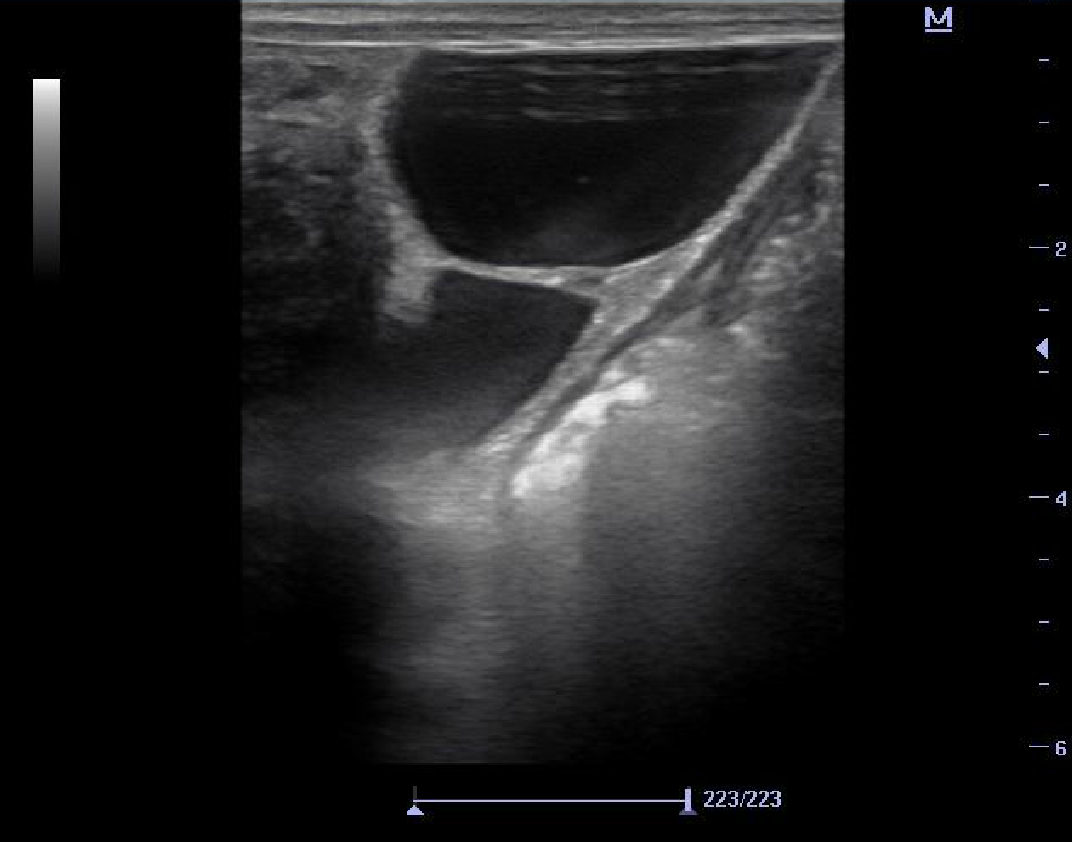

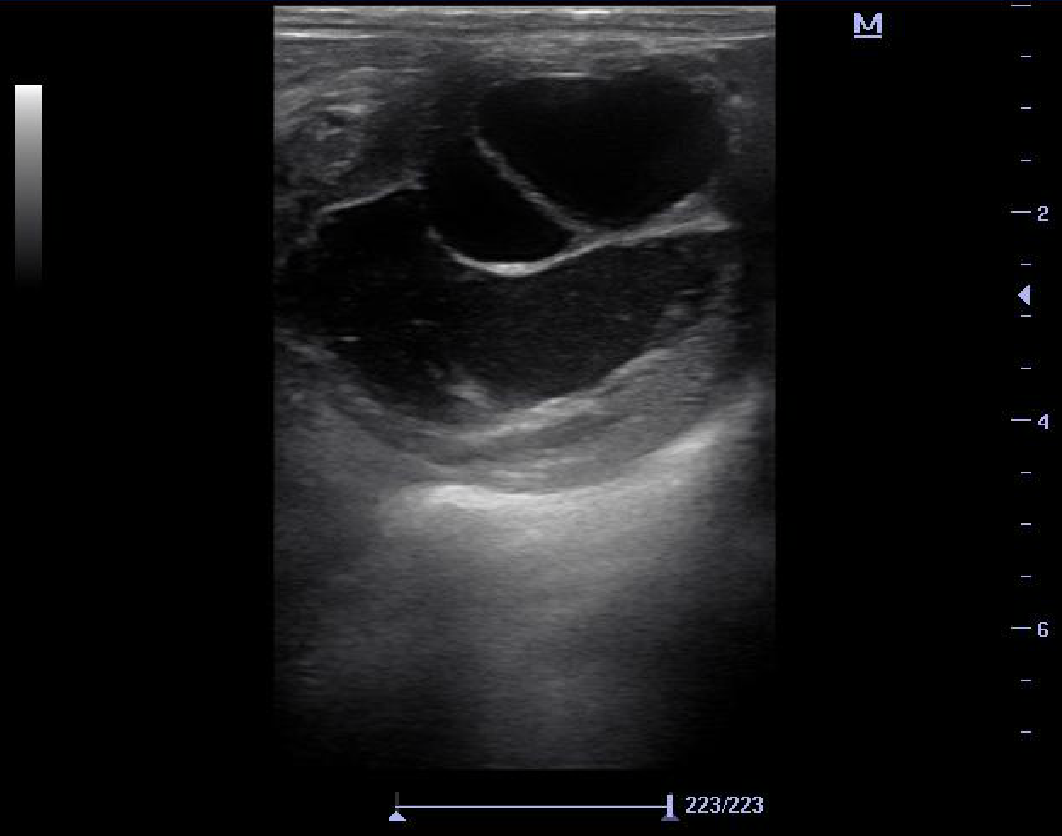

• Membrane within a single follicle, ovulated normally and may be fertile
  post here?

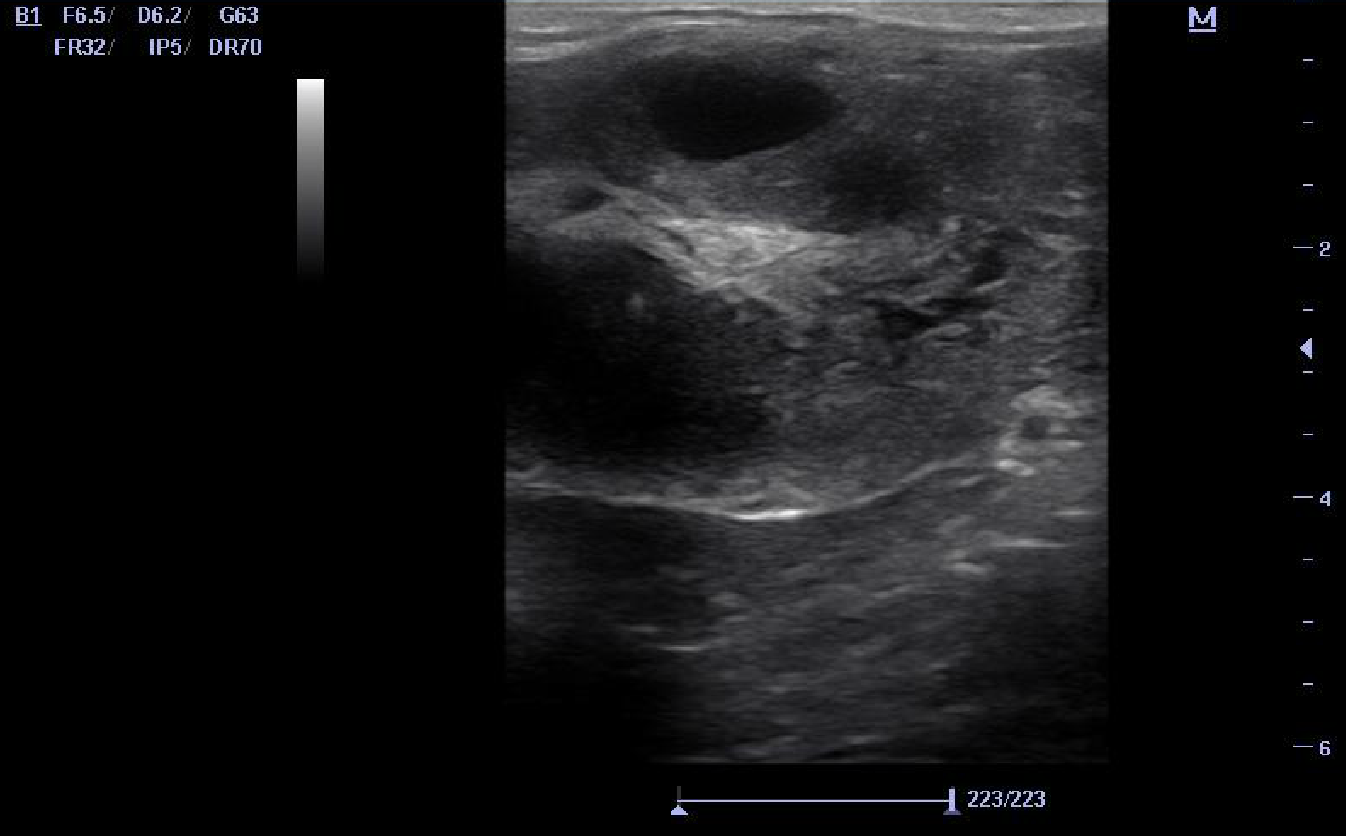

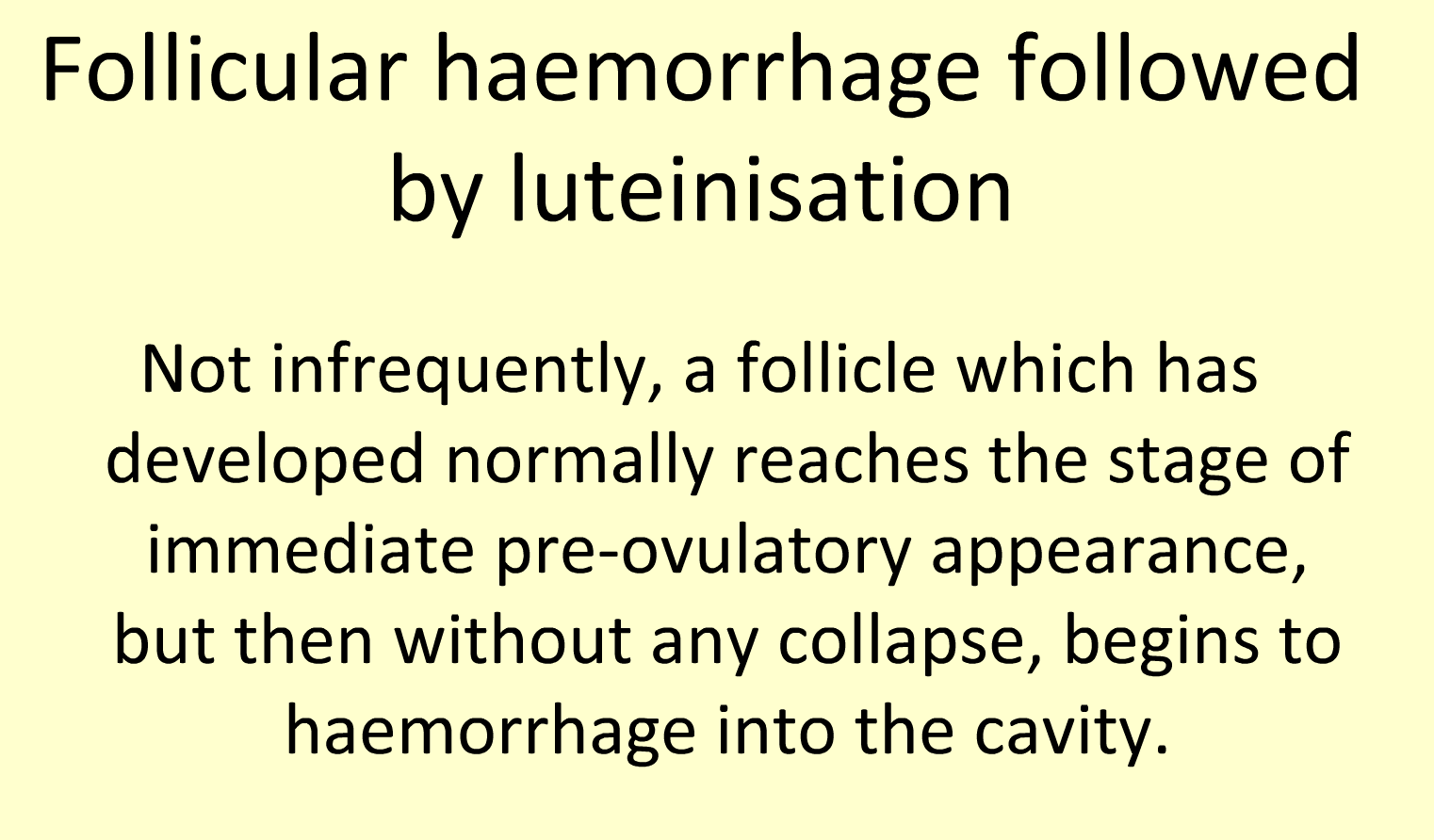

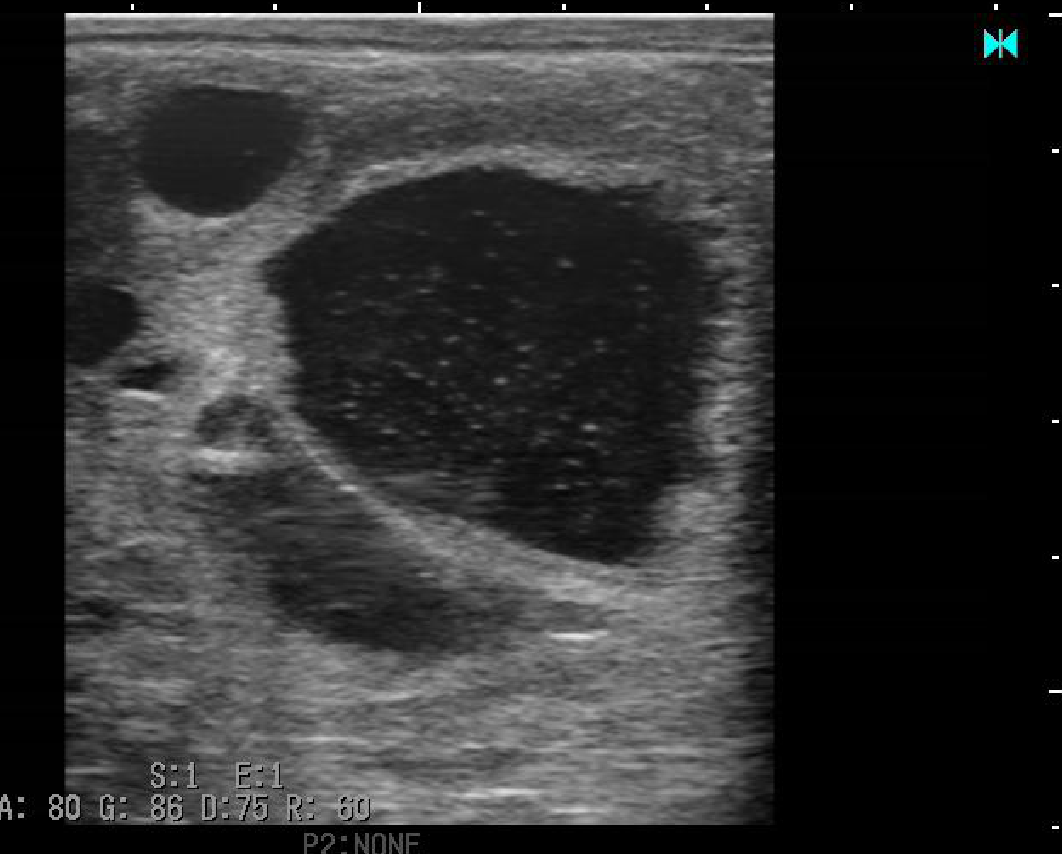

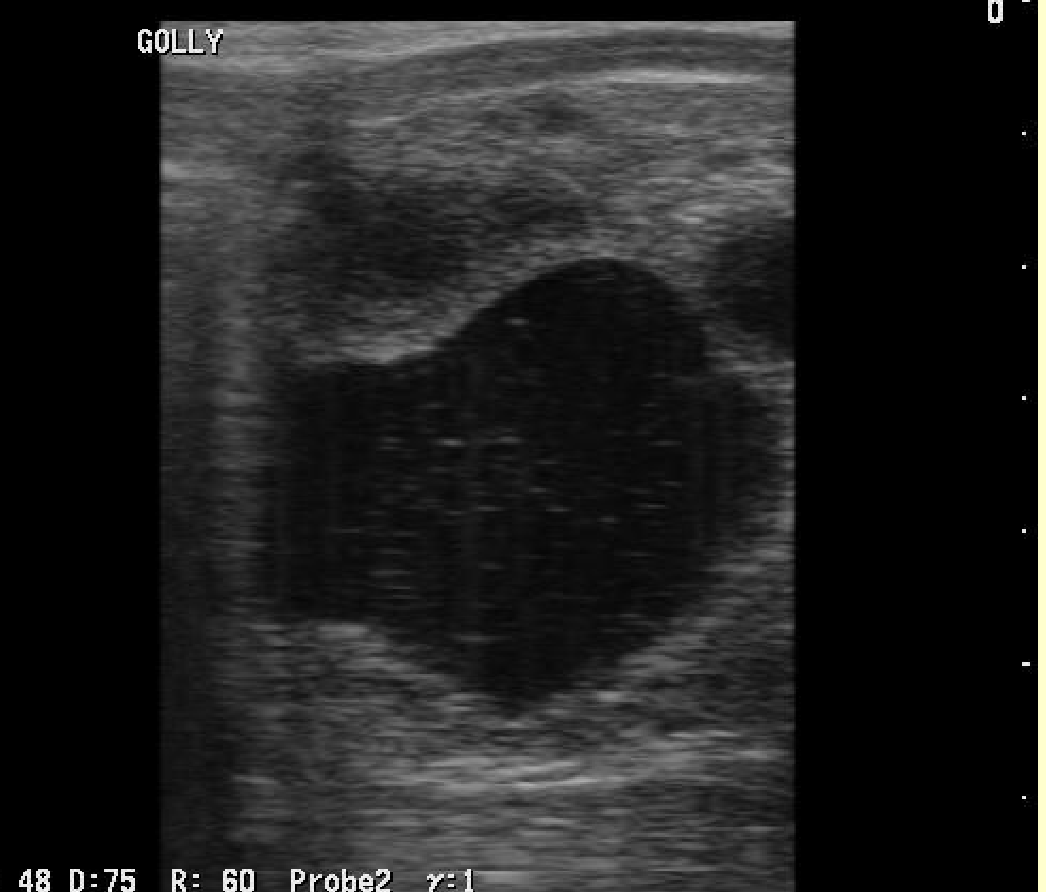

• Follicle beginning to haemorrhage


•

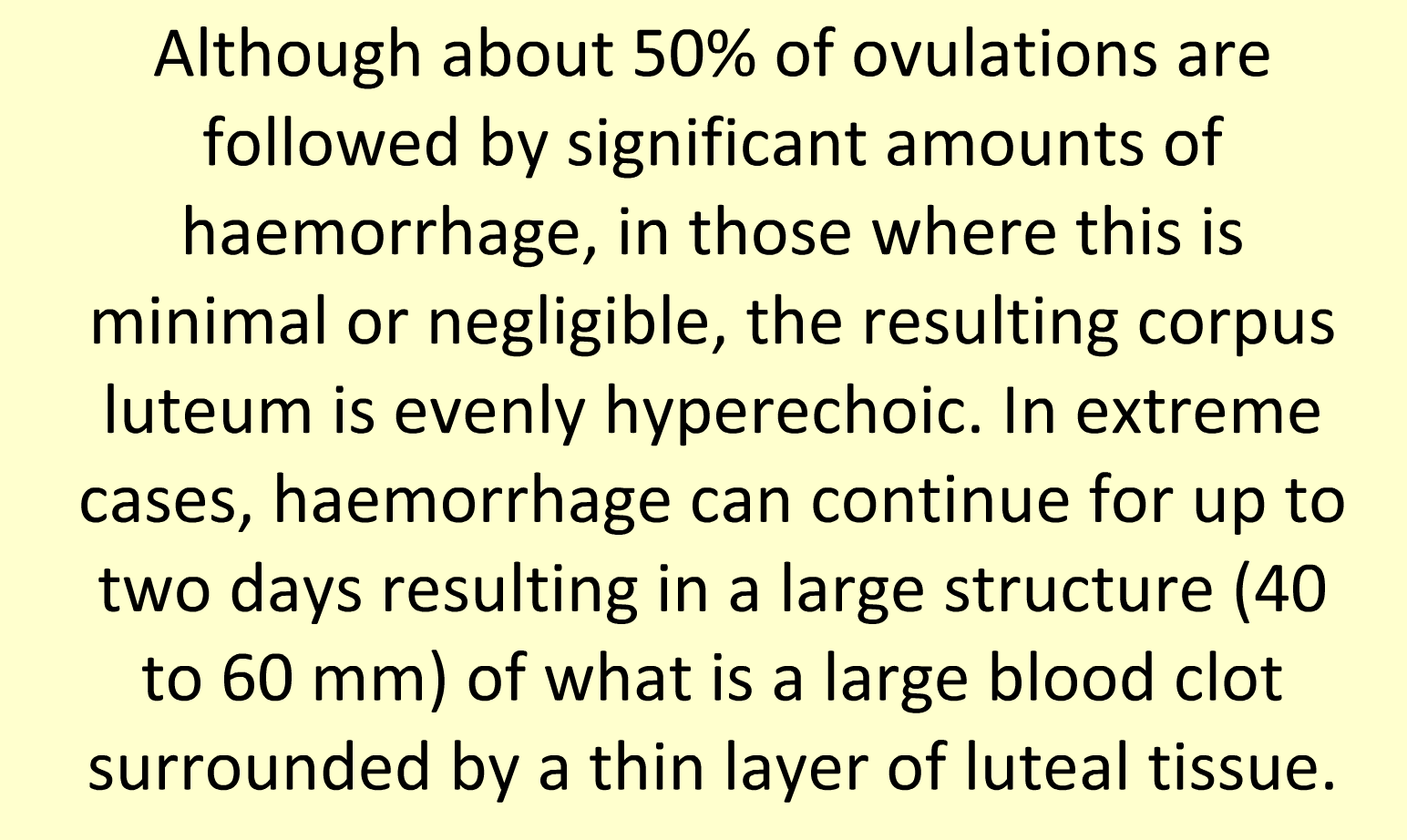

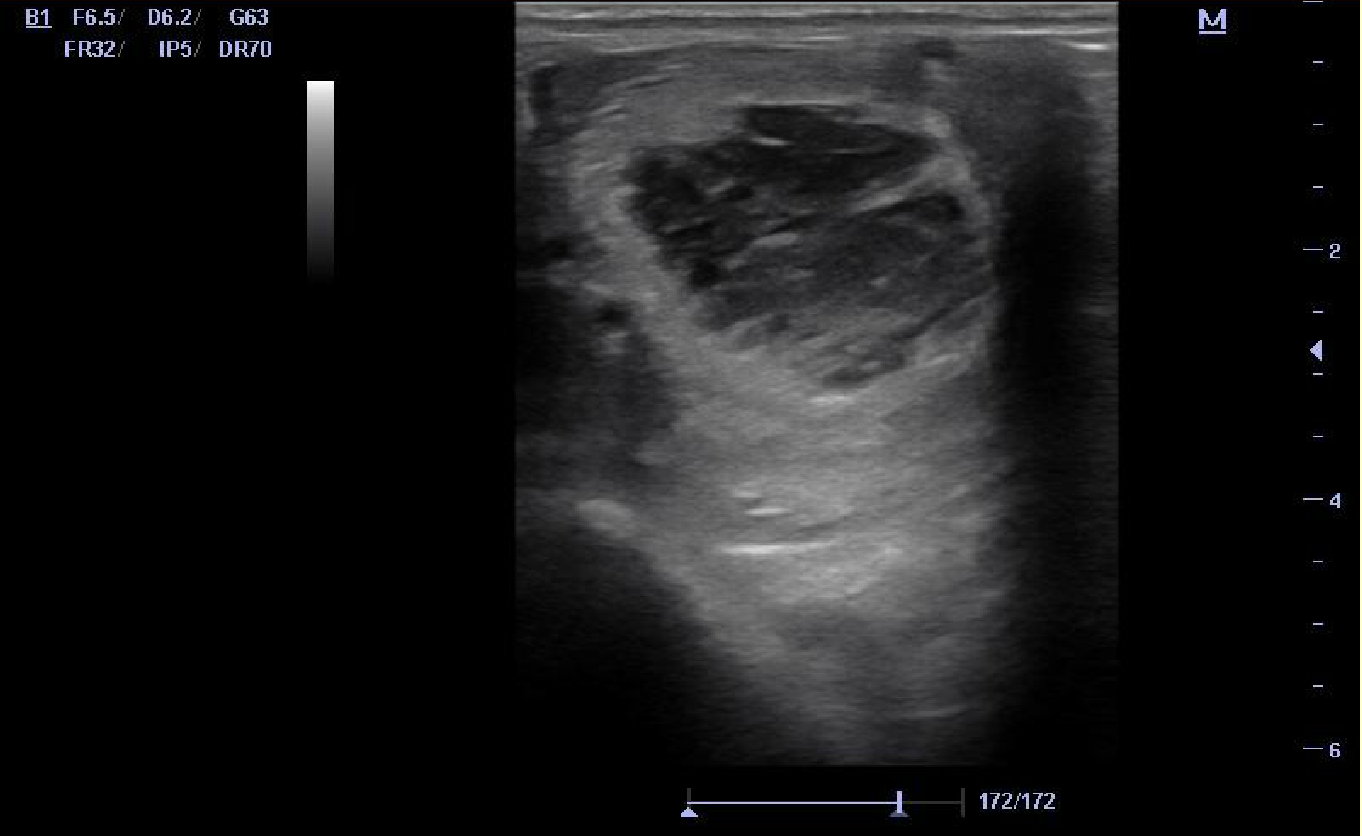

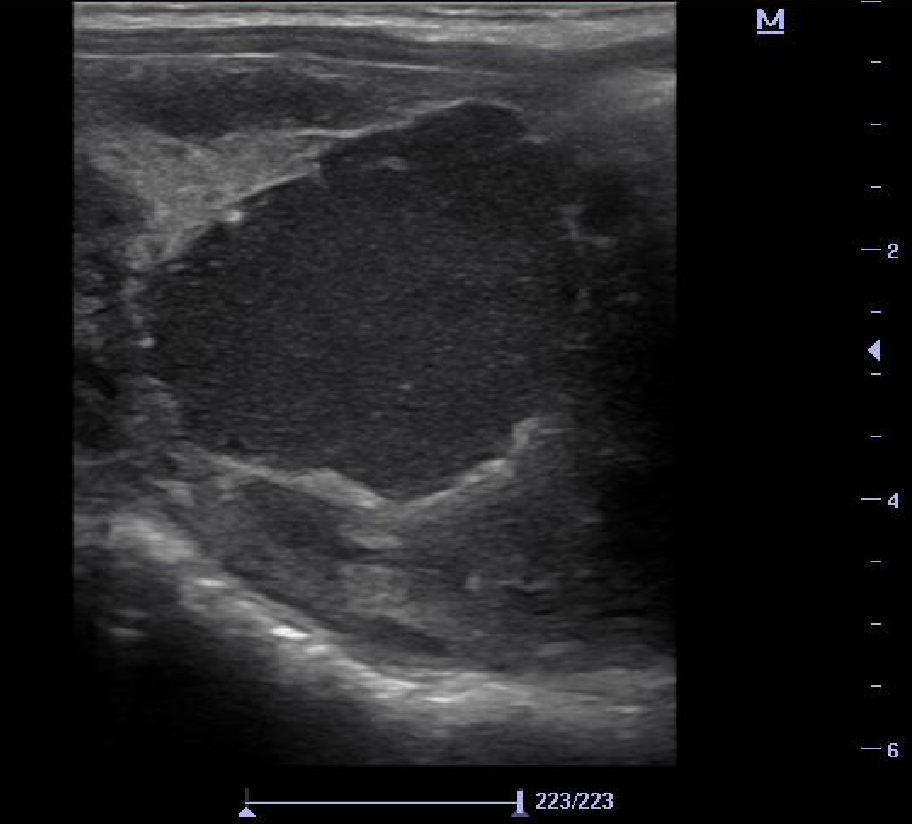

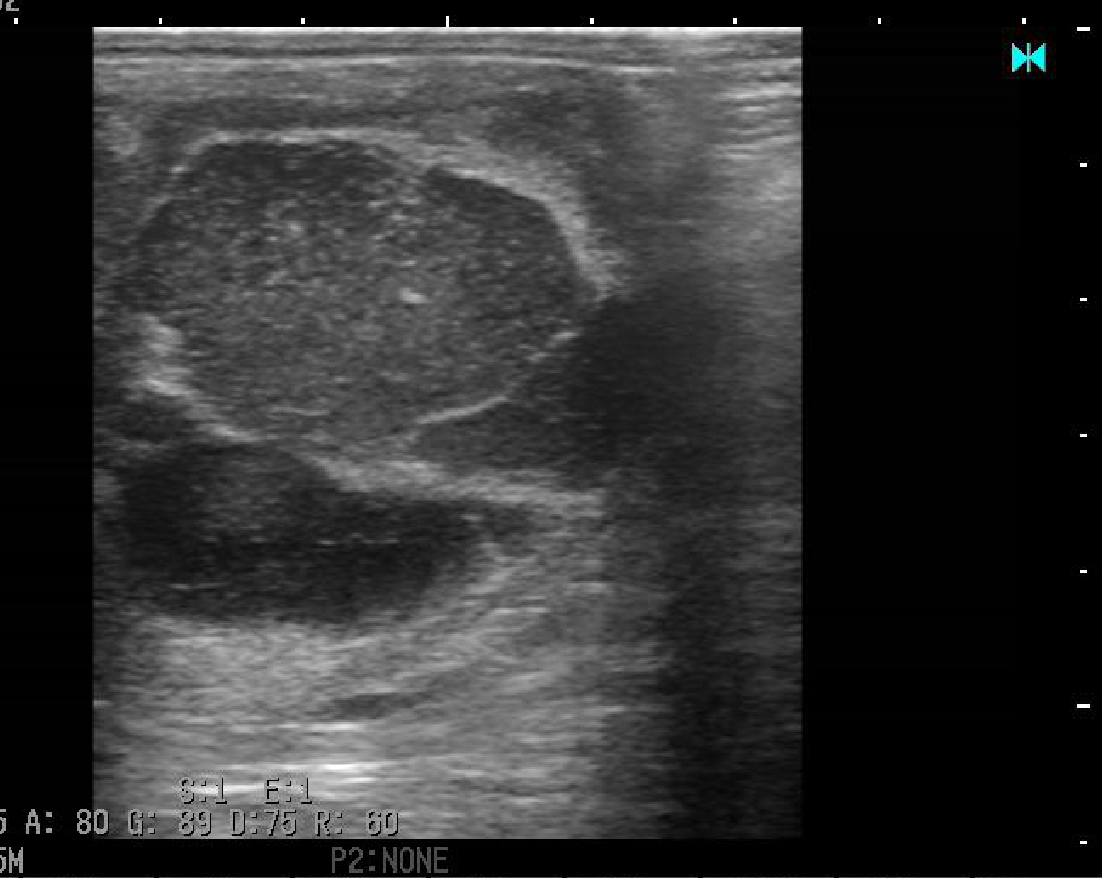

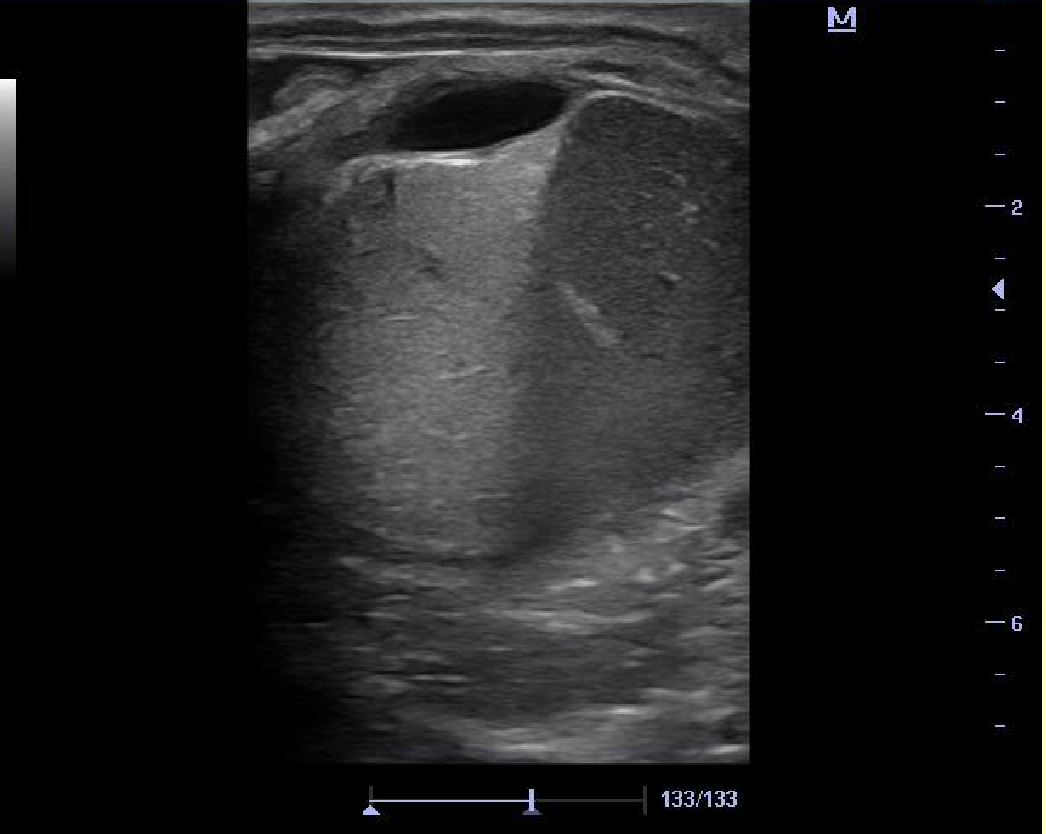

• Dense haemorrhage into follicle


•

• Follicular haemorrhage but had ovulated 6h later


•

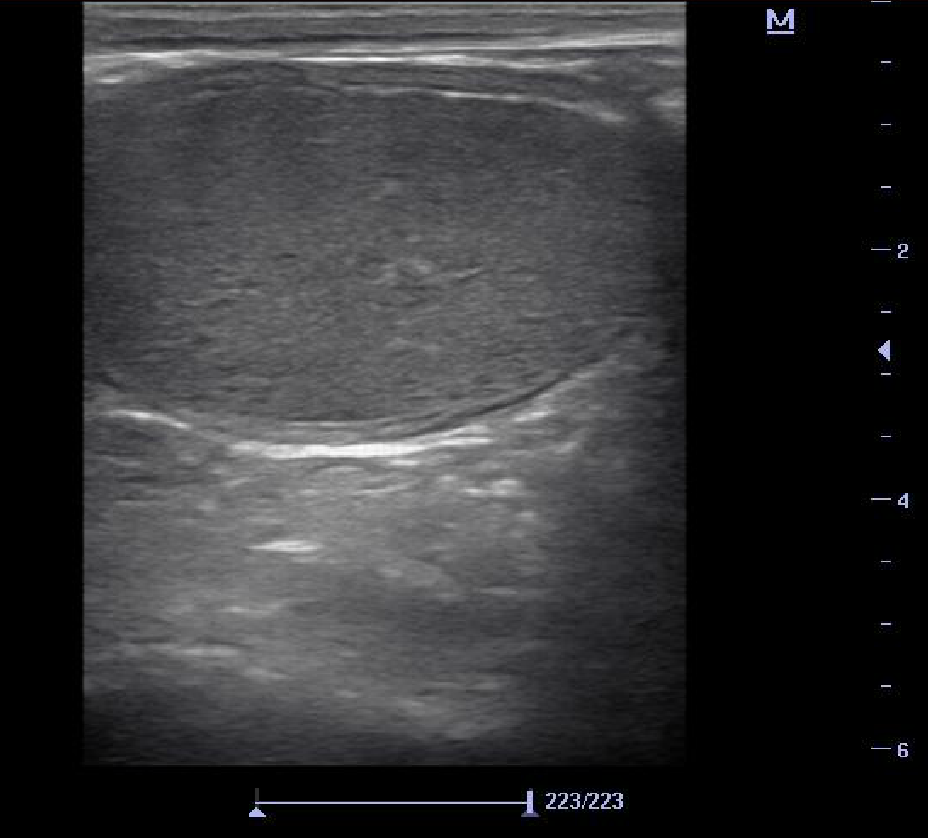

• Follicular haemorrhage


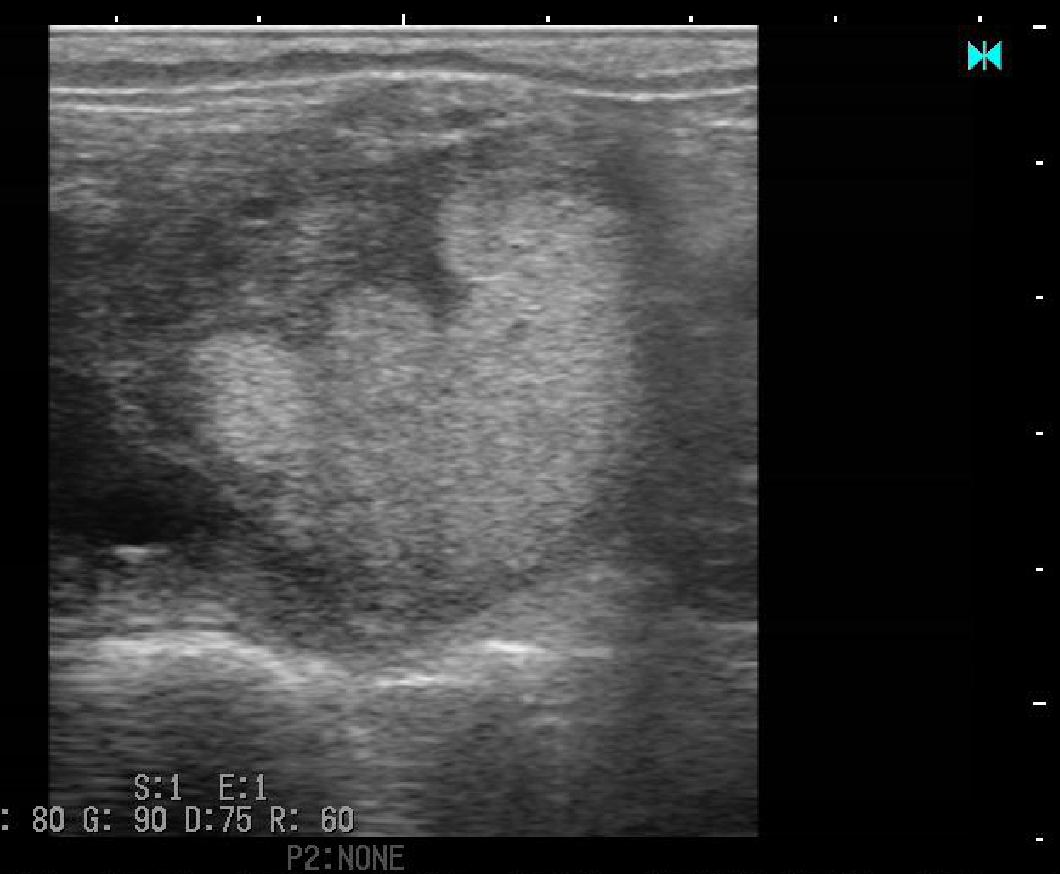

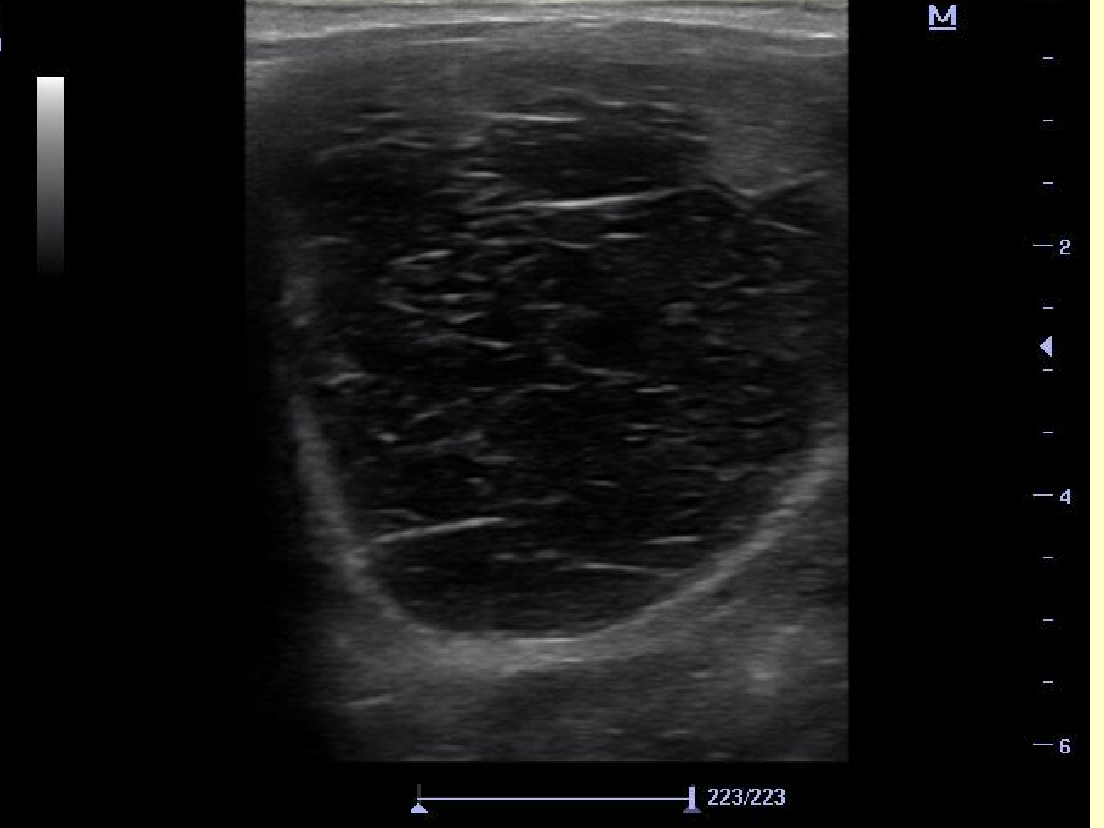

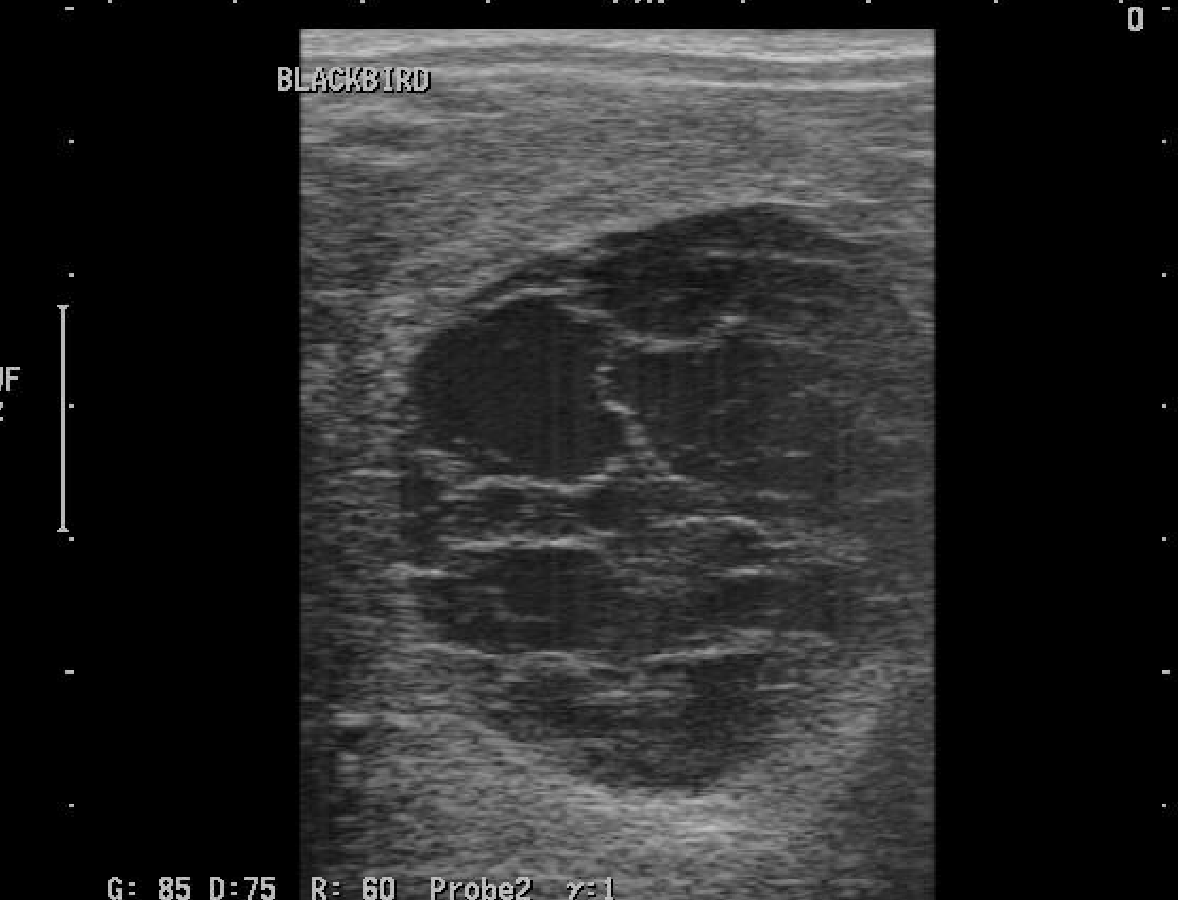

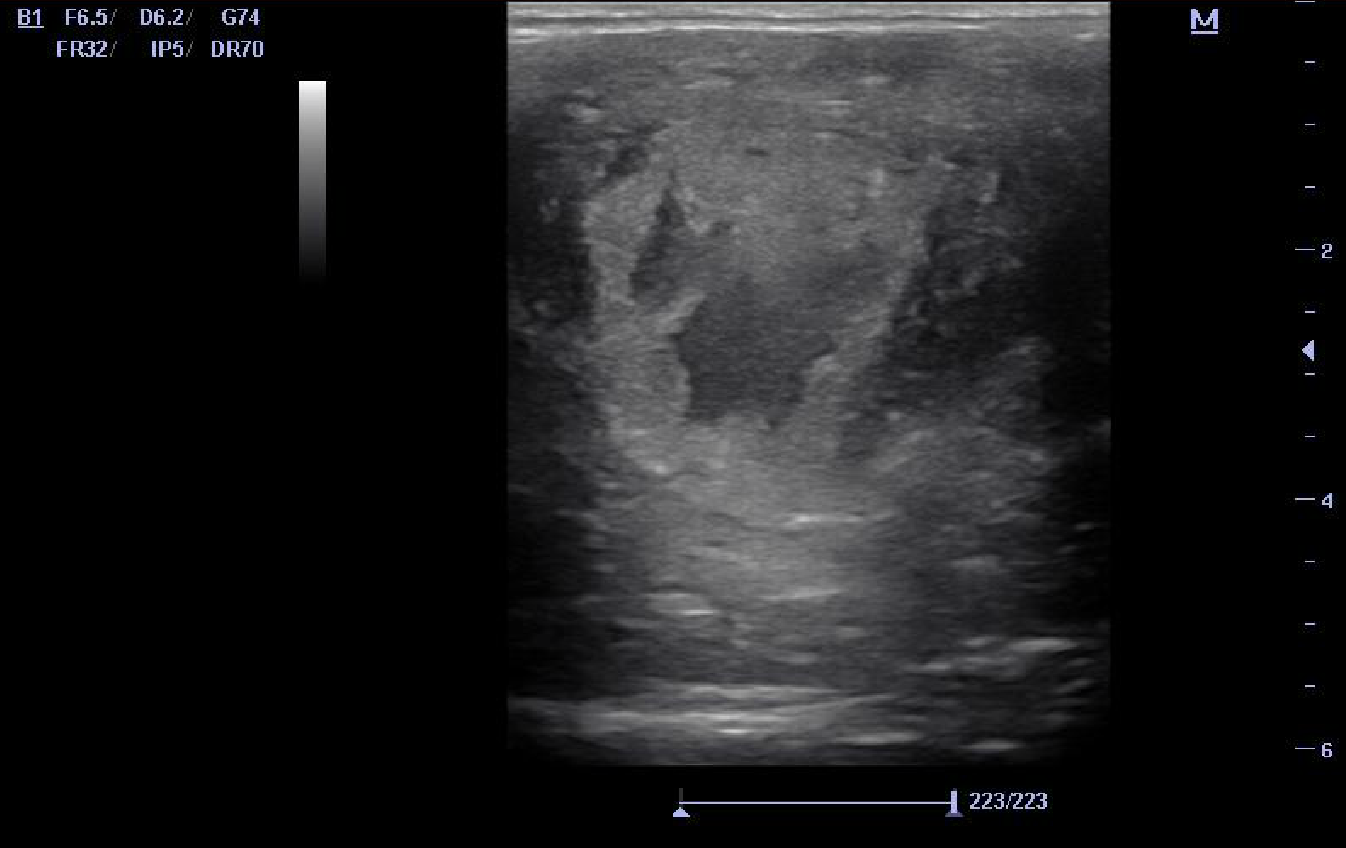

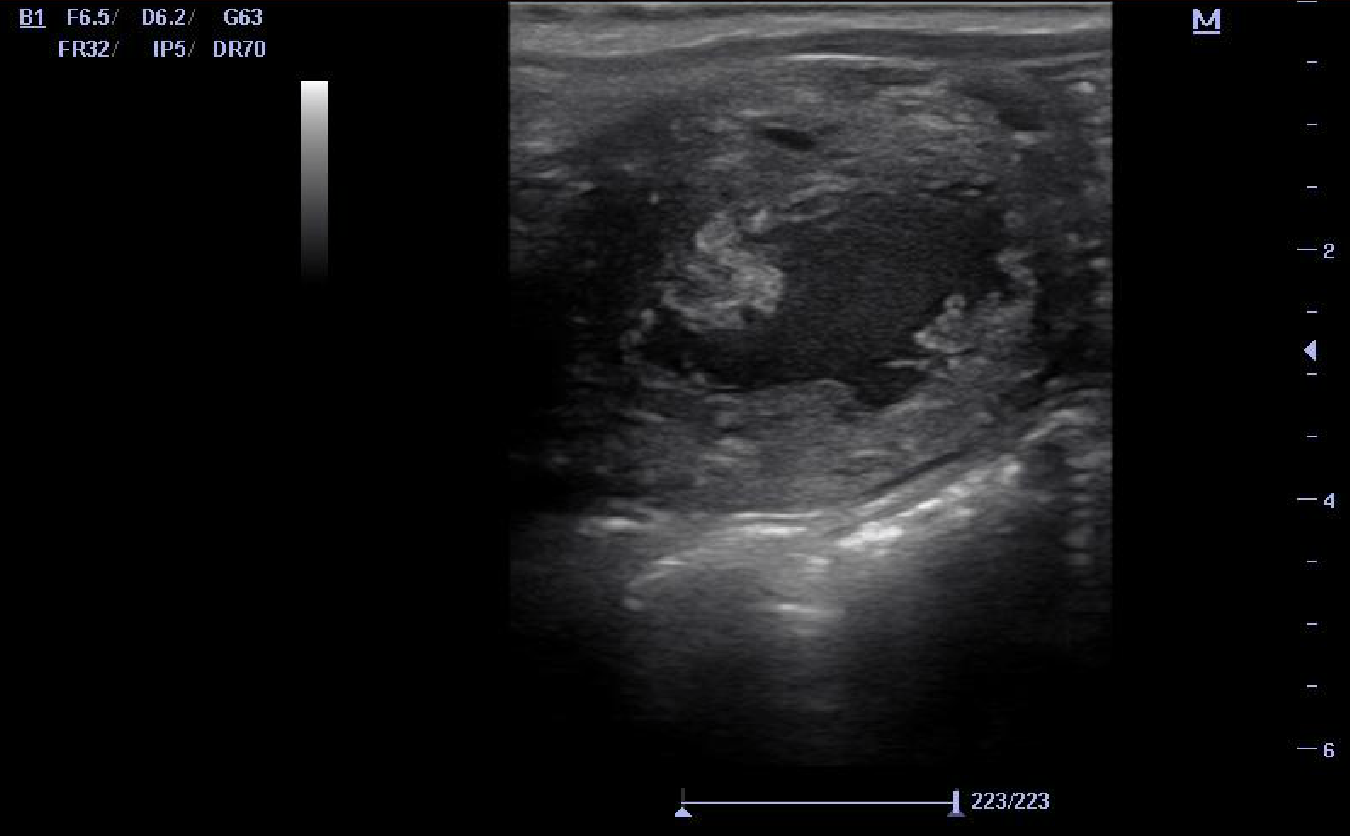

• Haemorrhagic follicle beginning to organize


•

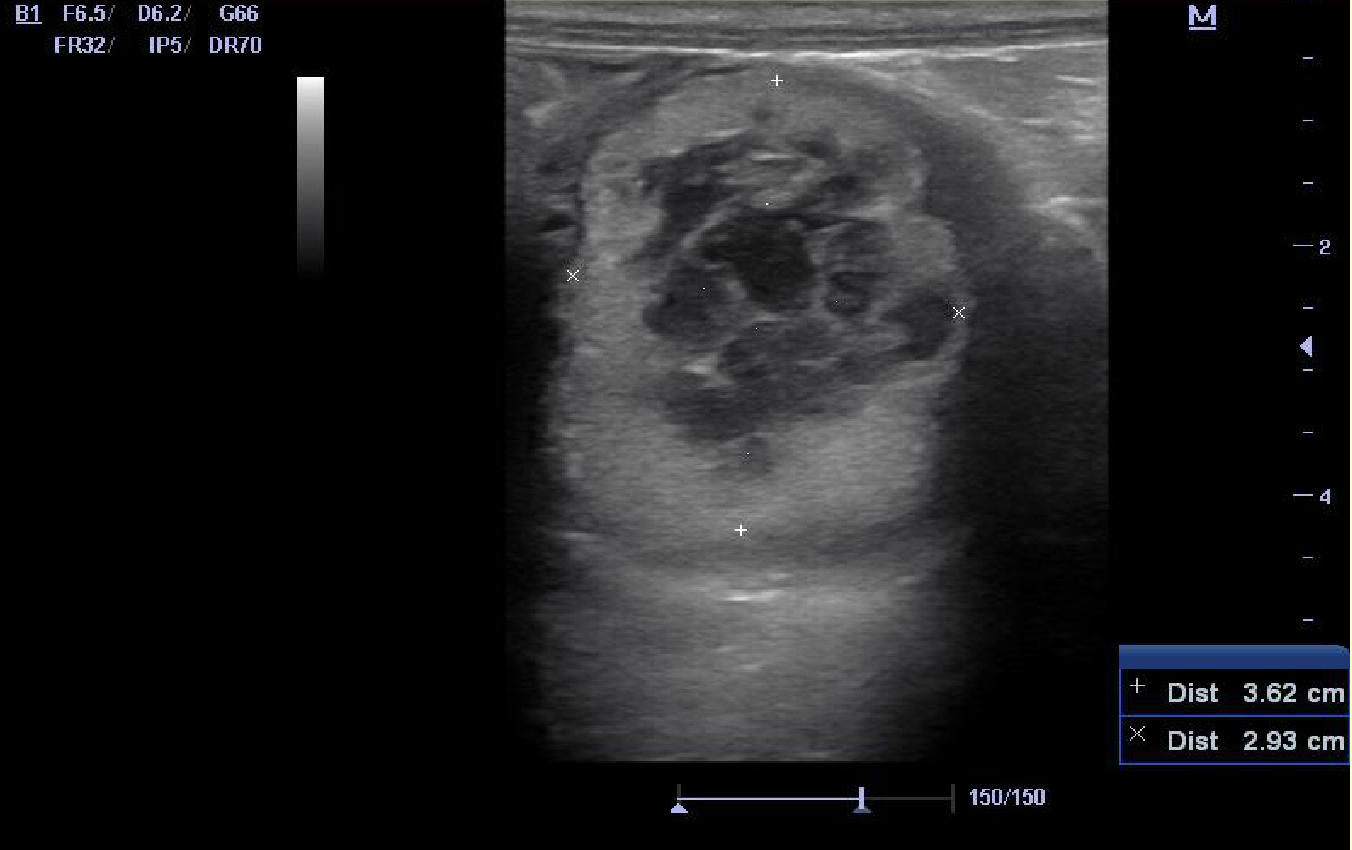

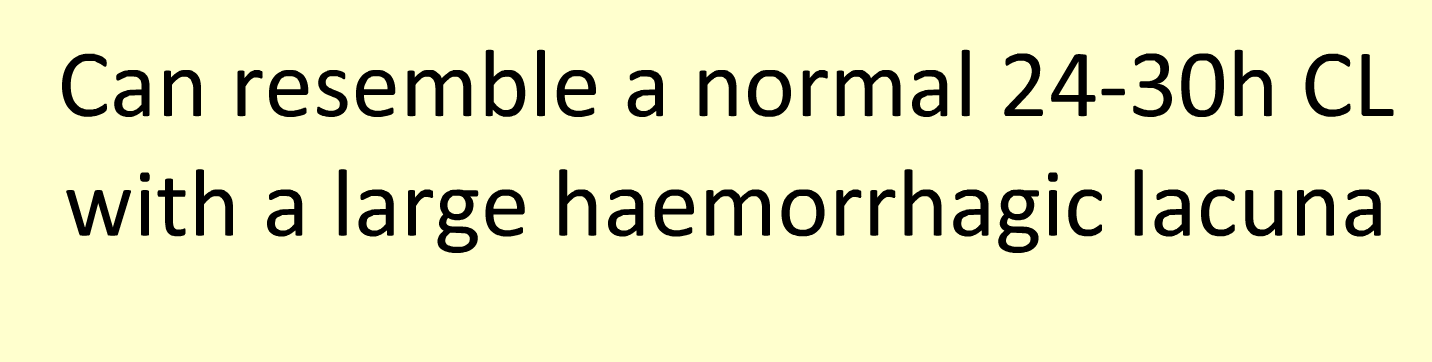

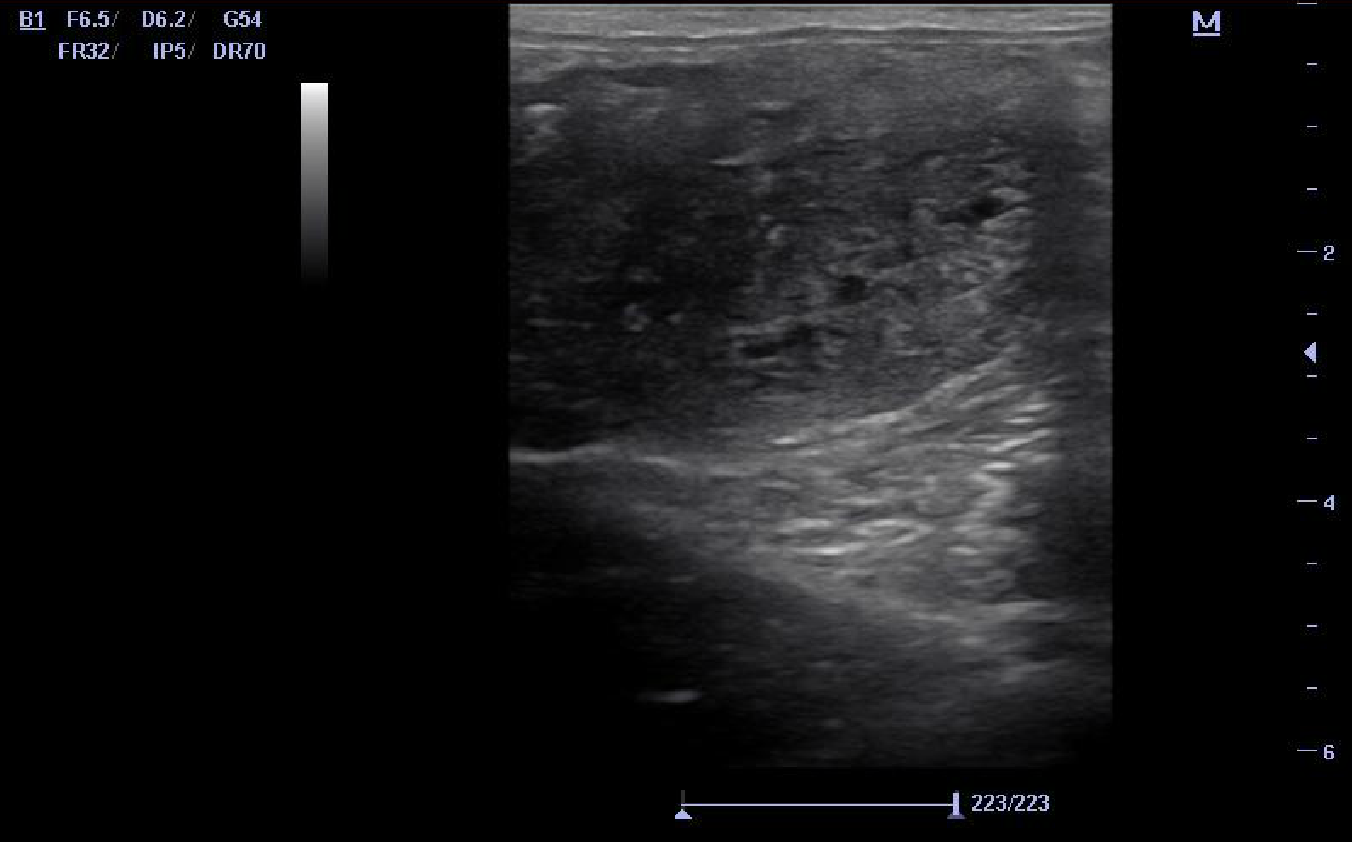

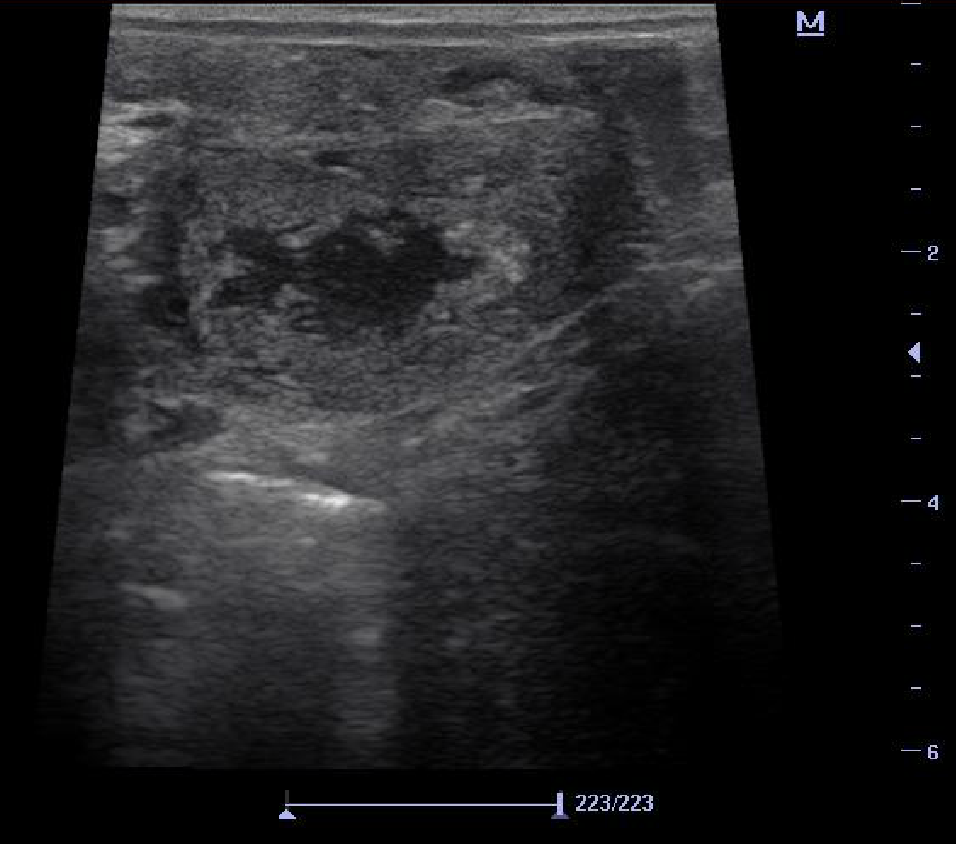

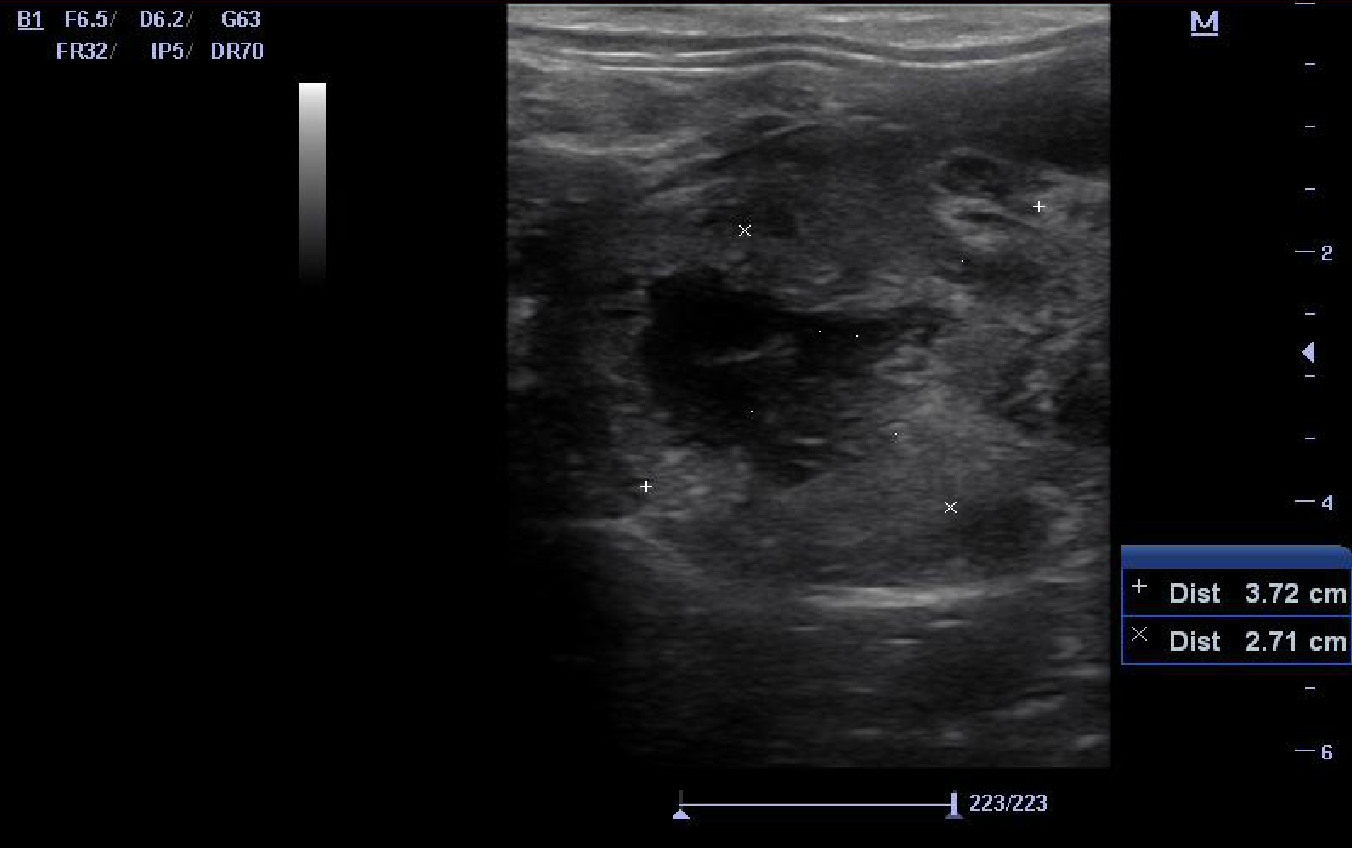

• Normal day 6 CL with large lacuna


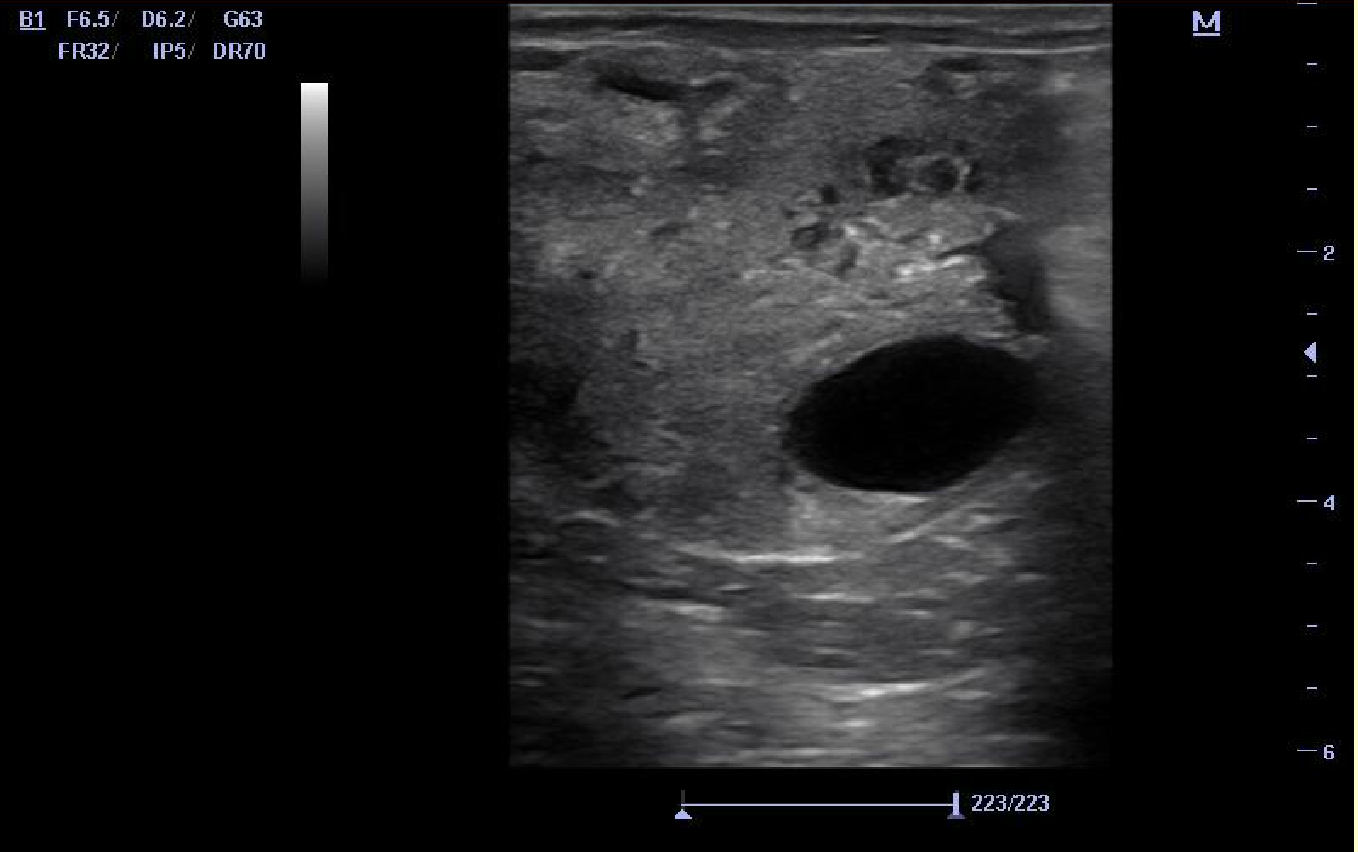

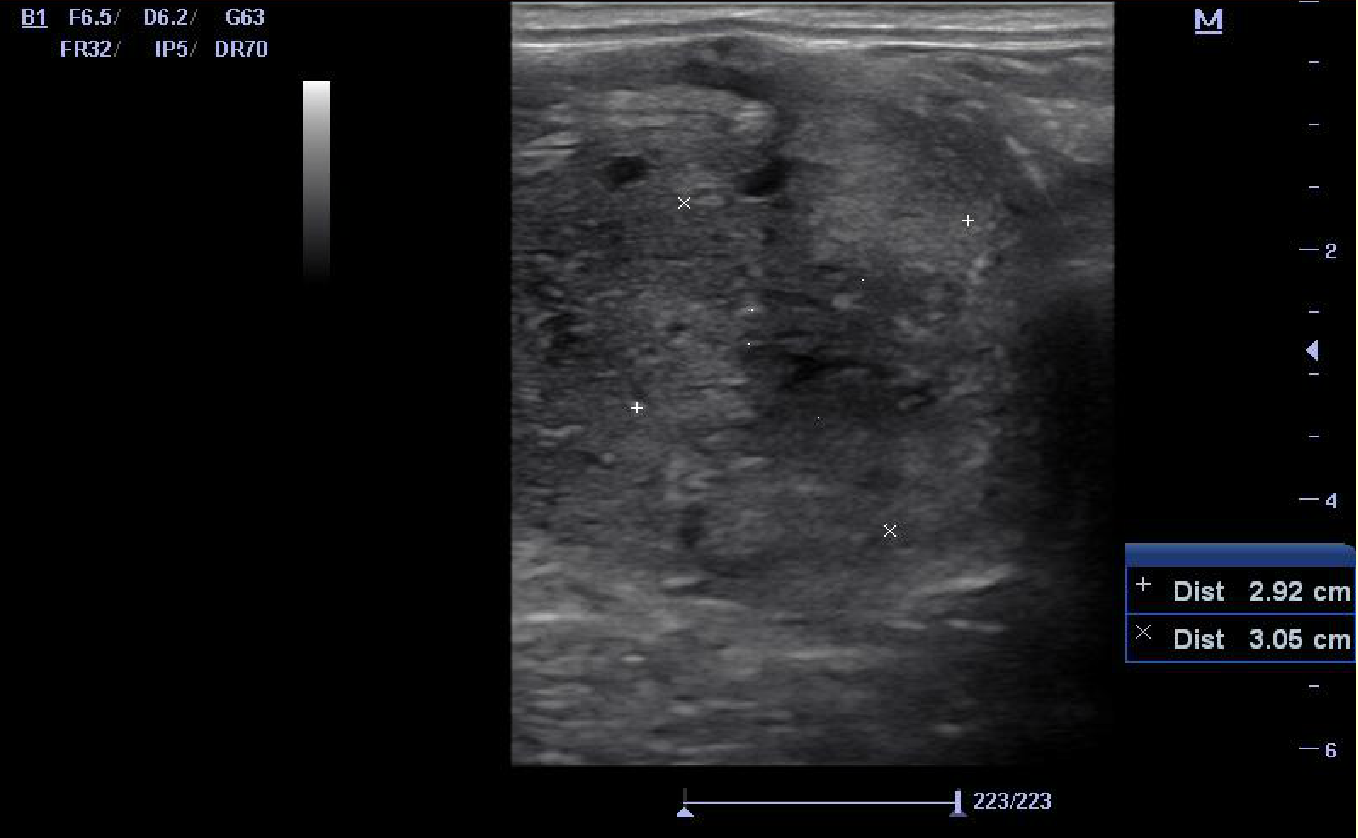

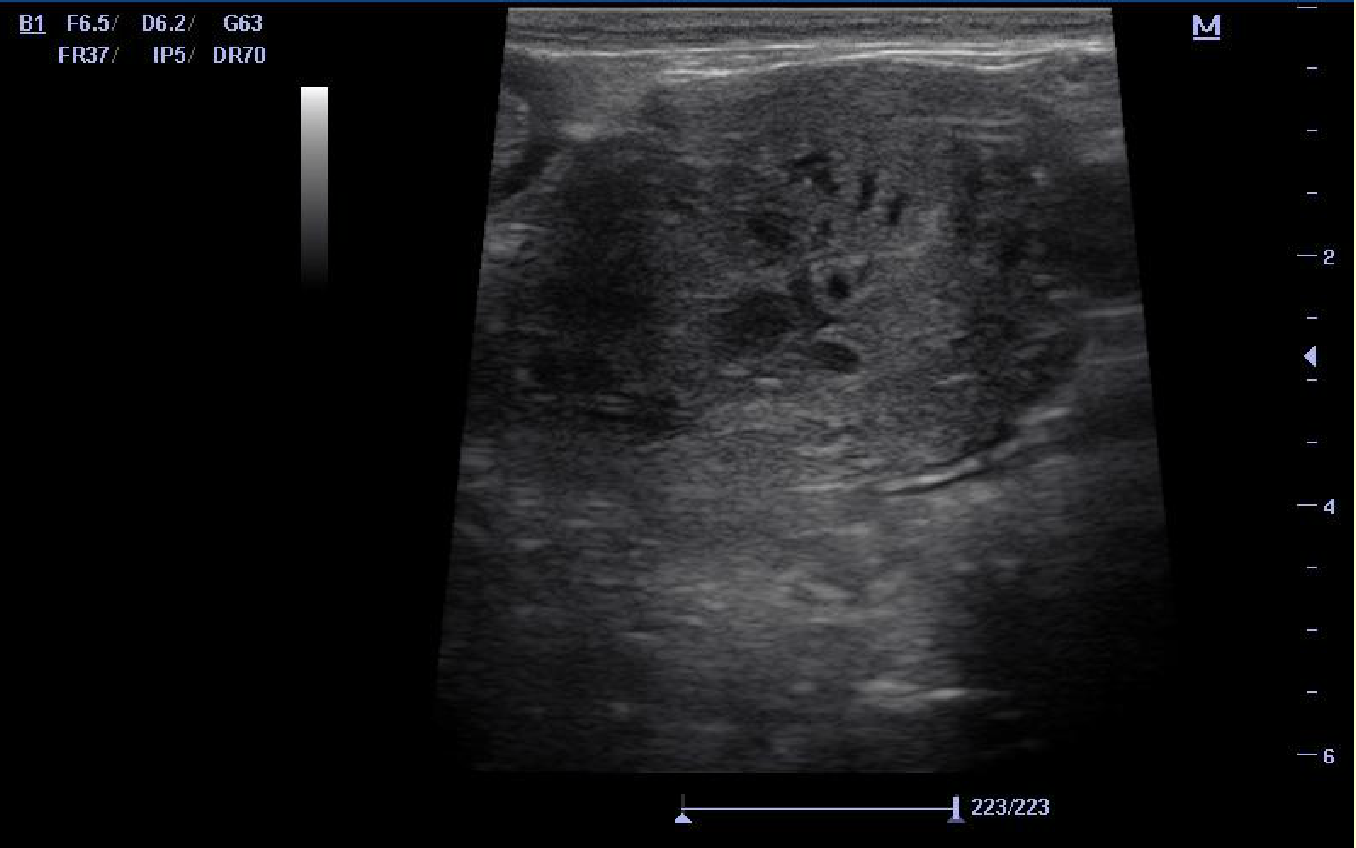

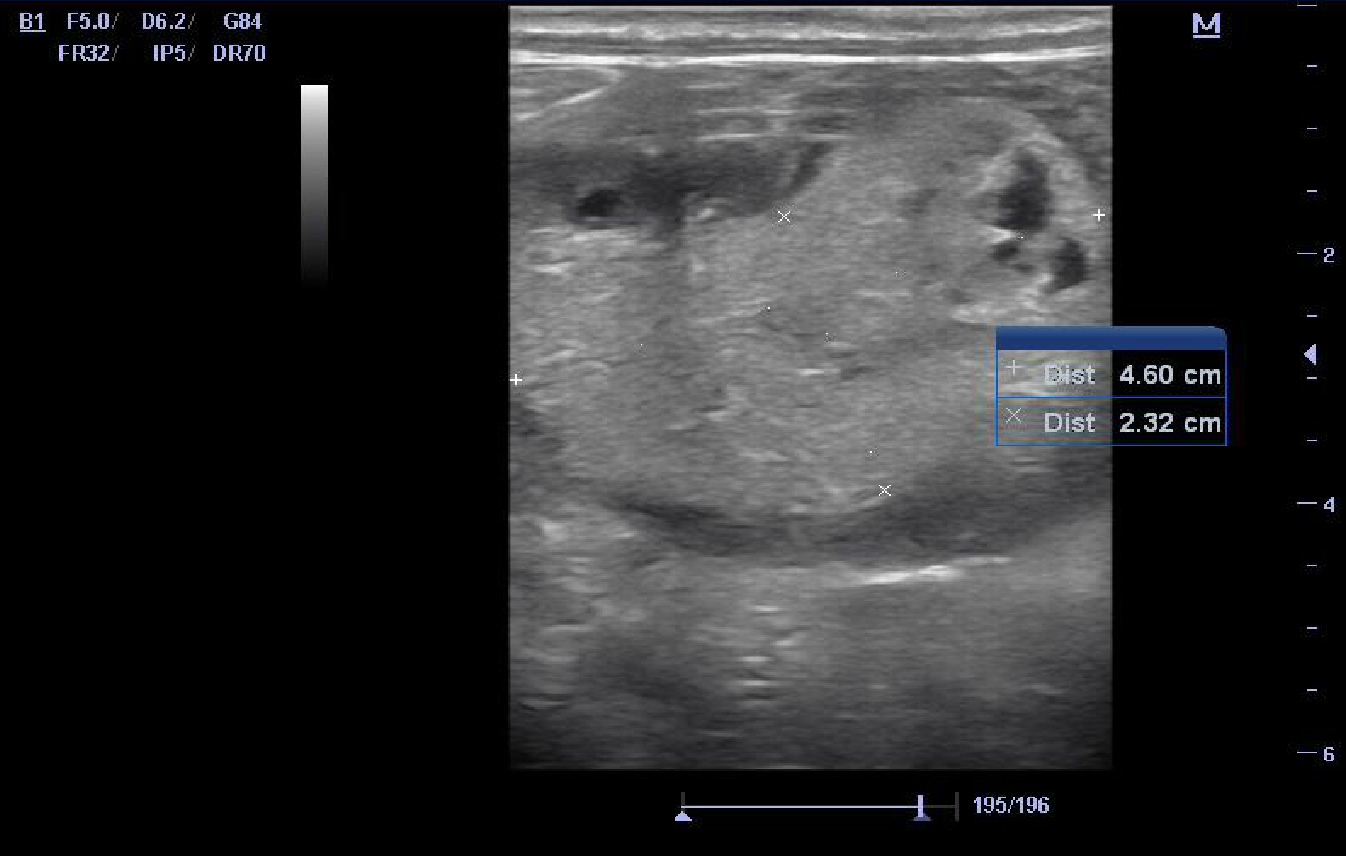

• Normal CL for comparison

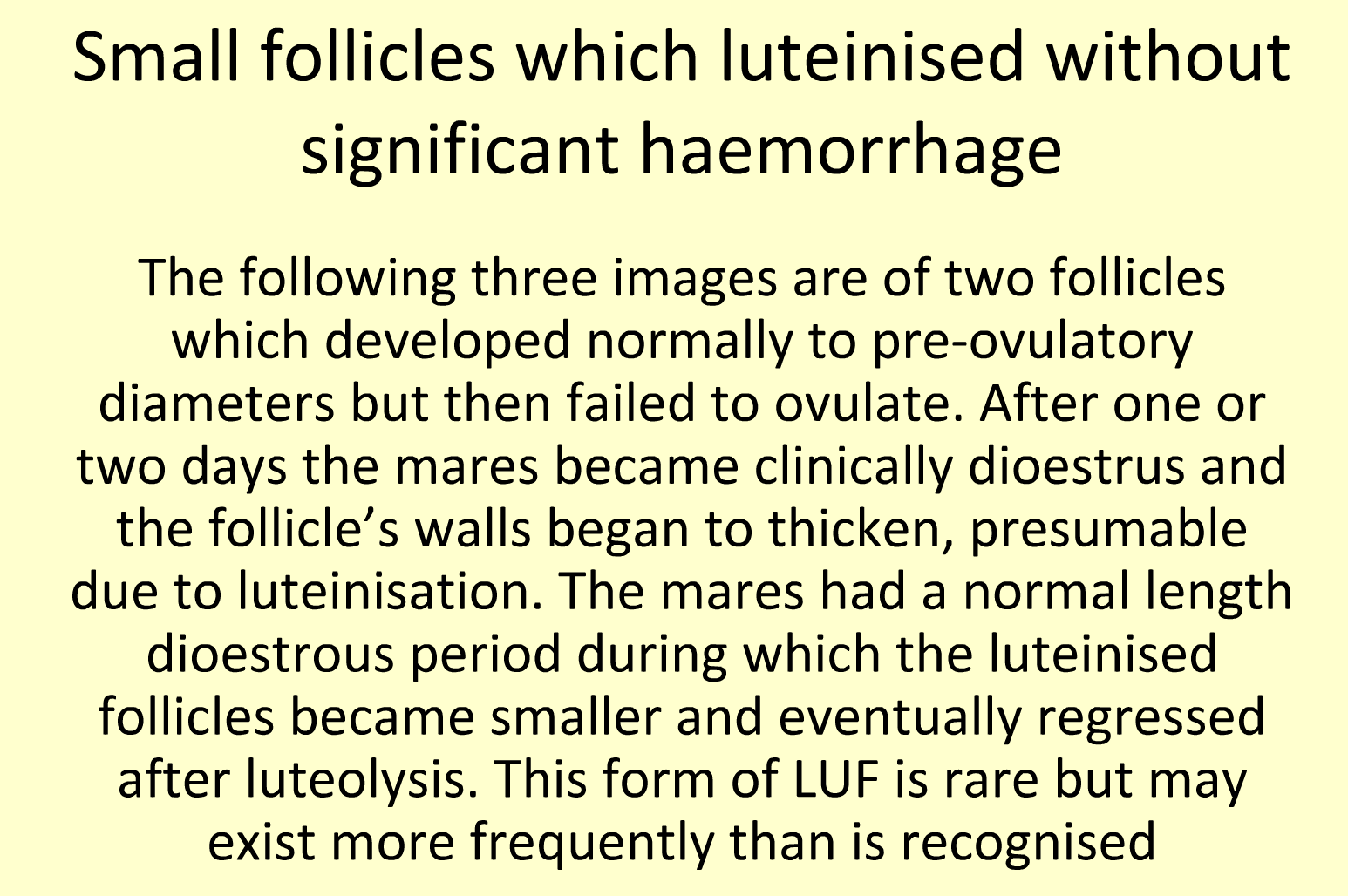

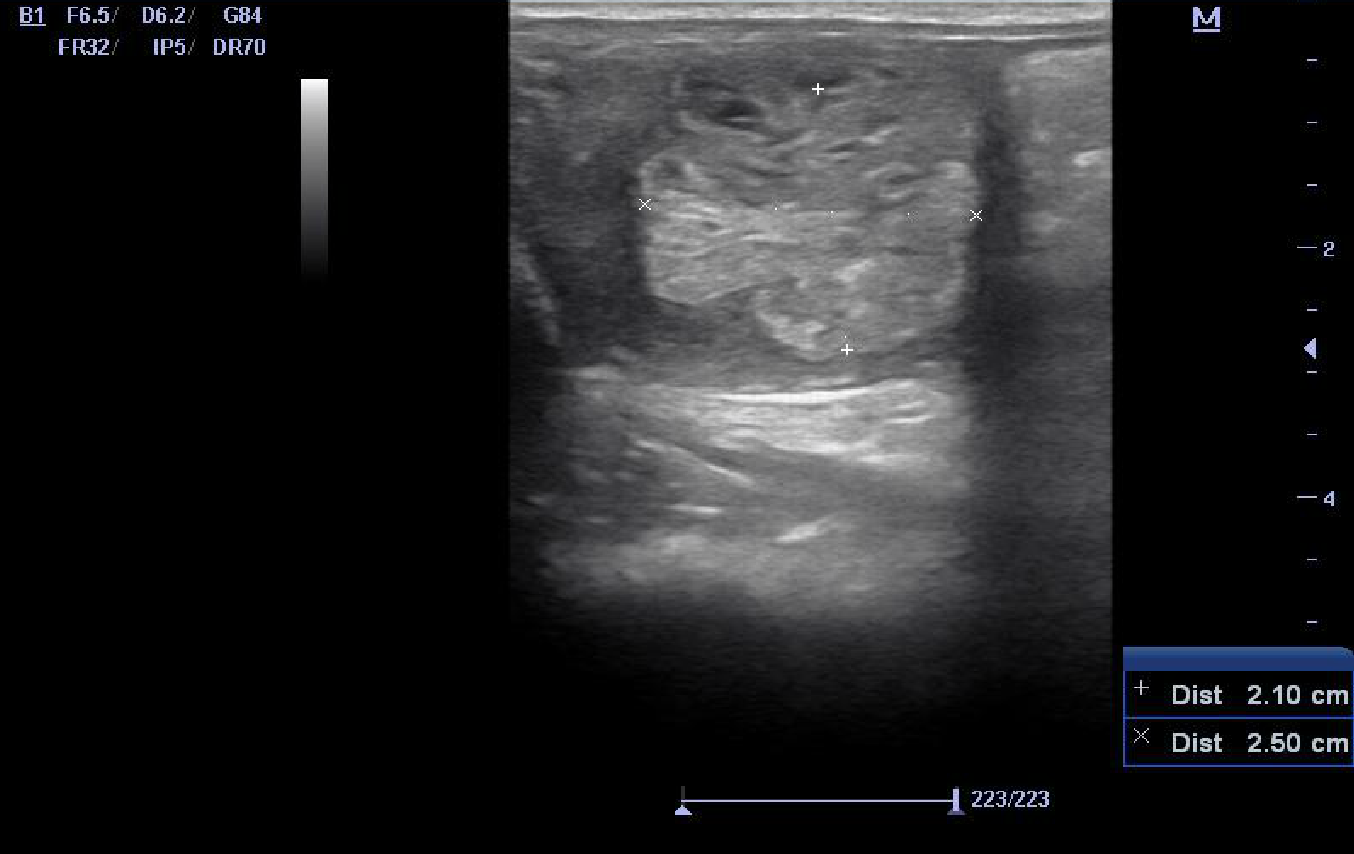

• Luteinized follicle


• Follicle with haemorrhage started 24h ago


•

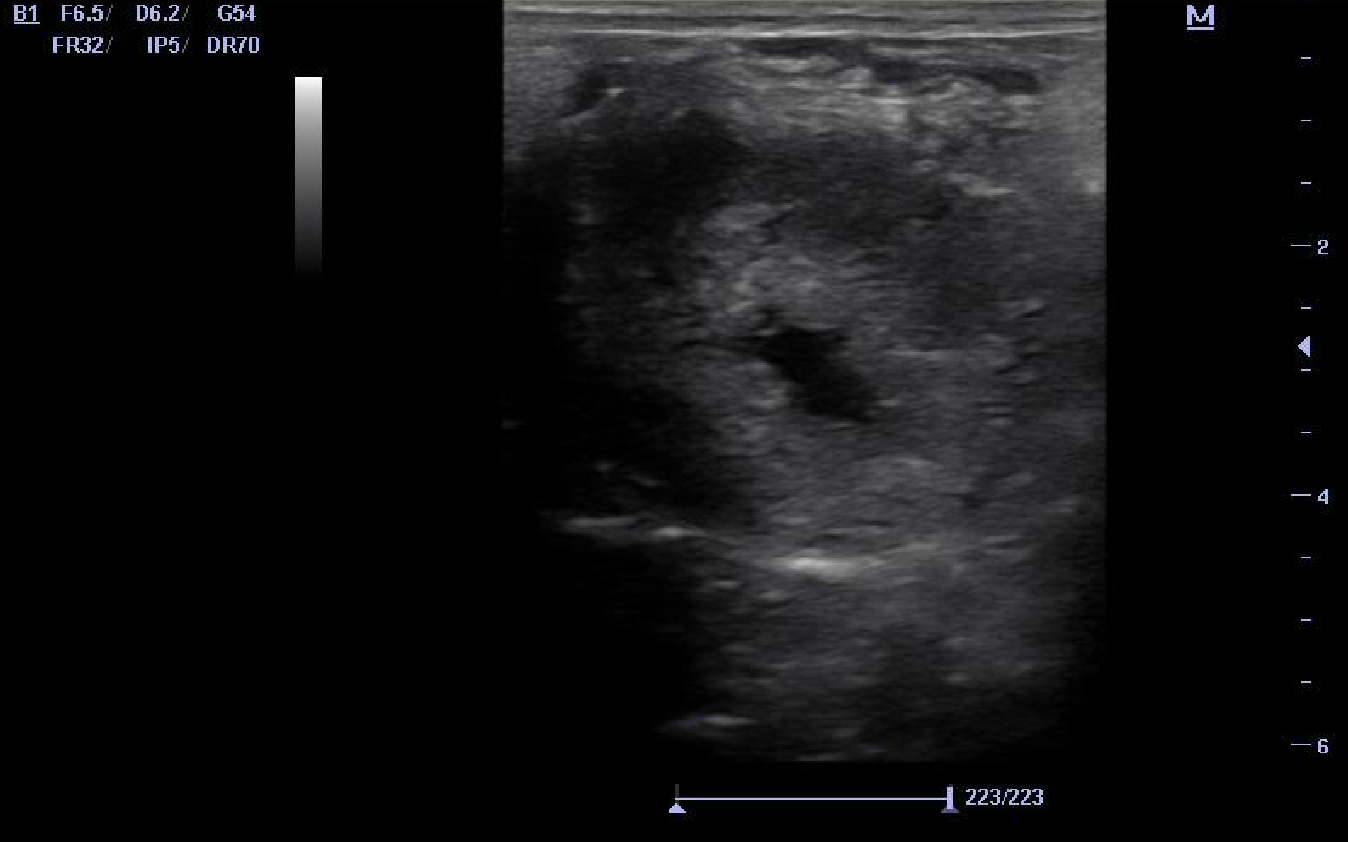

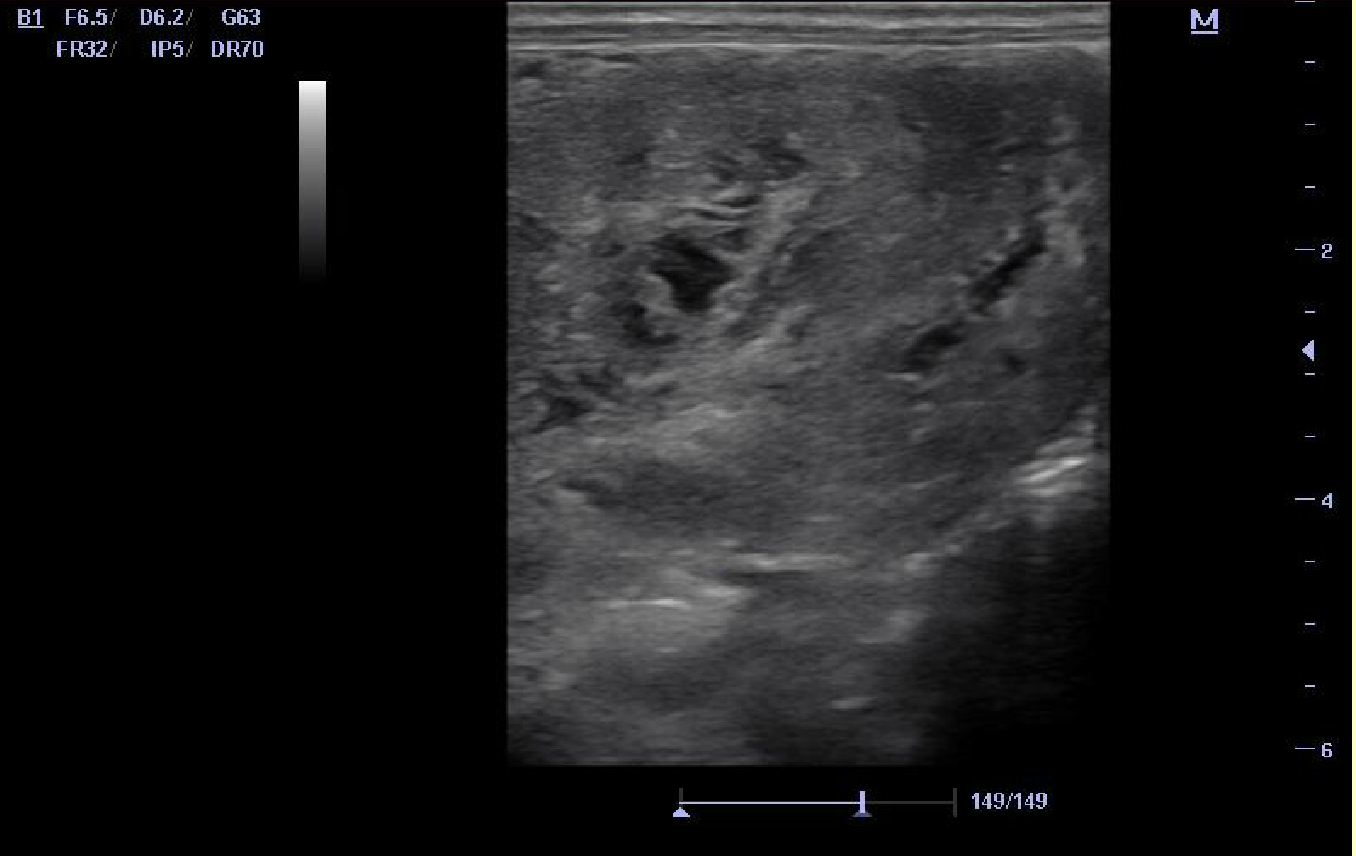

• 28h CL

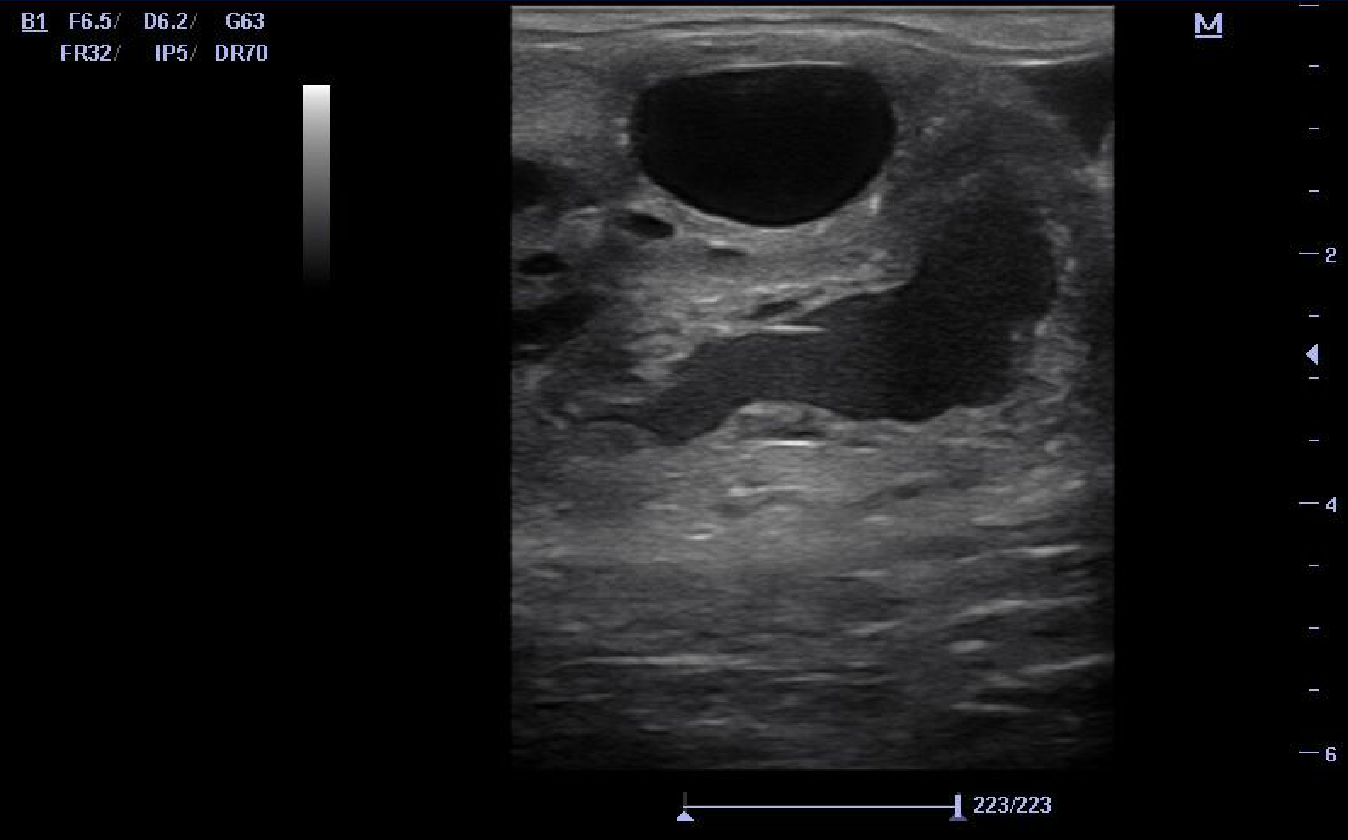

• Partially collapsed haemorrhagic follicle


• Partially collapsed normal follicle


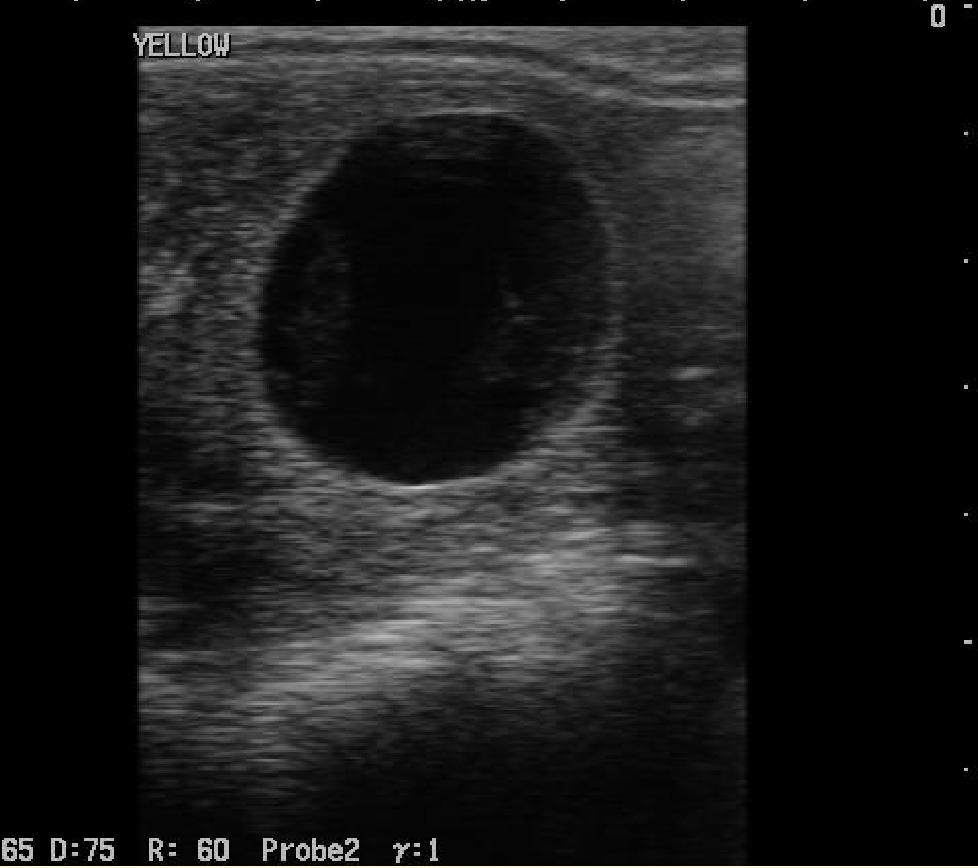

• Normal follicle 6h previously


• same follicle 8h later

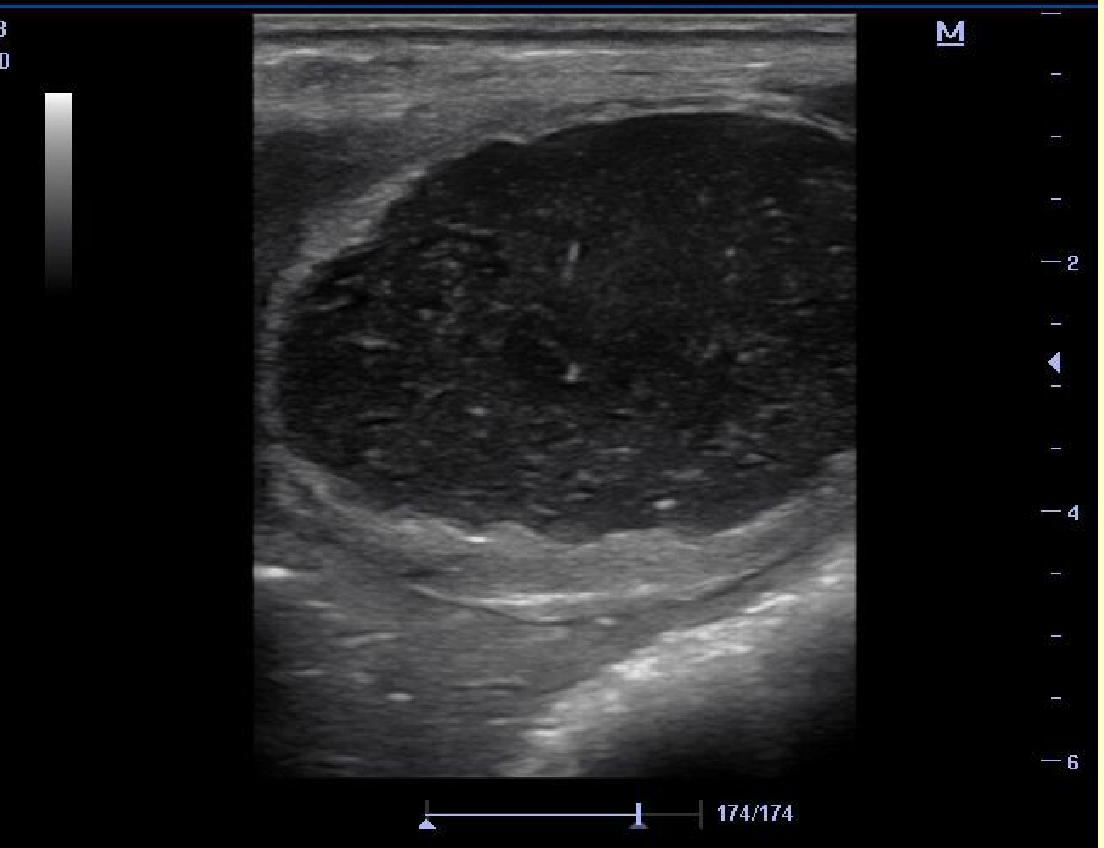

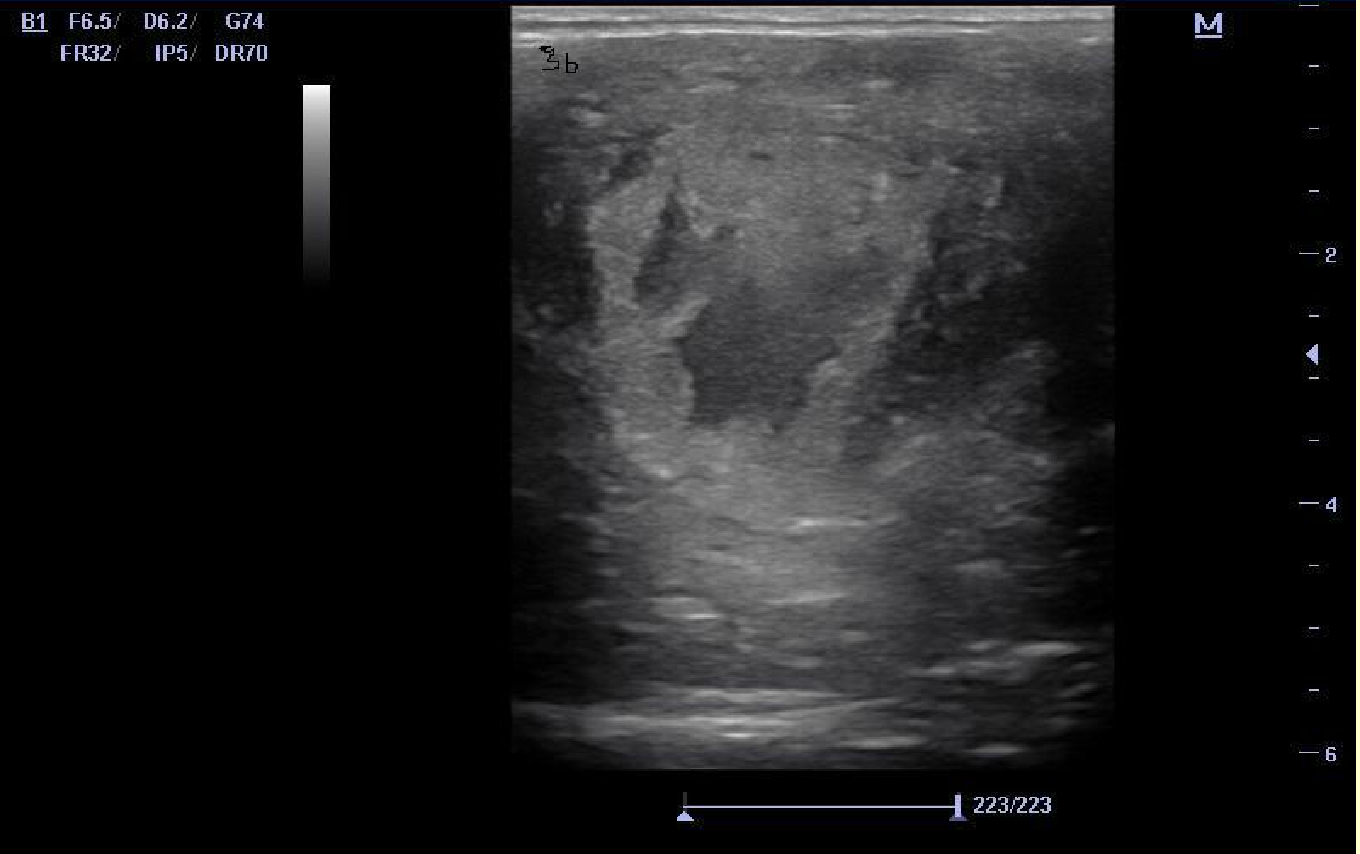

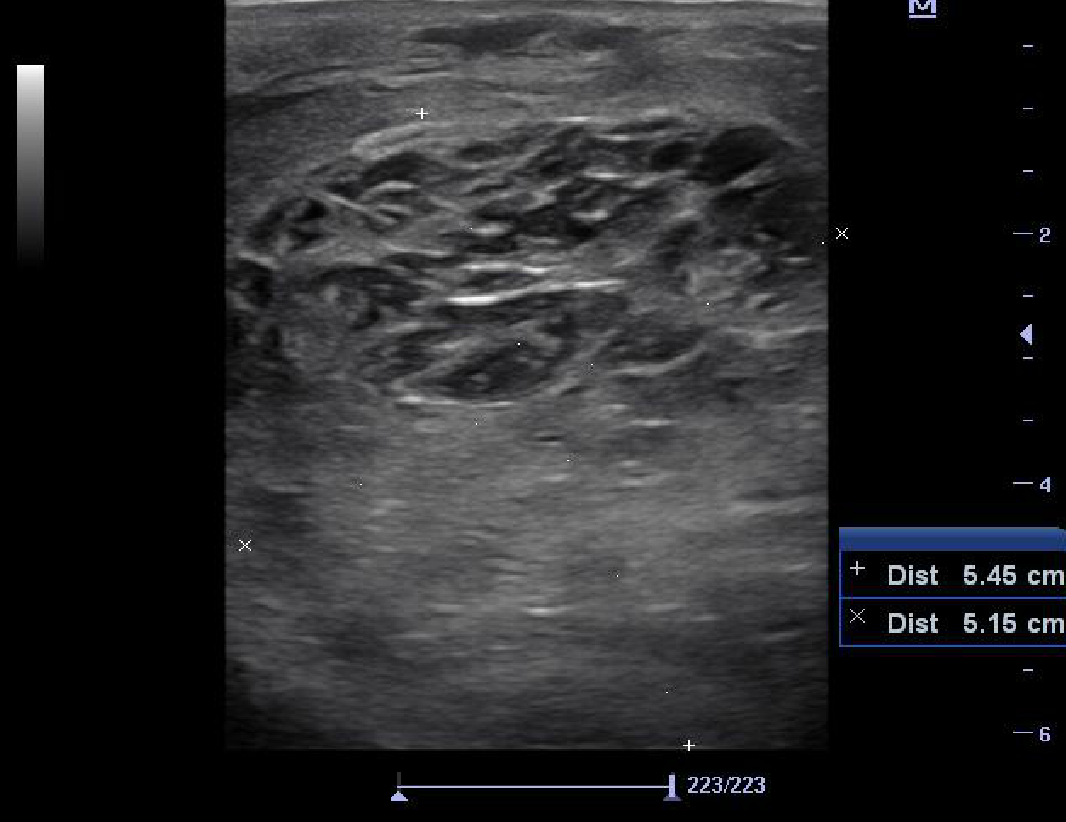

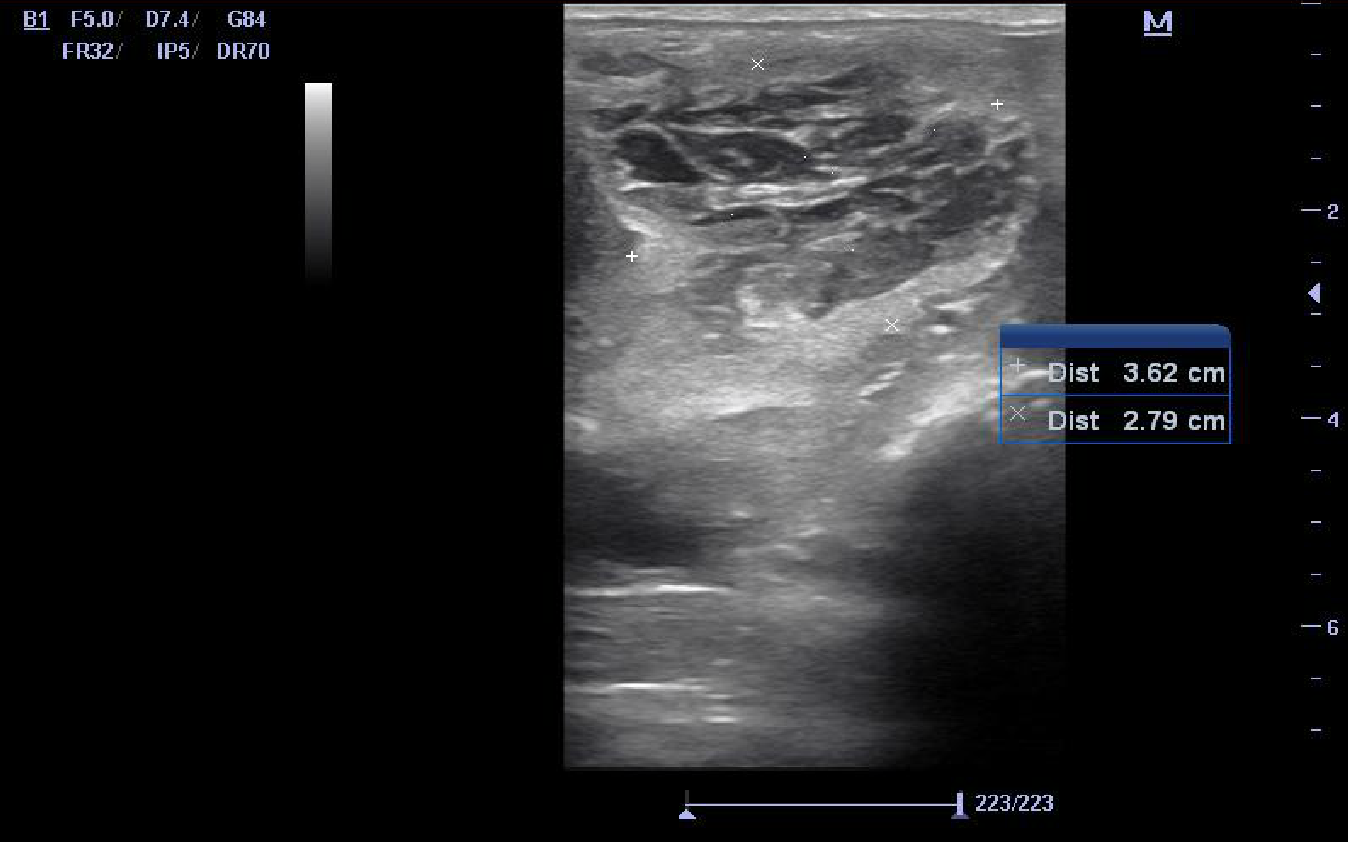

• Haemorrhagic follicle


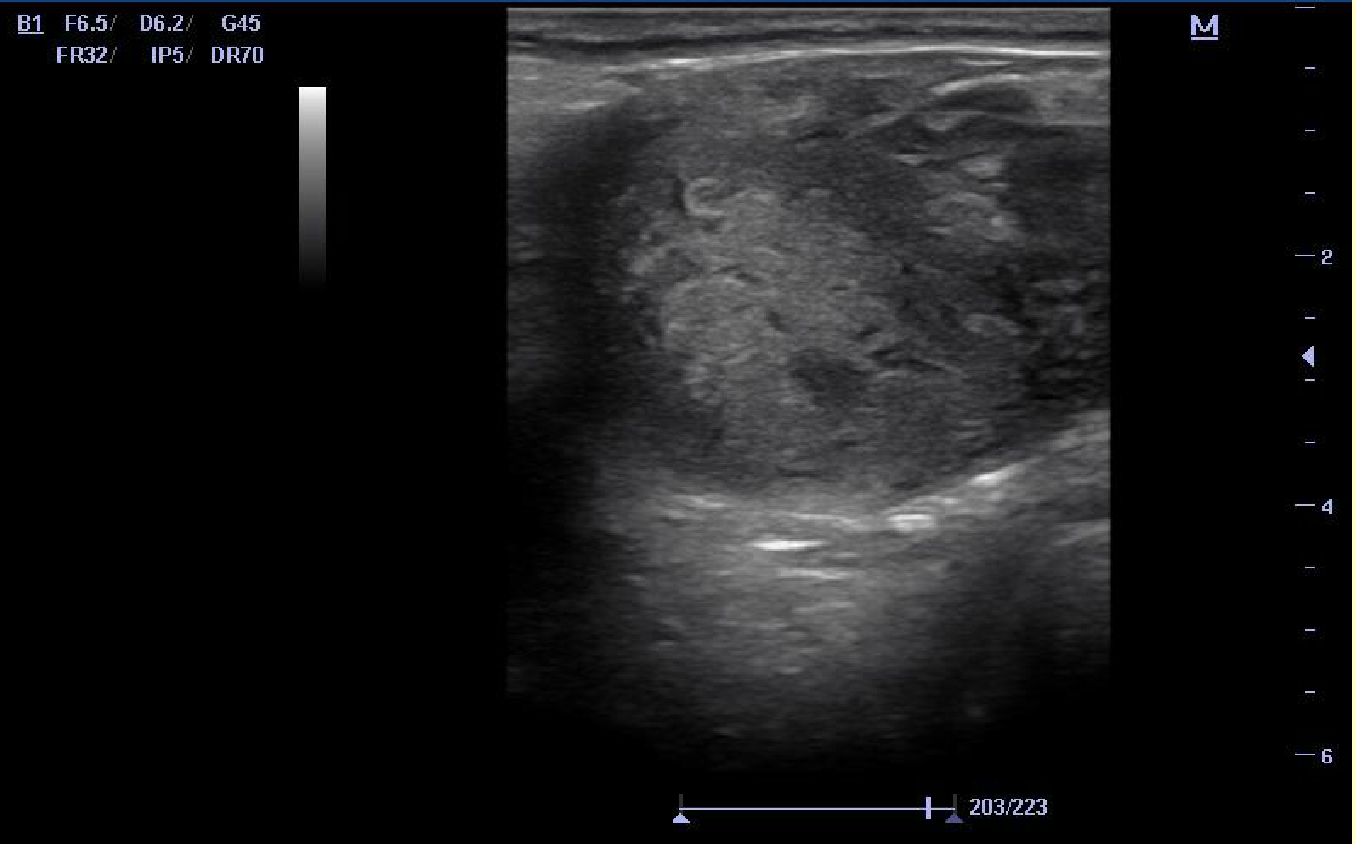

• Luteinised follicle


•

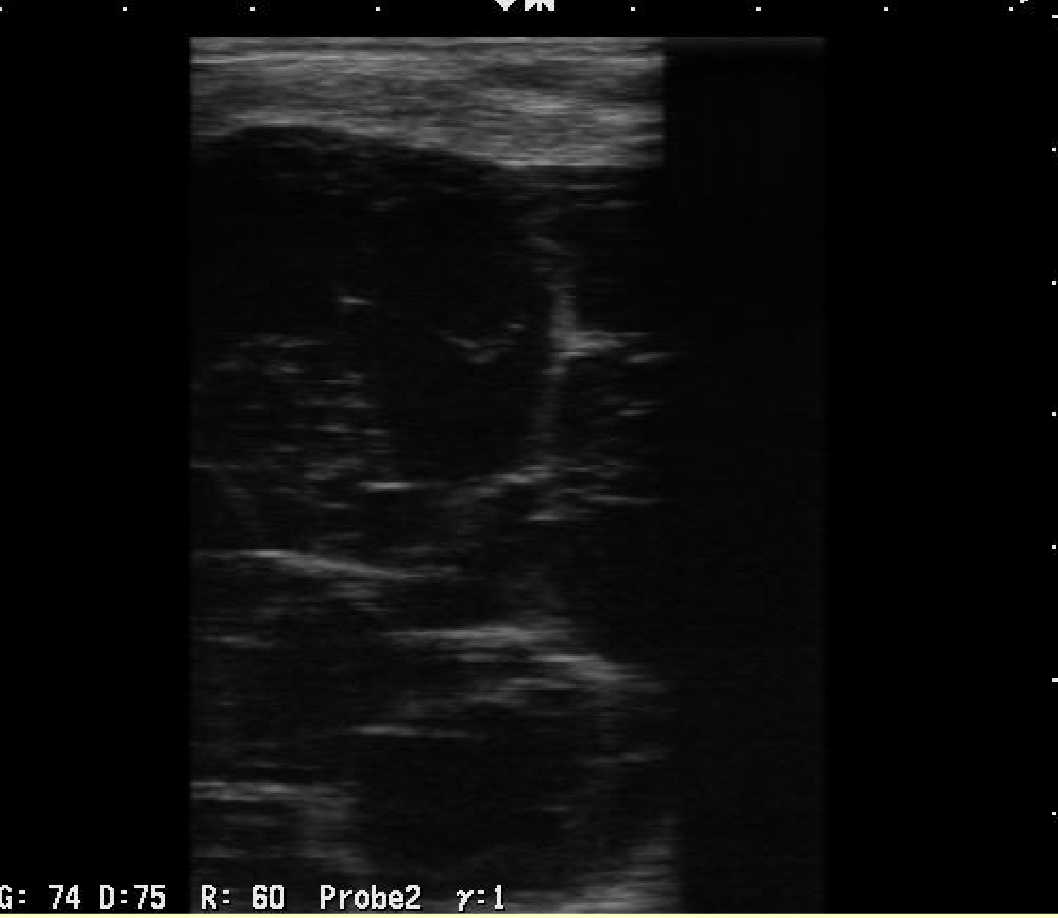

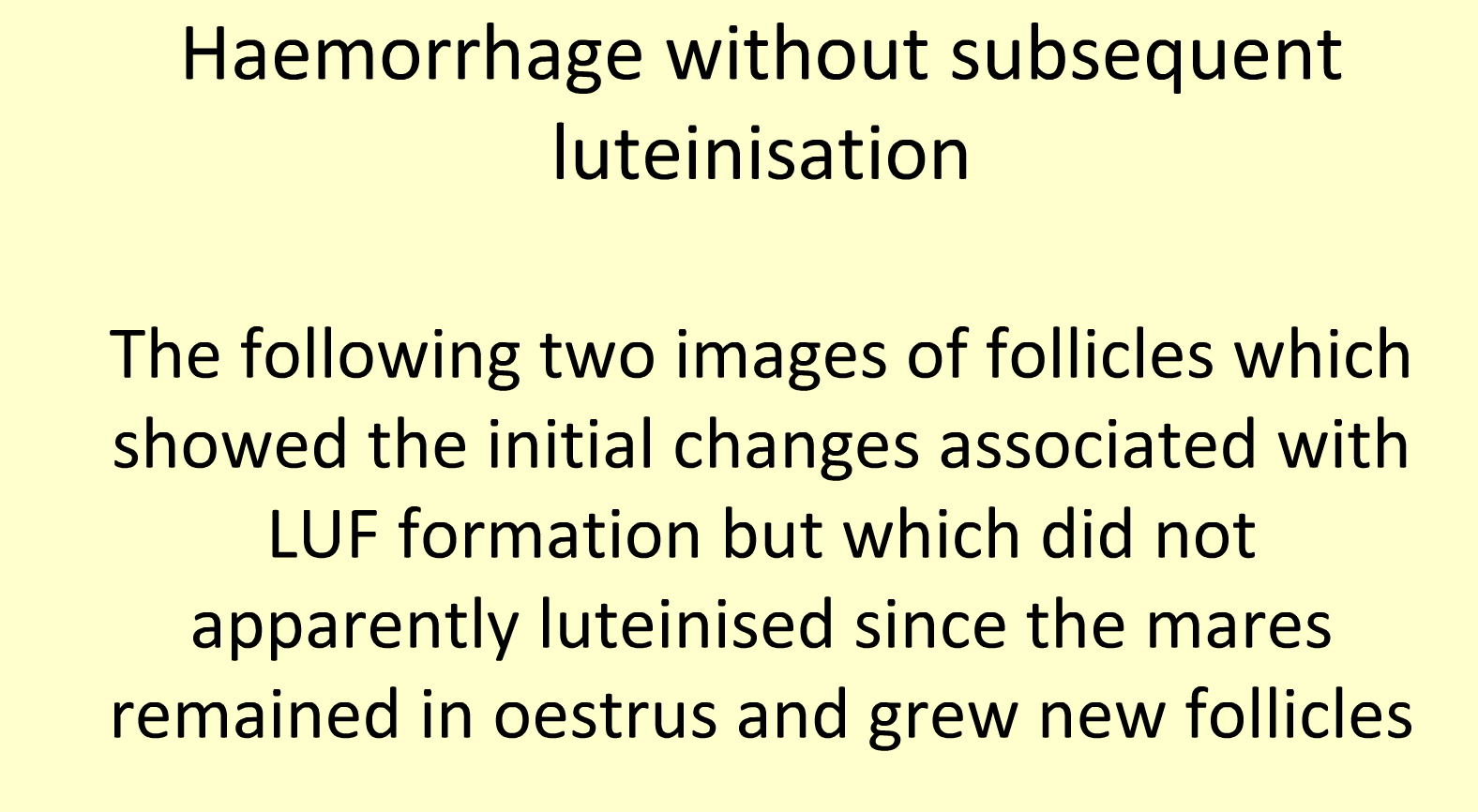

• Non luteinised follicle


•

• Regressed without luteinisation


• Haemorrhagic follicle without luteinisation


•

• Apparently normal preovulatory follicle which luteinised without haemorrhage


• Thickened follicluar wall


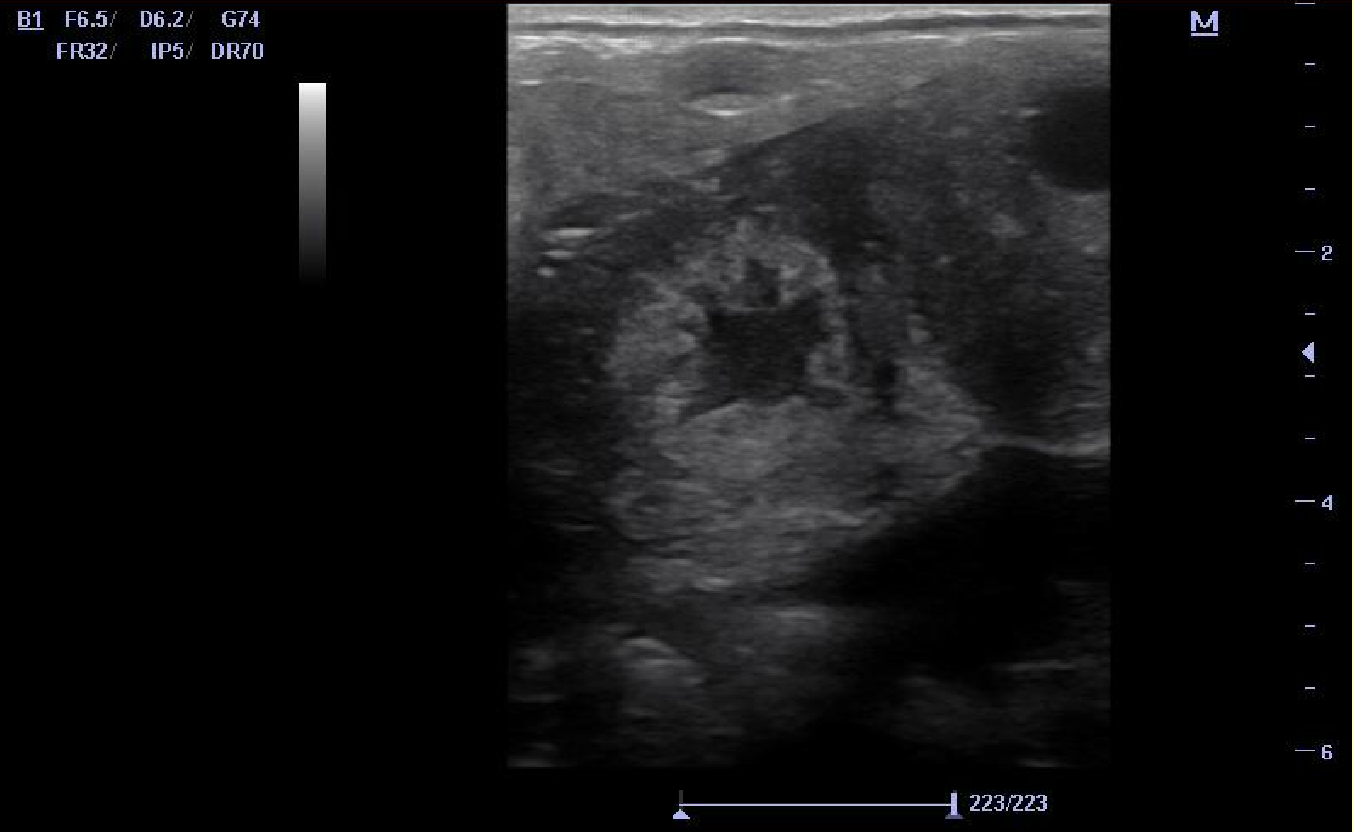

• same follicle 4 days later - luteinised follicle functioning as CL


•

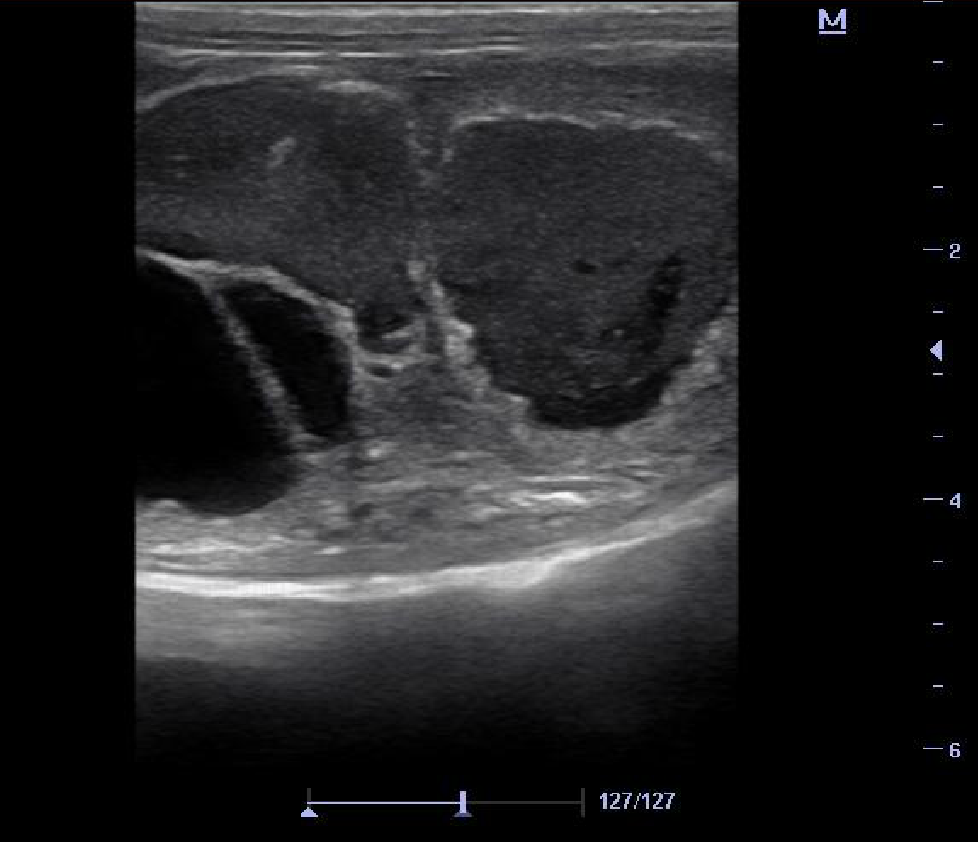

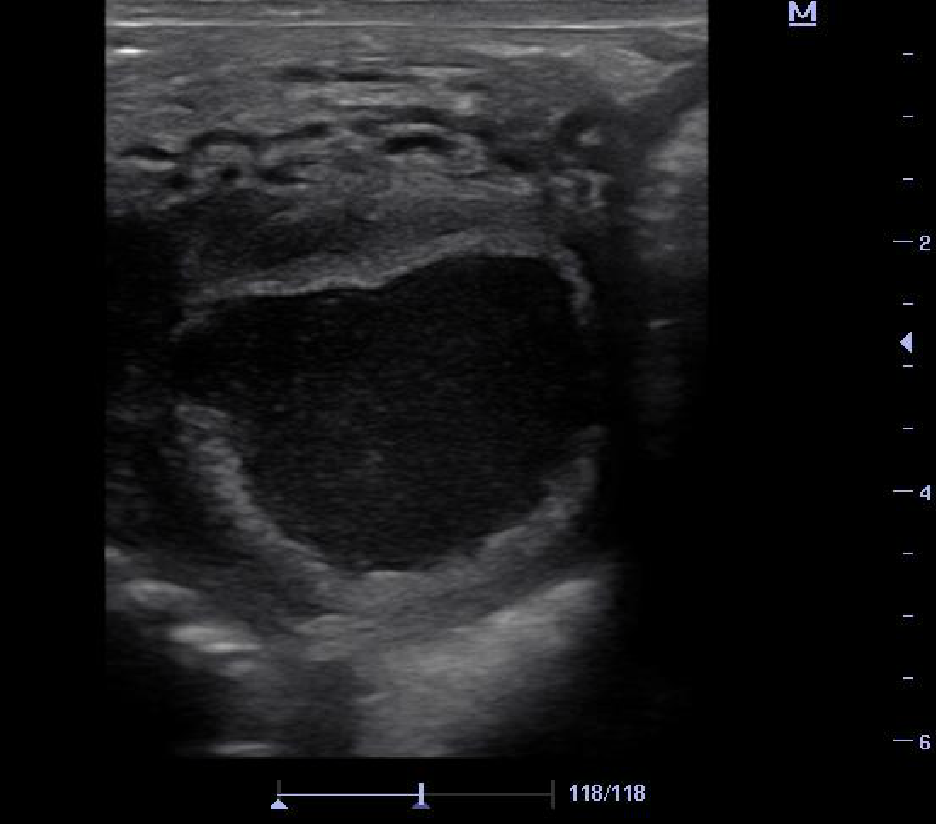

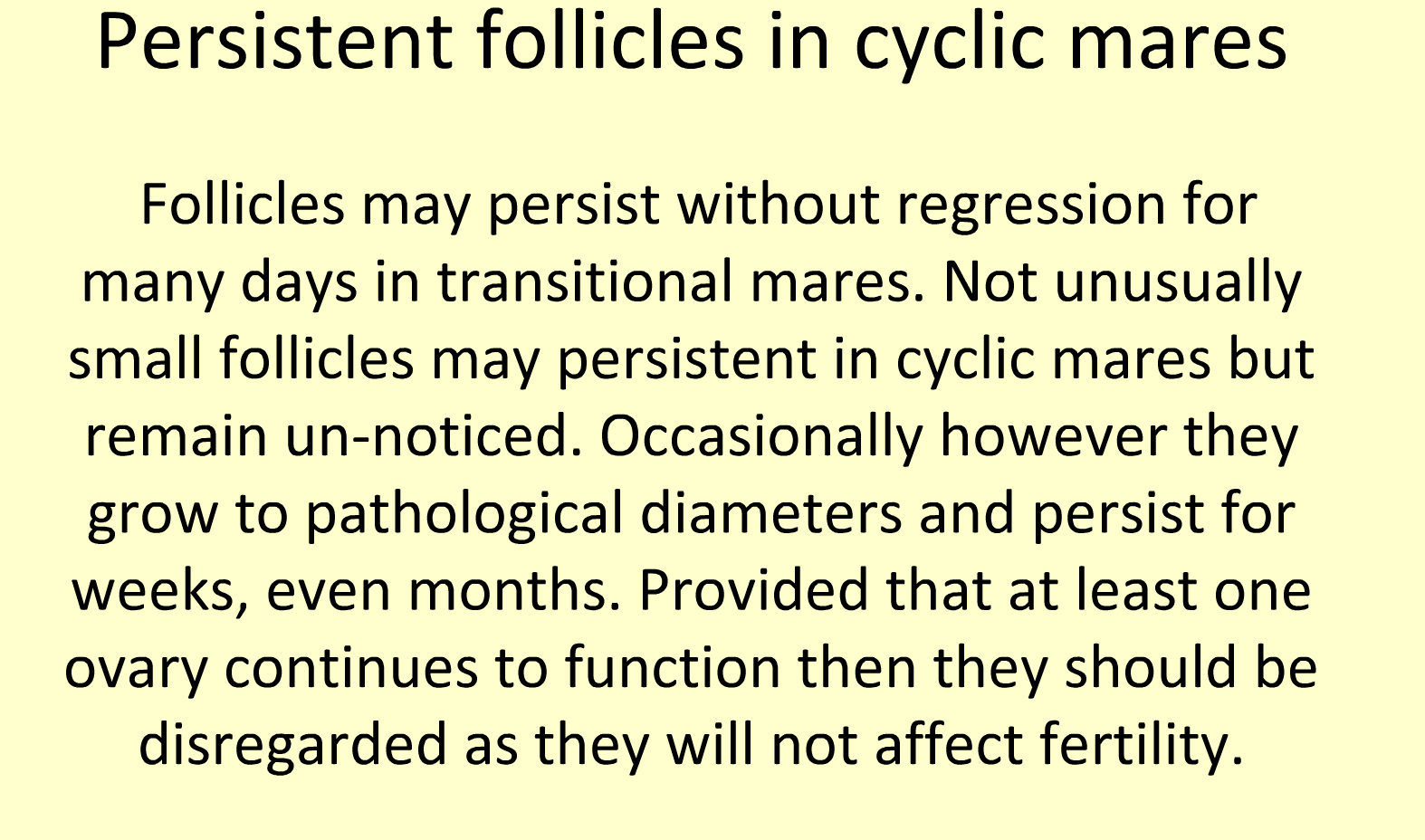

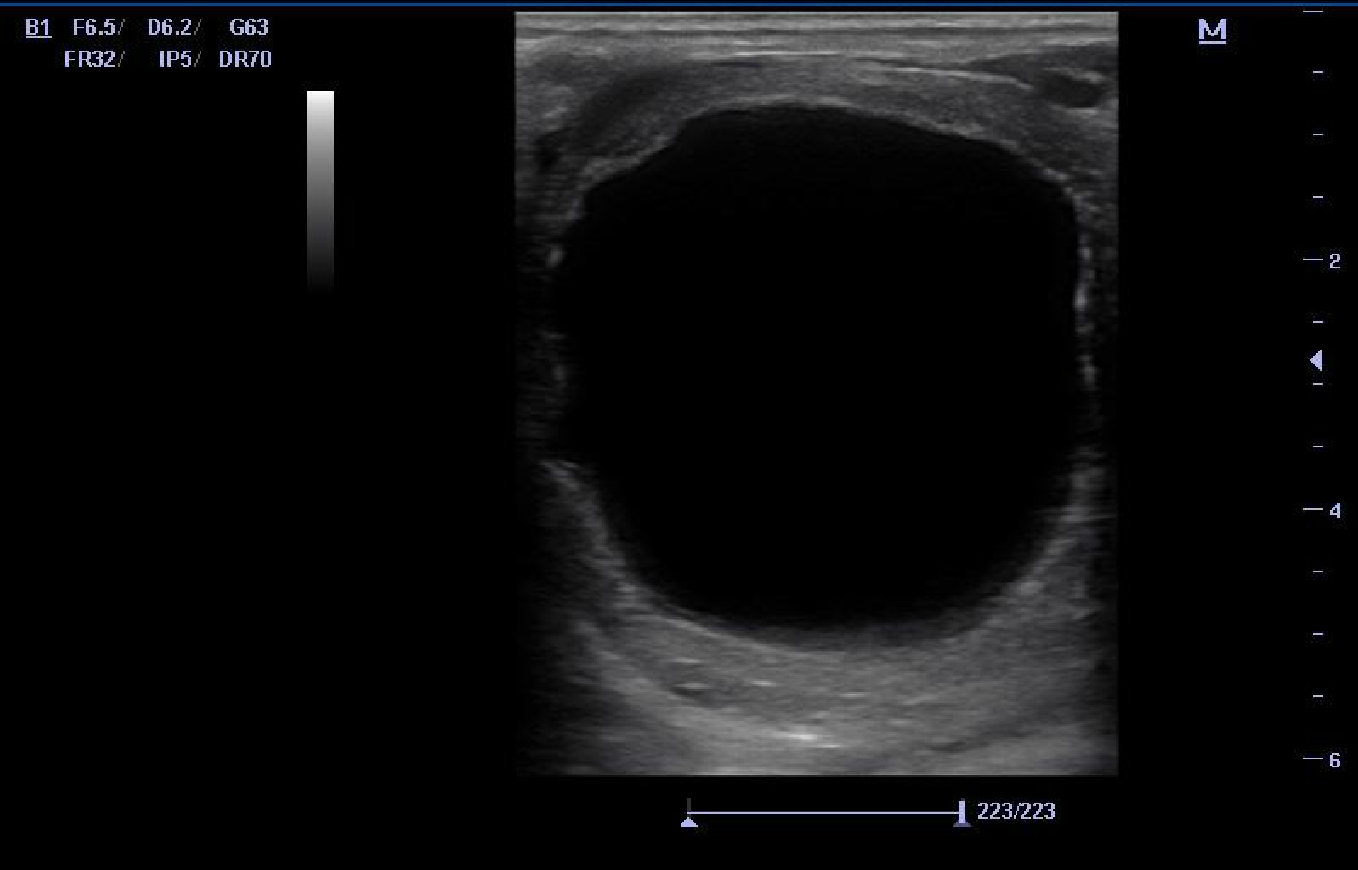

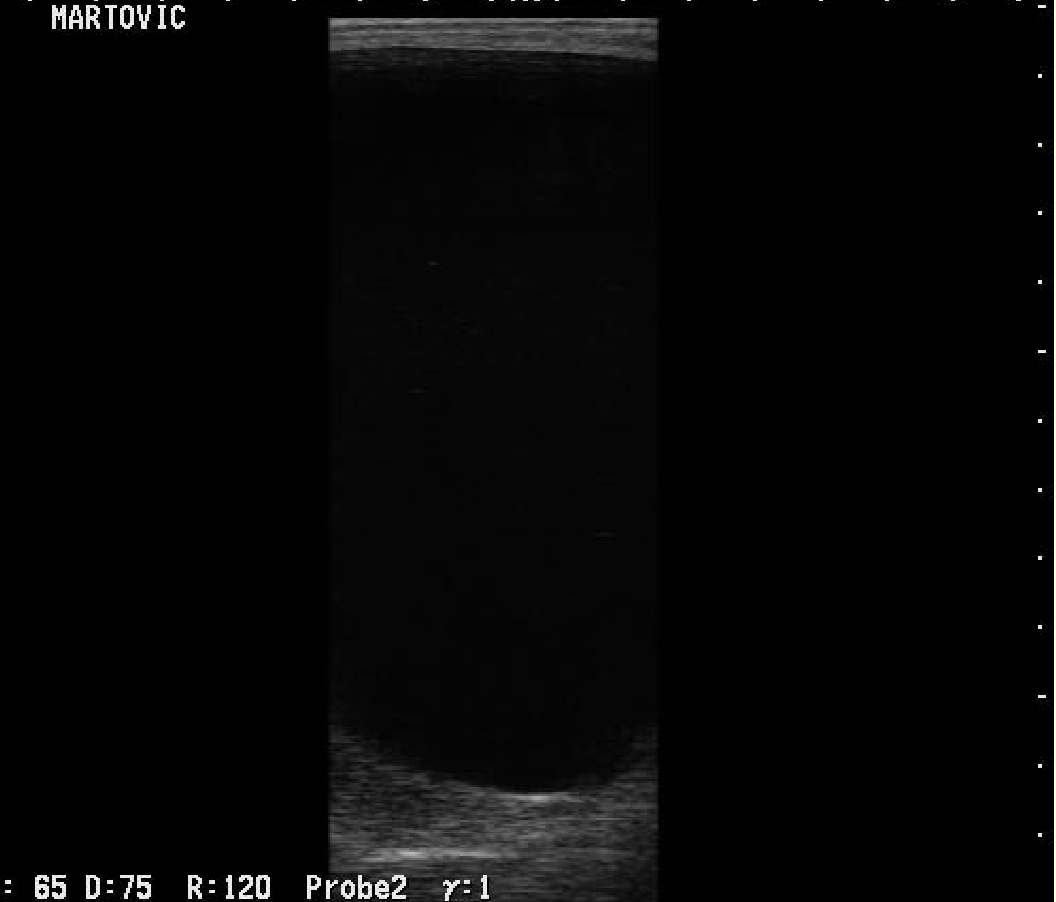

• Persistent 100 mm follicle


•

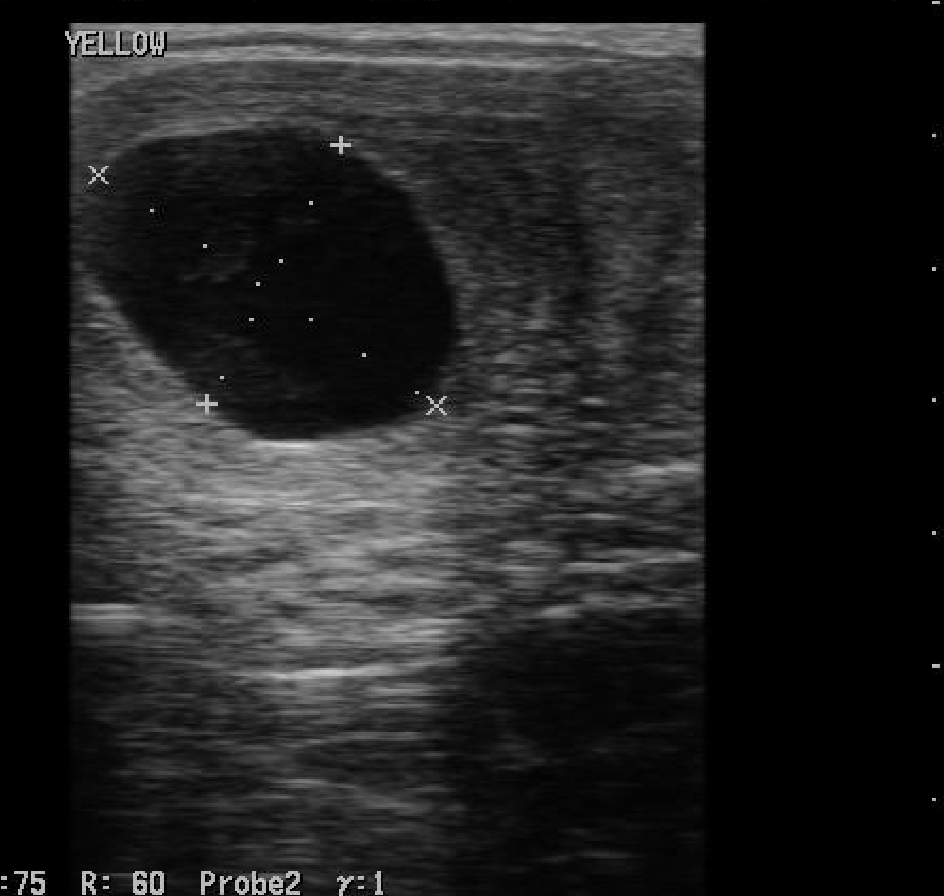

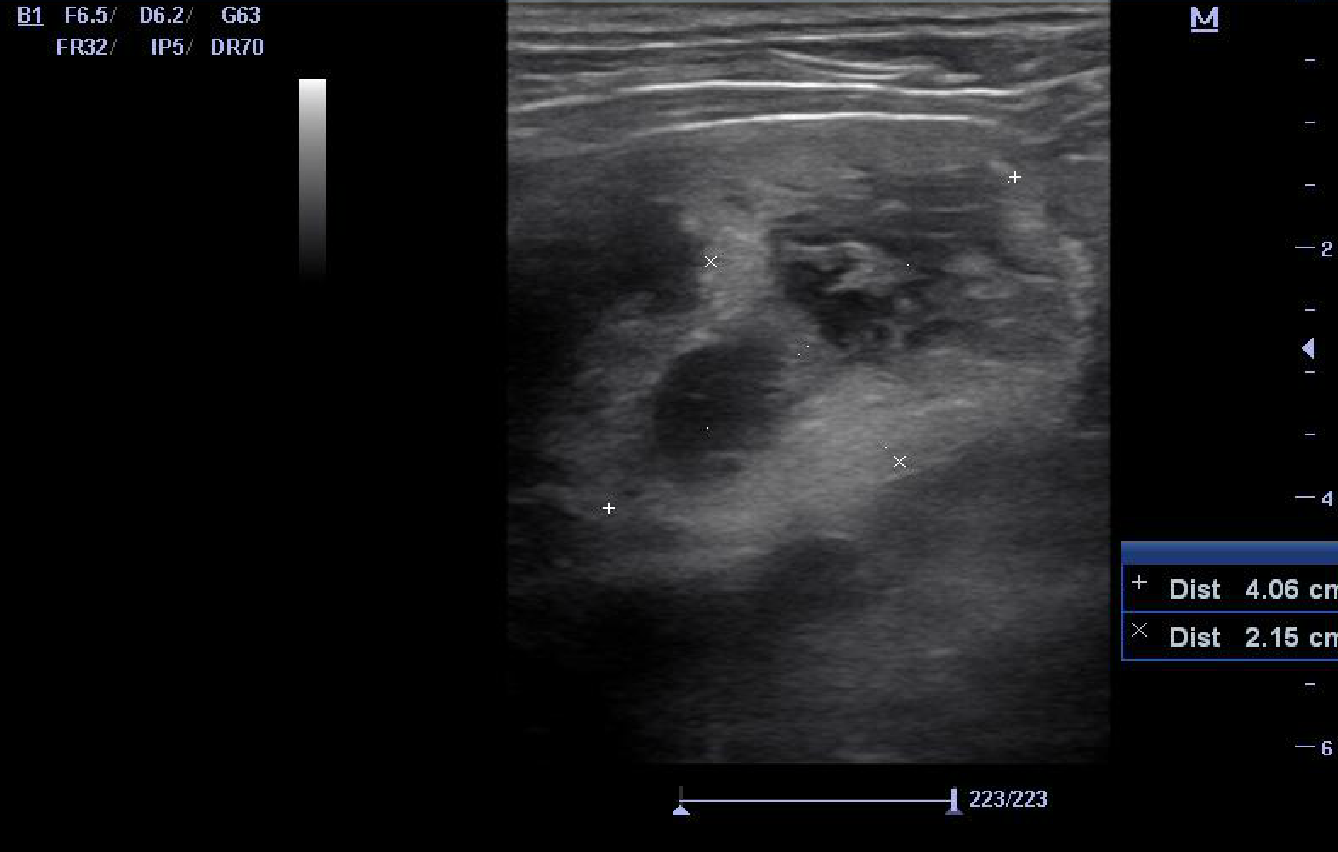

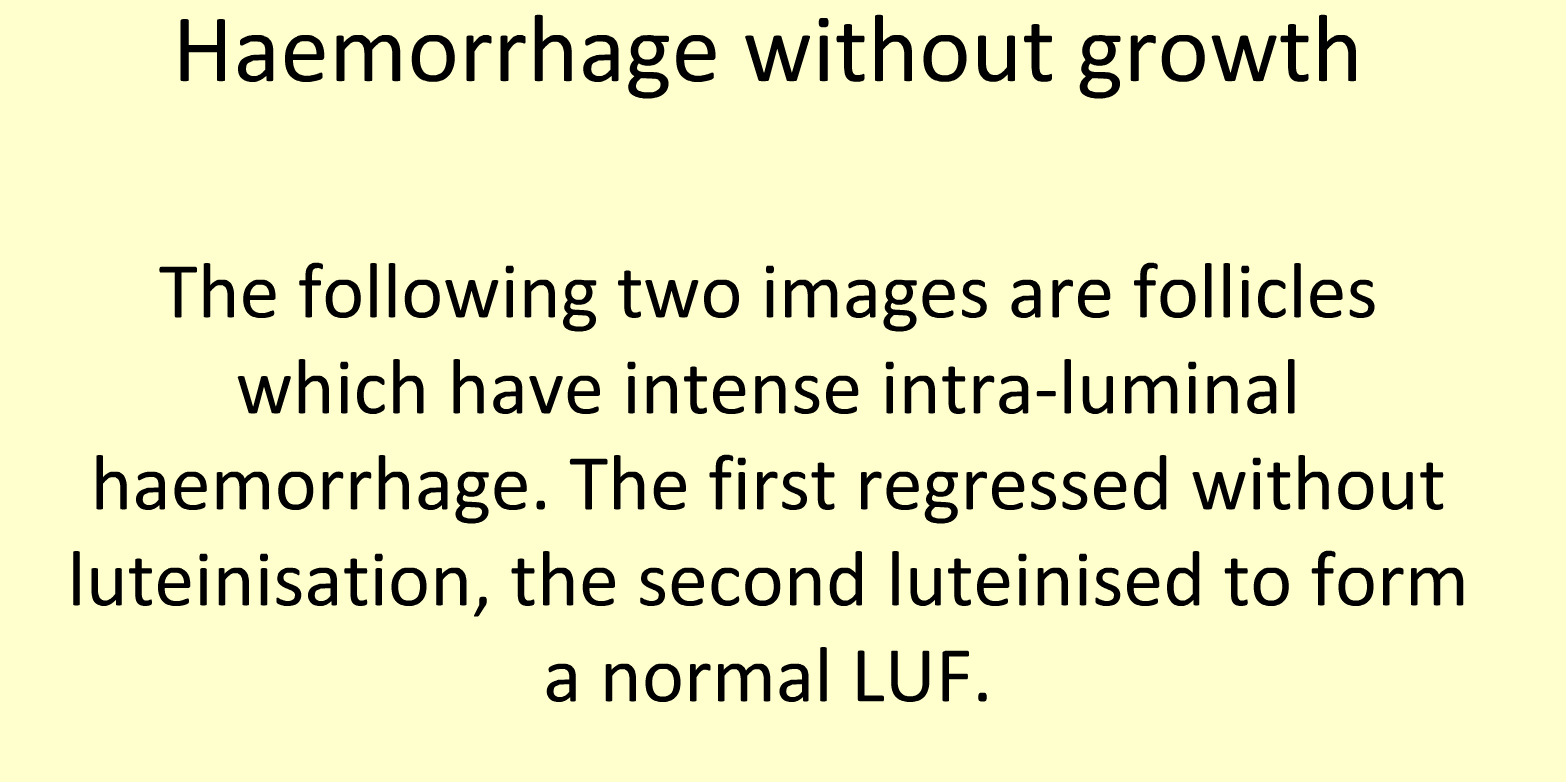

• Haemorrhage within a 20mm follicle, did not luteinise
  post??????

• Follicular haemorrhage - luteinised without further growth

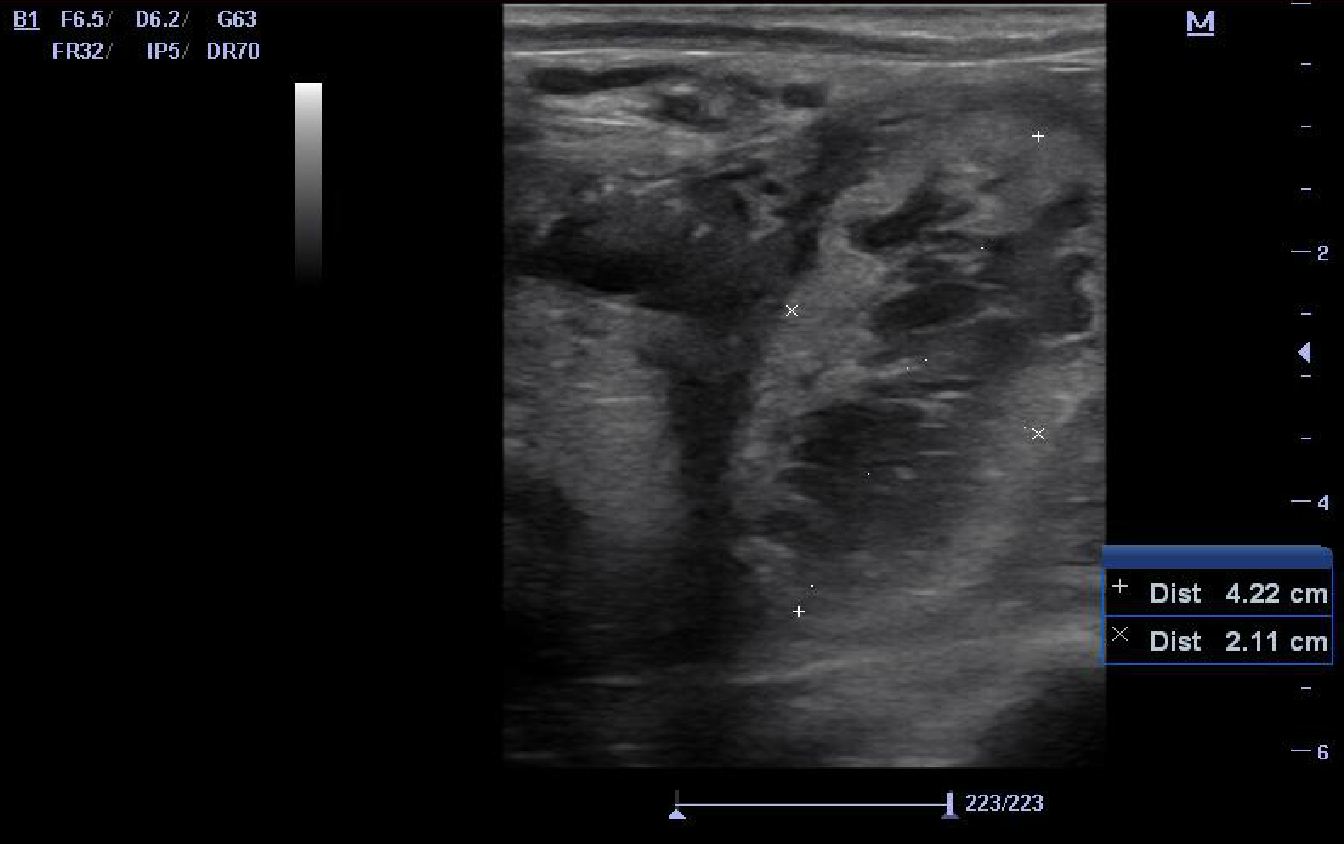

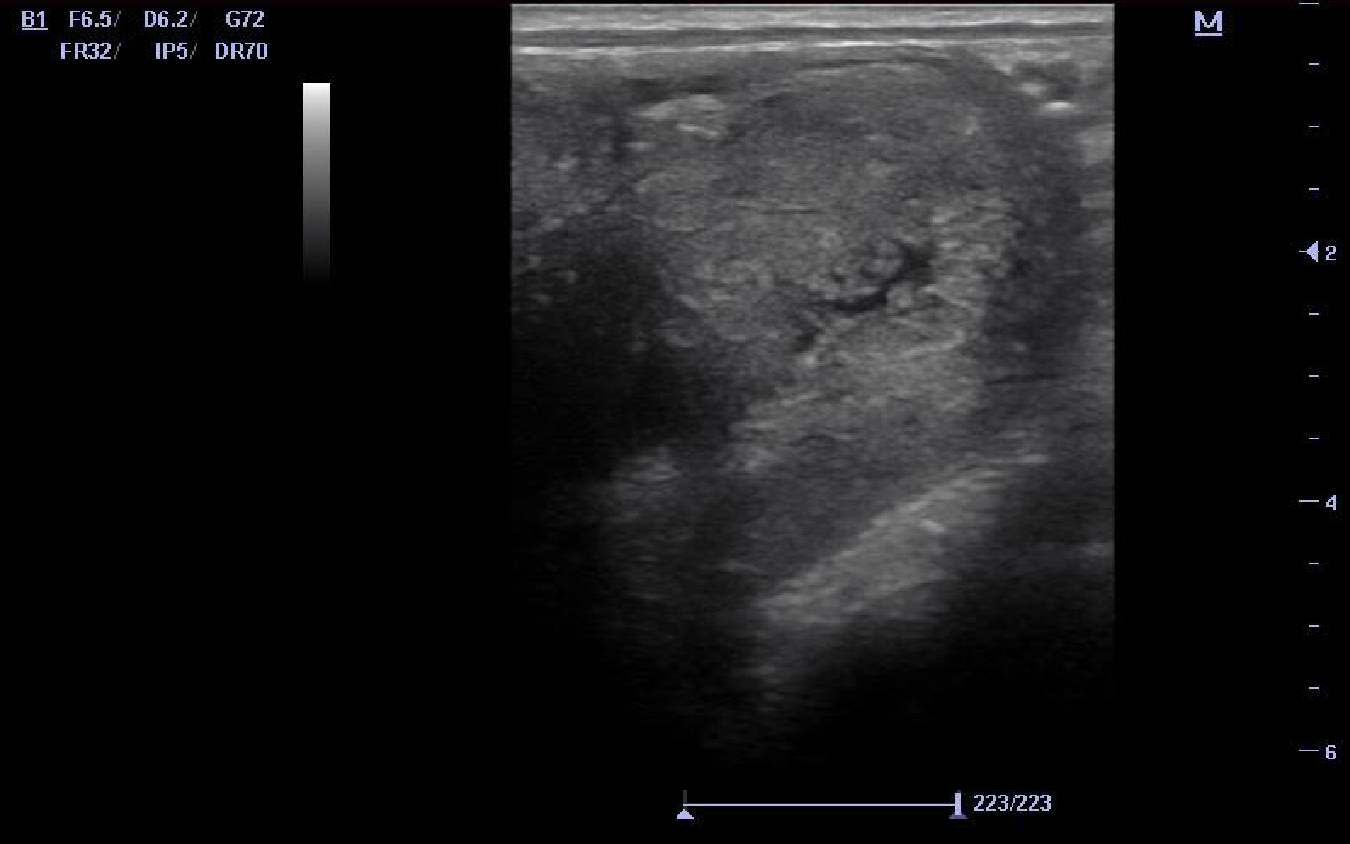

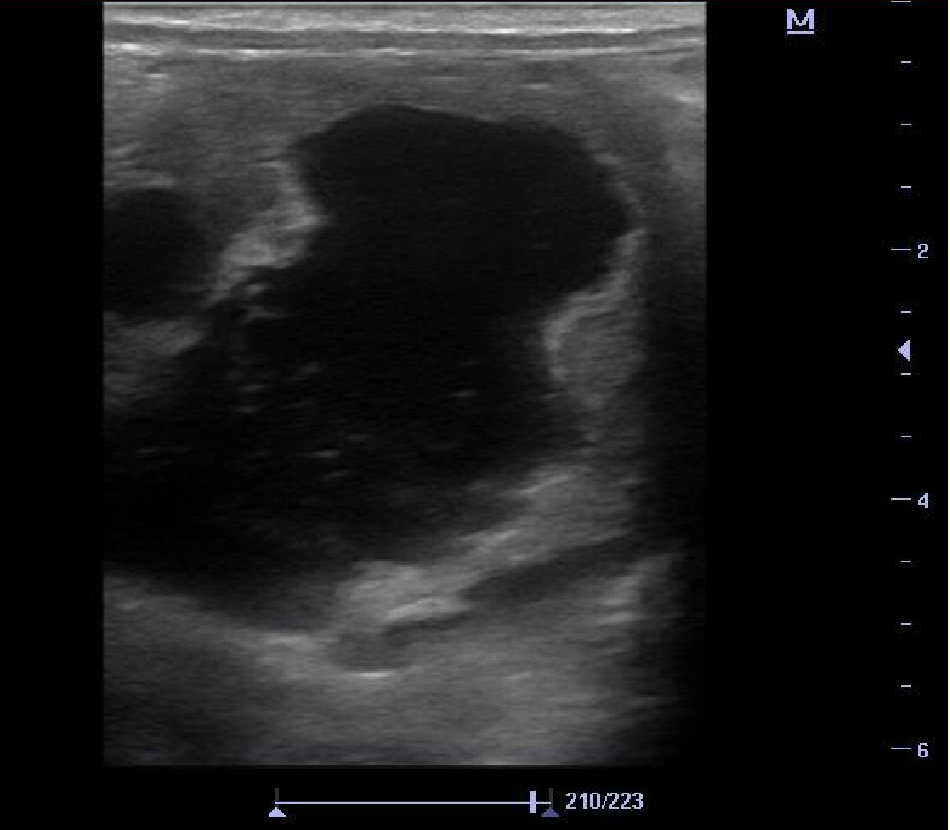

• What is this?



•

• Varicose? Veins on ovarian surface

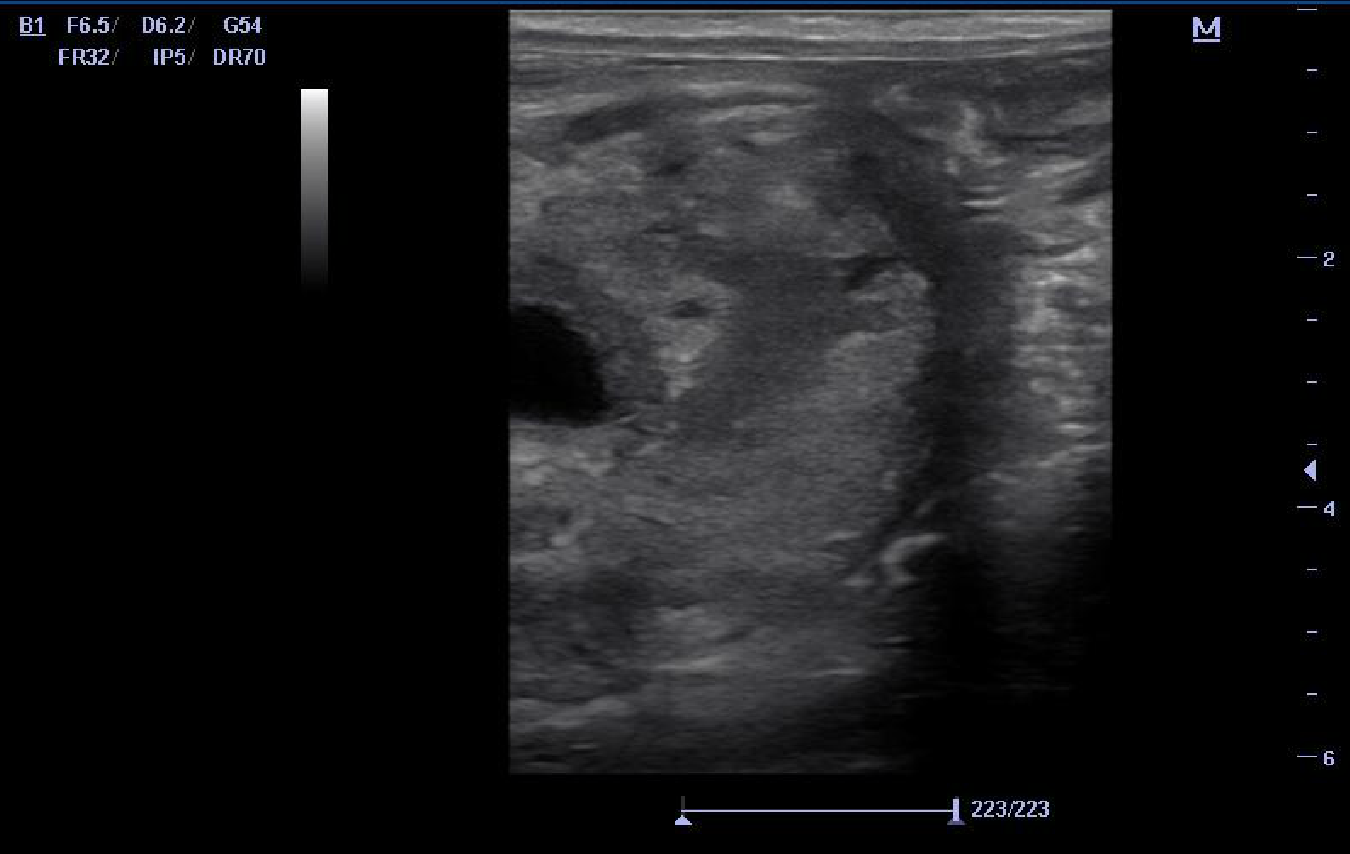

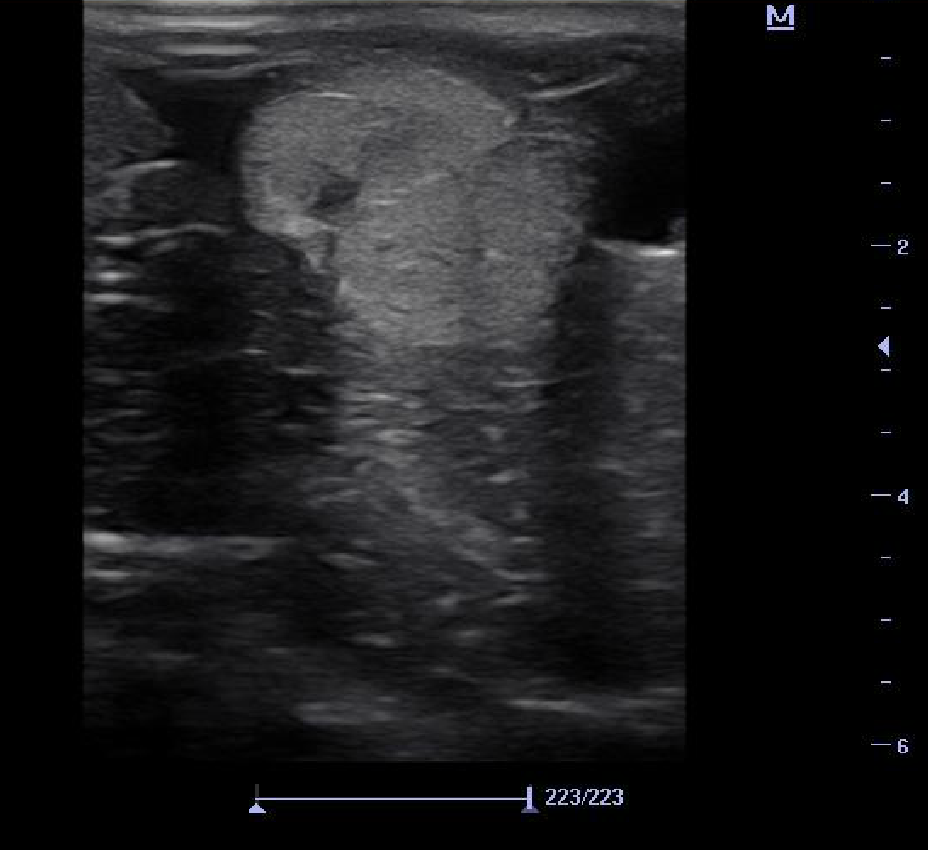

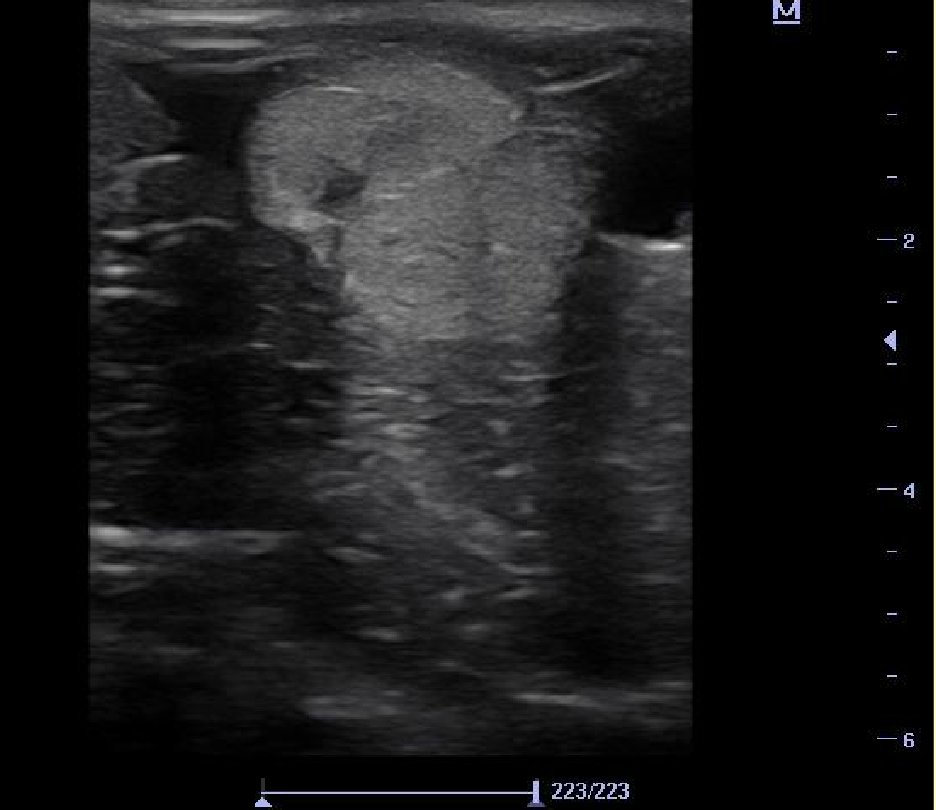

• Echodense structure: on LO of the same mare , recorded 4 years ago
